Digital Clamp Meter UNI-T UT207A

id: 822366
Digital Clamp Meter UNI-T UT207A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview

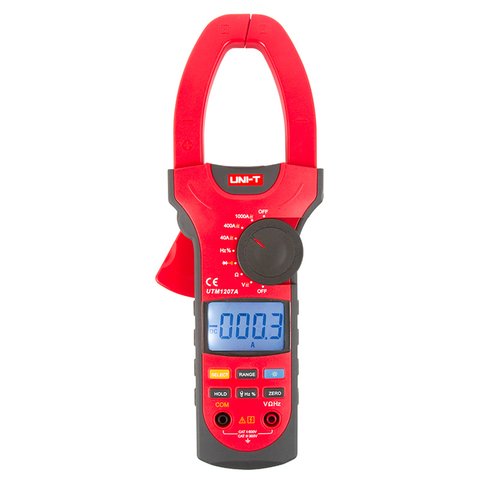

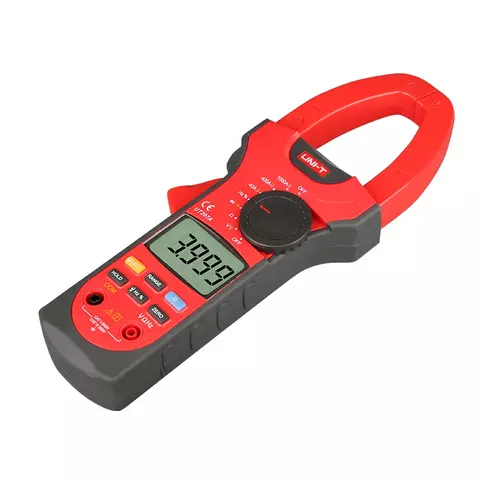

Digital Clamp Meter UNI T UT207A
Brand: UNI-T
2.85 kg Warranty: 24 months
The clamp multimeter measures AC/DC voltage and current, resistance, frequency, duty cycle, temperature, and performes diode check and continuity test.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter Accta AT 1000A
Bestseller
New
Add to wishlist
Digital Clamp Meter Accta AT-1000A
USD 39.96
Add to wishlist
Add to cart
Clamp meter used to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing. Jaw opening: 55 mm.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891580 0.9 kg
Digital Clamp Meter UNI T UT207B
Add to wishlist
Digital Clamp Meter UNI-T UT207B
USD 62.73
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing.
Availability in stock: HK
Shipping cost
ID: 898464 1 kg
Description

Digital clamp meter UNI-T UT207A is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT207A measures AC/DC voltage and current, resistance, frequency, duty cycle, temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.

Digital Clamp Meter UNI-T UT207A User Manuals

Download user manual for digital clamp meter UNI-T UT207A

Digital Clamp Meter UNI-T UT207A Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Temperature
    • Diode check
    • Continuity test
    • Duty cycle
    • Frequency
  • Auto ranging
  • Data hold function
  • Sleep mode
  • Low battery display
  • Display backlight
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design

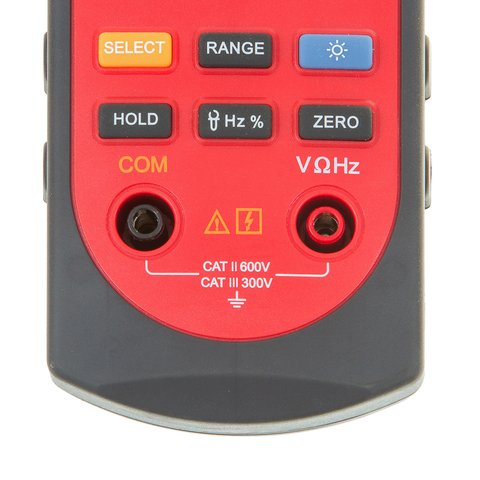

  • Compliance with safety requirements IEC 61010 CAT II 600 V, CAT III 300 V

Digital Clamp Meter UNI-T UT203 and UT207A Comparative Specifications

Model UT203 UT207A
Display LED, max. 3999 digits
36 × 18 mm		 LED, max. 3999 digits
47 × 30 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 600 V 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
AC voltage Range 4 V / 40 V / 400 V / 600 V 400 mV / 4 V / 40 V / 400 V / 750 V
Accuracy ±(1%+5) ±(1.2%+3)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
DC current Range 40 A / 400 A 40 A / 400 A / 1000 A
Accuracy ±(2%+3) ±(1.5%+5)
Overload protection 400 A DC/AC 1000 A DC/AC
AC current Range 40 A / 400 A 40 A / 400 A / 1000 A
Accuracy ±(2.5%+5) ±(2%+2)
Overload protection 400 A DC/AC 1000 A DC/AC
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Duty cycle 0.1%~99.9%
Frequency Range 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz
Accuracy ±(0.1%+3)
Temperature – -40ºC ~ 1000ºC
Power supply 6F22 battery (9 V)
Dimensions, mm 208 × 76 × 30 285.3 × 105 × 44.5
Weight, g 260 533

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Digital Clamp Meter UNI-T UT207A Package

  • Clamp meter UNI-T UT207A (1 pc.)
  • Test lead (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Read more
Description

Digital clamp meter UNI-T UT207A is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT207A measures AC/DC voltage and current, resistance, frequency, duty cycle, temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.

Digital Clamp Meter UNI-T UT207A User Manuals

Download user manual for digital clamp meter UNI-T UT207A

Digital Clamp Meter UNI-T UT207A Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Temperature
    • Diode check
    • Continuity test
    • Duty cycle
    • Frequency
  • Auto ranging
  • Data hold function
  • Sleep mode
  • Low battery display
  • Display backlight
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC 61010 CAT II 600 V, CAT III 300 V

Digital Clamp Meter UNI-T UT203 and UT207A Comparative Specifications

Model UT203 UT207A
Display LED, max. 3999 digits
36 × 18 mm		 LED, max. 3999 digits
47 × 30 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 600 V 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
AC voltage Range 4 V / 40 V / 400 V / 600 V 400 mV / 4 V / 40 V / 400 V / 750 V
Accuracy ±(1%+5) ±(1.2%+3)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
DC current Range 40 A / 400 A 40 A / 400 A / 1000 A
Accuracy ±(2%+3) ±(1.5%+5)
Overload protection 400 A DC/AC 1000 A DC/AC
AC current Range 40 A / 400 A 40 A / 400 A / 1000 A
Accuracy ±(2.5%+5) ±(2%+2)
Overload protection 400 A DC/AC 1000 A DC/AC
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Duty cycle 0.1%~99.9%
Frequency Range 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz
Accuracy ±(0.1%+3)
Temperature – -40ºC ~ 1000ºC
Power supply 6F22 battery (9 V)
Dimensions, mm 208 × 76 × 30 285.3 × 105 × 44.5
Weight, g 260 533

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Digital Clamp Meter UNI-T UT207A Package

  • Clamp meter UNI-T UT207A (1 pc.)
  • Test lead (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Digit Capacity
  • 3999
Type
  • for AC/DC
Jaw diameter
  • diameter 55 mm
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 10 MHz
Capacitance
  • does not measure the capacitance
Temperature
  • yes
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
DC
  • up to 1000 A
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • no
Video
Youtube video
Youtube video
