Digital Clamp Meter UNI-T UT208
id: 822367
Digital Clamp Meter UNI-T UT208
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Video
Video
Video
2.85 kg Warranty: 24 months
The clamp multimeter measures AC/DC voltage and current, in-rush starting current, resistance, frequency, duty cycle and temperature, also performing diode check and continuity test.
You may also like
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT208B
USD 83.92
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, temperature, duty cycle, continuity, and may be used for diode testing.
Bestseller
Availability in stock:
HK
ID: 898466 1 kg
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT207B
USD 62.73
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing.
Bestseller
Availability in stock:
HK
ID: 898464 1 kg
Bestseller
Add to wishlist
Digital Clamp Meter Accta AT-1000E
USD 41.77
Add to wishlist
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Bestseller
Availability in stock:
HK
ID: 891581 0.9 kg
Description

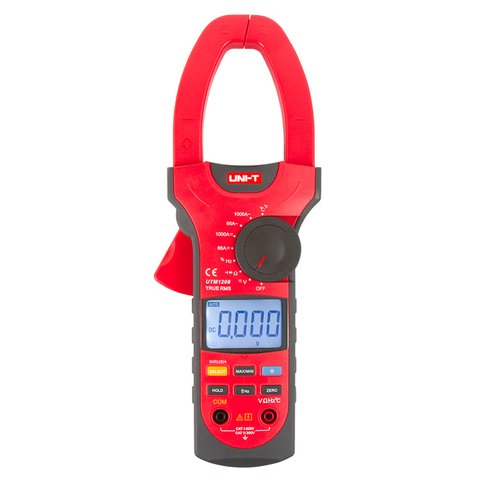

Digital clamp meter UNI-T UT208 is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT208 measures AC/DC voltage and current, in-rush starting currents, resistance, frequency, duty cycle and temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.
User Manuals
Read more
Description
Digital clamp meter UNI-T UT208 is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT208 measures AC/DC voltage and current, in-rush starting currents, resistance, frequency, duty cycle and temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.
User Manuals
Download user manual for digital clamp meter UNI-T UT208
Features
- Measuring functions:
- AC/DC voltage
- AC/DC current
- In-rush starting current
- Resistance
- Temperature
- Diode check
- Continuity test
- Duty cycle
- Frequency
- Temperature
- Auto ranging
- True RMS
- Data hold function
- Sleep mode
- Low battery display
- Full icon display
- Display backlight
- 55 mm maximum jaw diameter
- Measurement update speed 3 times/second
- Compact and comfortable design
- Compliance with safety requirements IEC61010-1; IEC61010-2-032 CAT II 600 V, CAT III 300 V
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Comparative Specifications
| Model | UT208 | UT209A | |
|---|---|---|---|
| Display | LED, max. 6666 digits 47 × 30 mm |
LED, max. 4000 digits 47 × 30 mm |
|
| DC voltage | Range | 6.6 V / 66 V / 600 V | 400 mV / 4 V / 40 V / 400 V / 1000 V |
| Accuracy | ±(0.8%+1) | ±(1.2%+3) | |
| Input impedance | 10 MΩ | ||
| Overload protection | 600 V rms | DC 1000 V / AC 750 V rms | |
| AC voltage | Range | 6.6 V / 66 V / 600 V | 400 mV / 4 V / 40 V / 400 V / 750 V |
| Accuracy | ±(1.2%+5) | ±(1.5%+5) | |
| Input impedance | 10 MΩ | ||
| Overload protection | 600 V rms | DC 1000 V / AC 750 V rms | |
| DC current | Range | 66 A / 1000 A | 40 A / 400 A / 1000 A |
| Accuracy | ±(1.5%+8) | ±(1.5%+5) | |
| Overload protection | 400 A DC/AC | 1000 A DC/AC | |
| AC current | Range | 66 A / 1000 A | 40 A / 400 A / 1000 A |
| Accuracy | ±(2%+8) | ±(2%+2) | |
| Overload protection | 400 A DC/AC | 1000 A DC/AC | |
| Resistance | Range | 660 Ω / 6,6 kΩ / 66 kΩ / 660 kΩ / 6,6 MΩ / 66 MΩ | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
| Accuracy | ±(1%+2) | ||
| Duty cycle | 0.1%~99.9% | ||
| Temperature, ºC | -40ºC ~ 1000ºC | – | |
| Frequency | Range | 660 Hz / 6,6 kHz / 66 kHz / 660 kHz / 6,6 MHz / 66 MHz | 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz |
| Accuracy | ±(0.1%+3) | ||
| Power supply | alakline battery 1604A or 6LF22 (9 V) | ||
| Dimensions, mm | 285.3 × 105 × 44.5 | ||
| Weight | 533 | ||
Video

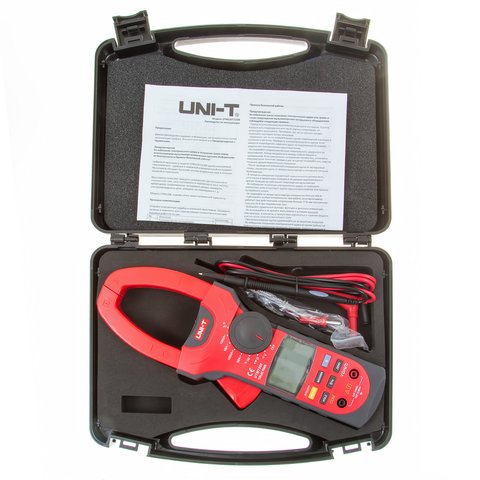

Package
- Clamp meter UNI-T UT208 (1 pc.)
- Test lead (1 pc.)
- Point contact temperature probe (1 pc.)
- Tool box (1 pc.)
- User manual (1 pc.)
Note! Batteries are not included in the package.
