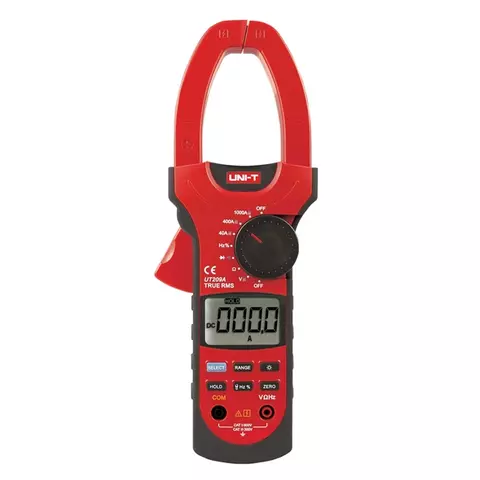

Digital Clamp Meter UNI-T UT209A

id: 822368
Digital Clamp Meter UNI-T UT209A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
1.4 kg Warranty: 24 months
The clamp multimeter measures AC/DC voltage and current, resistance, frequency, duty cycle, also performing diode check and continuity test.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter Accta AT 1000E
Bestseller
Add to wishlist
Digital Clamp Meter Accta AT-1000E
USD 51.00
Add to wishlist
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 891581 0.9 kg
Digital Clamp Meter UNI T UT207B
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT207B
USD 62.73
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898464 1 kg
Digital Clamp Meter Accta AT 1000A
Bestseller
New
Add to wishlist
Digital Clamp Meter Accta AT-1000A
USD 42.00
Add to wishlist
Add to cart
Clamp meter used to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing. Jaw opening: 55 mm.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891580 0.9 kg
Digital Clamp Meter UNI T UT208B
Add to wishlist
Digital Clamp Meter UNI-T UT208B
USD 83.92
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, temperature, duty cycle, continuity, and may be used for diode testing.
Availability in stock: HK
Shipping cost
ID: 898466 1 kg
Description

Digital clamp meter UNI-T UT209A is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT209A measures AC/DC voltage and current, resistance, frequency, duty cycle, also performing diode check and continuity test. This digital clamp meter has overload protection.

Digital Clamp Meter UNI-T UT209A User Manuals

Read more
Description

Digital clamp meter UNI-T UT209A is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT209A measures AC/DC voltage and current, resistance, frequency, duty cycle, also performing diode check and continuity test. This digital clamp meter has overload protection.

Digital Clamp Meter UNI-T UT209A User Manuals

Download user manual for digital clamp meter UNI-T UT209A

Digital Clamp Meter UNI-T UT209A Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Diode check
    • Continuity test
    • Duty cycle
    • Frequency
  • Auto ranging
  • True RMS
  • Data hold function
  • Sleep mode
  • Low battery display
  • Display backlight
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC 61010 CAT II 600 V, CAT III 300 V

Digital Clamp Meter UNI-T UT208 and UT209A Comparative Specifications

Model UT208 UT209A
Display LED, max. 6666 digits
47 × 30 mm
LED, max. 4000 digits
47 × 30 mm
DC voltage Range 6.6 V / 66 V / 600 V 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1) ±(1.2%+3)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
AC voltage Range 6.6 V / 66 V / 600 V 400 mV / 4 V / 40 V / 400 V / 750 V
Accuracy ±(1.2%+5) ±(1.5%+5)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
DC current Range 66 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(1.5%+8) ±(1.5%+5)
Overload protection 400 A DC/AC 1000 A DC/AC
AC current Range 66 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(2%+8) ±(2%+2)
Overload protection 400 A DC/AC 1000 A DC/AC
Resistance Range 660 Ω / 6,6 kΩ / 66 kΩ / 660 kΩ / 6,6 MΩ / 66 MΩ 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Duty cycle 0.1%~99.9%
Frequency Range 660 Hz / 6,6 kHz / 66 kHz / 660 kHz / 6,6 MHz / 66 MHz 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz
Accuracy ±(0.1%+3)
Power supply alakline battery 1604A or 6LF22 (9 V)
Dimensions, mm 285.3 × 105 × 44.5
Weight 533

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Digital Clamp Meter UNI-T UT209A Package

  • Clamp meter UNI-T UT209A (1 pc.)
  • Test lead (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • RMS measurement
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
Type
  • for AC/DC
Jaw diameter
  • diameter 55 mm
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 10 MHz
Capacitance
  • does not measure the capacitance
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • yes
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
DC
  • up to 1000 A
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • no
