Digital Multimeter Accta AT-205
id: 890292
Digital Multimeter Accta AT-205
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 9.63
Overview
Video
Video
Video
New
0.4 kg Warranty: 12 months
True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency and resistance. May be used to perform diode and continuity tests. Read more
USD 9.63
Buy wholesale and save
Description
Accta AT-205 is a True RMS digital multimeter used to measure AC/DC voltage, AC/DC current, capacitance, frequency, and resistance, and also to perform diode and continuity tests. The multimeter is equipped with a large 1999-bit display and features high reliability and safety.
Features
- Measurement functions:
- AC/DC voltage;
- AC/DC current;
- capacitance;
- resistance;
- frequency;
- diode testing;
- continuity test.
- Large 1999 digit LCD.
- Overload protection.
- Auto power off.
- Data HOLD mode.
- LCD backlight.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0,5% + 3) |
| 600 V | ±(1,0% + 10) | |
| AC Voltage | 2 V / 200 V | ±(0,8% + 5) |
| 600 V | ±(1,2% + 10) | |
| DC Current | 20 mA / 200 mA | ±(1,2% + 8) |
| 10 A | ±(2,0% + 5) | |
| AC Current | 200 mA | ±(1,5% + 15) |
| 10 A | ±(3,0% + 10) | |
| Resistance | 200 Ω | ±(0,8% + 5) |
| 20 kΩ / 200 kΩ | ±(0,8% + 3) | |
| 20 MΩ | ±(1,0% + 25) | |
| Capacitance | 20 nF / 200 nF / 2 μF | ±(3,5% + 20) |
| 20 μF / 200 μF / 2000 μF | ±(5,0% + 10) | |
| Frequency | 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 2 MHz | ±(0,5% + 10) |
| General Specifications | ||
| Power | AAA battery × 2 pcs. | |
| Input impedance | 10 MΩ | |
| Sampling rate | 3 times/s | |
| Working temperature | 0..40°C (humidity less than 80%) | |
| Display | 1999 max, LCD | |
| Dimensions | 150 × 73,5 × 35 mm | |
| Weight | 156 g | |

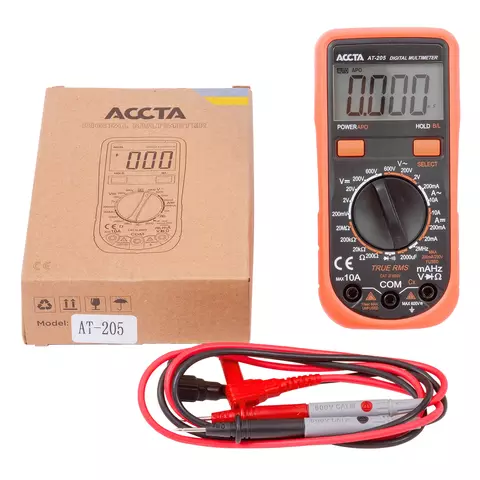

Package Contents
- Digital Multimeter Accta AT-205 — 1 pc.
- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Frequency |
|
| Capacitance |
|
| NCV |
|
| Battery Testing |
|
