Digital Multimeter Accta AT-205A
id: 910797
Digital Multimeter Accta AT-205A
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
0.3 kg Warranty: 12 months
Professional 5,999 display count, 600 V/10 A True RMS portable digital multimeter with advanced measurement features Read more
Price coming soon
Description

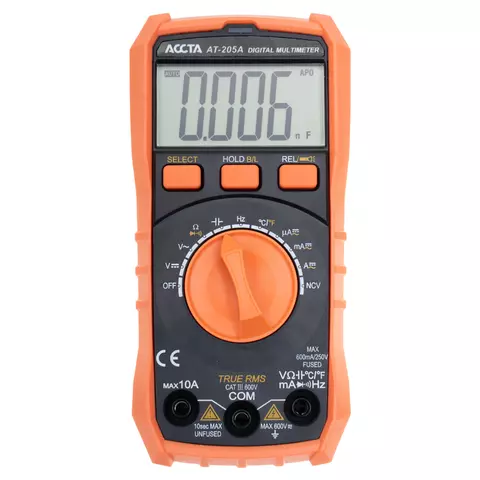

Accta AT-205A is a high-performance multipurpose industrial handheld True RMS digital 600 V/10 A multimeter with an automatic range selection and non-contact voltage detection (NCV) functions and a 5999-count large LCD display. This handy multimeter features an expanded set of measurement functions and can measure direct voltage current (DCV), alternating current voltage (ACV), direct current amperage (DCA), alternating current amperage (ACA), resistance, capacitance, frequency, and temperature and perform diode and continuity testing.
Features
- High-precision True RMS measurements
- Multiple functions, options, and settings
- Relative value function
- Data retention
- Intelligent anti-burn feature with a built-in safety tube protection device and an overload circuit for safer operation
- Backlit display and flashlight lighting
- Automatic shutdown
- Low-level battery indication
- Celsius/Fahrenheit conversion
- Convenient and intuitive front-panel test lead jack design for good contact and quick measurements
- Special pen on the backside for convenient storage and transportation of test leads
- Bracket design enabling convenient placement, easy data reading, and effortless operation
- Pocket-sized and lightweight
Specifications
| Technical Specifications | |||||
|---|---|---|---|---|---|
| 201 | 202 | 203 | 205A | ||
| Measurements | Range | Precision | |||
| DC voltage | 200 mV | 200 mV | 200 mV | 600 mV | ±(0.5%+5) |
| 2 V/20 V/200 V | 2 V/20 V/200 V | 2 V/20 V/200 V | 6 V/60 V | ±(0.5%+3) | |
| 600 V | 600 V | 600 V | 600 V | ±(1%+10) | |
| AC voltage | 200 V/600 V | 200 V/600 V | 200 V/600 V | 6 V/60 V/600 V | ±(1.2%+10) |
| DC current | 200 μA | 200 μA | 200 μA | 600 μA/6000 μA | ±(1%+10) |
| 200 mA | 200 mA | 200 mA | 60 mA/600 mA | ±(1.2%+8) | |
| 10 A | 10 A | 10 A | 6 A/10 A | ±(2%+5) | |
| AC current | 600 μA/6000 μA | ±(1%+10) | |||
| 60 mA/600 mA | ±(1.5%+15) | ||||
| 6 A/10 A | ±(3%+10) | ||||
| Resistance | 200 Ω | 200 Ω | 200 Ω | 600 Ω | ±(0.8%+5) |
| 2 kΩ/20 kΩ/200 kΩ | 2 kΩ/20 kΩ/200 kΩ | 2 kΩ/20 kΩ/200 kΩ | 6 kΩ/60 kΩ/600 kΩ | ±(0.8%+3) | |
| 2 MΩ | 2 MΩ | 20 MΩ | 6 MΩ/60 MΩ | ±(1%+5) | |
| 200 MΩ | ±(5%+30) | ||||
| Capacitance | 200 μF | 10 nF | ±(5%+40) | ||
| 100 nF/1 μF/10 μF/100 μF/200 μF | ±(3.5%+20) | ||||
| 2 mF | ±(5%+40) | ||||
| Frequency | 20 kHz | 10 Hz/100 Hz/1kHz | ±(5%+10) | ||
| 10 kHz/20 kHz/100 kHz/2 MHz | ±(1%+10) | ||||
| Temperature | -20 to 1000°C | -20 to 1000°C | ±(1%+5) | Product Specifications | |
| Display count | 5999, auto polarity display | ||||
| Operating temperature | 0 to 40°C | ||||
| Sampling rate | 3 times/sec | ||||
| Power supply | 2 AAA 1.5 V LR03 batteries | ||||
| Size | 146 × 72 × 50 mm | ||||
| Weight | 230 g (with batteries) | ||||
Package Contents
- Accta AT-205A multimeter — 1 pc.
- Type-K thermocouple probe — 1 pc.
- Test leads — 1 pair
- User manual — 1 pc.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Temperature |
|
| Power |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Frequency |
|
| Capacitance |
|
| NCV |
|
| Battery Testing |
|
