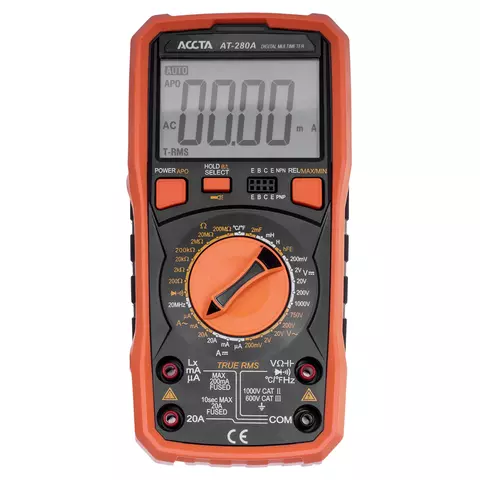

Digital Multimeter Accta AT-280A
id: 910798
Digital Multimeter Accta AT-280A
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
0.4 kg Warranty: 12 months
1999-count True RMS digital capacitance multimeter measuring capacitance up to 2000 µF, frequency up to 10 MHz, with advanced measurement features Read more
Price coming soon
Description
Accta AT-280A is a convenient high-precision True RMS digital multimeter capacimeter with manual range selection that can measure direct voltage current (DCV), alternating current voltage (ACV), direct current amperage (DCA), alternating current amperage (ACA), resistance, capacitance up to 2000 µF, inductance, temperature, and frequency up to 10 MHz, and perform and diode, triode and continuity tests.
Features
- High-precision True RMS measurements
- A dual-integral A/D converter
- Data hold
- Intelligent anti-burn feature with a built-in safety tube protection device and an overload circuit for safer operation
- Backlit display and flashlight lighting
- Low-level battery indication with automatic shutdown to save battery charge
- Celsius/Fahrenheit conversion
- Convenient and intuitive front-panel test lead jack design for good contact and quick measurements
- Shockproof cover and impact-resistant design
- Comfortable measuring knob with multiple gear display
- Bracket design enabling convenient placement, easy data reading, and effortless operation
- Special pen on the backside for convenient storage and transportation of test leads
- Pocket-sized and lightweight
Specifications
| Technical Specifications | ||
|---|---|---|
| Function | Range | Precision |
| DC voltage | 200 mV / 2 V / 20 V / 200 V | ±(0.5%+3) |
| 1000 V | ±(0.8%+10) | |
| AC voltage | 200 mV | ±(0.8%+5) |
| 2 / 20 / 200 V | ±(0.8%+5) | |
| 1000 V | ±(1.2%+10) | |
| DC current | 200 μA / 2 mA / 20 mA | ±(0.8%+10) |
| 200 mA | ±(0.8%+10) | |
| 20 A | ±(2%+5) | |
| AC current | 200 μA / 2 mA / 20 mA | ±(0.8%+10) |
| 200 mA | ±(0.8%+10) | |
| 20 A | ±(2%+5) | |
| Resistance | 200 Ω | ±(0.8%+5) |
| 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ | ±(0.8%+3) | |
| 20 MΩ | ±(1%+25) | |
| 200 MΩ | ±(5%+30) | |
| Inductance | 2 mH / 20 mH / 200 mH / 2 H | ±(2.5%+30) |
| 20 H | ±(2%+5) | |
| Capacitance | 20 nF / 200 nF / 2 μF / 20 μF / 200 μF | ±(3.5%+20) |
| 2 mF | ±(5%+10) | |
| Frequency | 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 20 MHz | ±(1%+3) |
| Temperature | -20 to 1000°C | ±(1%+5) | Product Specifications |
| Display count | 1999, auto polarity indication | |
| Input impedance | 10 MΩ | |
| AC frequency response | 40 — 1000 Hz | |
| Display size | 70 × 50 mm | |
| Operating temperature | 0 to 40°C | |
| Sampling rate | 3 times/sec | |
| Power supply | 4 × AAA 1.5 V LR03 batteries | |
| Size | 186 × 92 × 52 mm | |
| Weight | 395 g (with batteries) | |
Package Contents
- Accta AT-280A multimeter — 1 pc.
- Temperature test leads — 1 pair
- Test leads — 1 pair
- 1.5V AAA battery — 4 pcs.
- User manual — 1 pc.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Frequency |
|
| Capacitance |
|
| NCV |
|
| Battery Testing |
|
