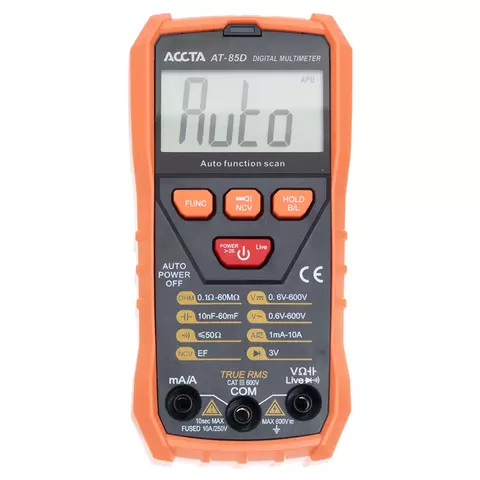

Digital Multimeter Accta AT-85D
sales team
Accta AT-85D is a multi-purpose digital multimeter with a complete intelligent automatic function and range recognition features that allow for an automatical identification of functions and ranges depending on input measurement signals, making measurement operations easier, faster, and more efficient. Accta AT-85D can measure direct current voltage (DCV), alternating current voltage (ACV), direct current amperage (DCA), alternating current amperage (ACA), resistance, and capacitance, and can perform diode and continuity testing. Accta AT-85D also has a non-contact ACV induction measurement (NCV), live line judgment, and torch functions. Accta AT-85D fully meets CAT III 600 V safety regulations and has overload protection for reliable and safe operation. This device is a prime choice for beginner-level and home users.
Features
- High-precision True RMS measurements
- Multiple useful functions, options, and settings
- Non-contact NCV measurement with the NCV induction voltage range of 48 to 250 V
- Firewire recognition function
- A dual-integral A/D converter
- Data hold function
- Intelligent anti-burn feature with a built-in safety tube protection device and an overload circuit for safer operation
- Backlit display and flashlight lighting
- Low-level battery indication with automatic shutdown to save battery charge
- Convenient and intuitive front-panel test lead jack design for good contact and quick measurements
- Special pen on the backside for convenient storage and transportation of test leads
- Bracket design enabling convenient placement, easy data reading, and effortless operation
- Pocket-sized and lightweight
Specifications
| Technical Specifications | ||||
|---|---|---|---|---|
| 85C | 85D | |||
| Measurements | Range | Precision | Range | Precision |
| DC voltage | ||||
| 2/20/200 V | ±(0.5%+3) | 6/60 V | ±(0.5%+3) | |
| 600 V | ±(1%+10) | 600 V | ±(1%+10) | |
| AC voltage | 2 V | ±(1%+5) | 6 V | ±(0.8%+5) |
| 20/200 V | ±(0.8%+5) | 60 V | ||
| 600 V | ±(1.2%+10) | 600 V | ±(1.2%+10) | |
| DC current | 600 mA | ±(1%+5) | 600 mA | ±(1%+5) |
| 6 A | ±(1.5%+10) | 6 A | ±(1.5%+10) | |
| 10 A | ±(2%+5) | 10 A | ±(2%+5) | |
| AC current | 600 mA | ±(1.5%+10) | 600 mA | ±(1.5%+10) |
| 6 A | ±(2%+5) | 6 A | ±(2%+5) | |
| 10 A | ±(3%+10) | 10 A | ±(3%+10) | |
| Resistance | 2000 Ω | ±(1.3%+5) | 600 Ω | ±(1.3%+5) |
| 20/200 kΩ | ±(0.8%+3) | 6/60/600 kΩ | ±(0.8%+3) | |
| 2 MΩ | ±(1.5%+3) | 6 MΩ | ±(1.5%+3) | |
| 20 MΩ | ±(2%+10) | 60 MΩ | ±(2%+10) | |
| Capacitance | 60 nF/600 nF/6 μF/60 μF/600 μF | (3.5%+20) | ||
| 6/60 mF | ±(5%+10) | Product Specifications | ||
| Display count | 5999, auto polarity display | |||
| Resistance | 10 MΩ | |||
| Frequency response | 40 — 1 kHz | |||
| Operating temperature | 0 to 40°C | |||
| Sampling rate | 3 times/sec | |||
| Power supply | 2 × AAA 1.5 V LR03 batteries | |||
| Size | 146 × 72 × 50 mm | |||
| Weight | 210 g (with batteries) | |||
Package Contents
- Accta AT-85D multimeter — 1 pc.
- Test leads — 1 pair
- AAA 1.5V battery — 2 pcs.
- User manual — 1 pc.
