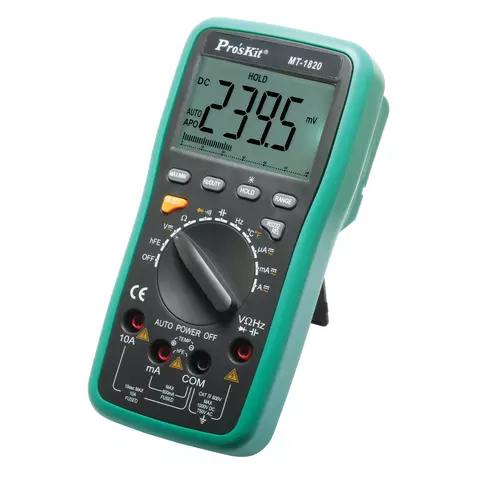

Digital Multimeter Pro'sKit MT-1820

id: 818917
0.45 kg Warranty: 6 month (s)
For AC/DC voltage and current, resistance, frequency, capacitance, temperature measurements and continuity, diode and transistor tests. With USB connector.
Contact
sales team
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

This digital multimeter measures AC/DC voltage and current, resistance, frequency, capacitance, temperature, and tests continuity, diodes and transistors. The multimeter comes with a USB connector for monitoring and recording measurement data with a PC.

Pro'sKit MT-1820 Digital Multimeter Features

  • Large 3 5/6 digit (5999) LCD with analog bargraph
  • 0.5% best accuracy
  • USB connector for PC
  • Measuring and test functions: :
    • AC/DC voltage and current
    • resistance
    • frequency
    • capacitance
    • continuity (with buzzer)
    • diode test
    • temperature
    • duty cycle
    • relative reference
    • Max/Min value
    • transistor test
  • Data hold function
  • Auto/Manual ranging
  • Auto power off
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit Digital Multimeter Comparative Specifications

Model 3PK-345 MT-1820 MT-1860
Display 3¾ digit (3999) LCD 3 5/6 digit (5999) LCD
DC voltage, V 4V/40V/400V ±(0.5%+3d)
1000V ±(0.8%+3d)
600mV/6V/60V/600V ±(0.5%+4d)
1000V ±(1.0%+6d)
600mV/6V/60V/600V ±(0.5%+4d)
1000V ±(1.0%+4d)
AC voltage, V 4V/40V/400V ±(1.2%+5d)
750V ±(1.5%+5d)
6V/60V/600V ±(0.8%+10d)
750V ±(1.0%+10d)
6V/60V/600V ±(0.8%+10d)
750V ±(1.0%+6d)
DC current, A 4mA/400mA ±(1.2%+3d)
10A ±(2.0%+8d)
600μA/6000μA ±(1.0%+10d)
60mA/600mA ±(1.0%+10d)
6A/10A ±(1.2%+10d)
60mA/600mA ±(1.0%+10d)
6A/10A ±(1.2%+10d)
AC current, A 4mA/400mA ±(1.5%+8d)
10A ±(3.0%+8d)
600μA/6000μA ±(1.5%+10d)
60mA/600mA ±(1.5%+10d)
6A/10A ±(2.0%+15d)
60mA/600mA ±(1.5%+10d)
6A/10A ±(2.5%+15d)
Resistance, Ω 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±(1.2%+3d)
40MΩ ±(3.0%+5d)
600Ω ±(0.8%+5d)
6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+4d)
60MΩ ±(1.2%+10d)
Special Function transistor test key touching
Frequency, Hz - 100Hz/1000Hz/10kHz/
/100kHz/1MHz/20MHz ±(0.5%+4d)
10Hz/100Hz/1000Hz/10kHz/
/100kHz/1MHz/20MHz ±(0.3%+2d)
Capacitance, F 40nF/400nF ±(4.0%+5d) 40nF ±(5.0%+30d)
400nF/4μF/40μF ±(3.5%+8d)
200μF ±(5.0%+10d)
Temperature, ºC 0~400ºC ±(3.0%+3d)
400~750ºC ±(3.0%+5d)
-20~400ºC ±(1.0%+5d)
400~1000ºC ±(1.5%+15d)
Battery 6F22(9V) (not included) AAA 1.5V × 2 (not included)
Size (D × W × H), mm 186 × 78 × 35 192 × 95 × 48 185 × 91 × 49
Weight, g 910 390 (including batteries) 410 (including batteries)

Pro'sKit MT-1820 Digital Multimeter Package contains

  • Digital multimeter
  • Test leads
  • Transistor test accessory
  • Thermocouple
  • USB cable
  • Software CD
  • User manual

Download Pro'sKit MT-1820 Digital Multimeter User Manual (English version)

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (USB)
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 5999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 60 MOhm
Capacitance
  • up to 200 μF
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • USB
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
Frequency
  • up to 20 MHz
NCV
  • no
Battery Testing
  • no
