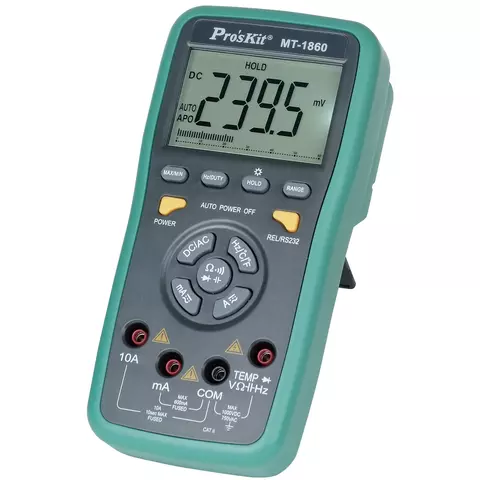

Digital Multimeter Pro'sKit MT-1860
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
0.35 kg Warranty: 6 months
For AC/DC voltage and current, resistance, frequency, capacitance, temperature measurements, and continuity,diode tests. USB connector. Key touching. Read more
Description
Digital multimeter measures AC/DC voltage and current, resistance, frequency, capacitance, temperature, tests continuity and diodes and comes with USB connector for monitoring and recording measuring data on PC.
Pro'sKit MT-1860 Digital Multimeter Features
- Large 3 5/6 digit (5999) LCD with analog bargraph
- 0.5% best accuracy
- USB connector for PC
- Functions:
- AC/DC voltage and current
- resistance
- frequency
- capacitance
- continuity (with buzzer)
- diode test
- temperature
- duty cycle
- relative reference
- Max/Min value
- Backlight
- Data hold function
- Auto/Manual ranging
- Auto power off
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Pro'sKit Digital Multimeter Comparative Specifications
| Model | 3PK-345 | MT-1820 | MT-1860 |
|---|---|---|---|
| Display | 3 3/4 digit (3999) LCD | 3 5/6 digit (5999) LCD | |
| DC voltage, V | 4V/40V/400V ±(0.5%+3d) 1000V ±(0.8%+3d) |
600mV/6V/60V/600V ±(0.5%+4d) 1000V ±(1.0%+6d) |
600mV/6V/60V/600V ±(0.5%+4d) 1000V ±(1.0%+4d) |
| AC voltage, V | 4V/40V/400V ±(1.2%+5d) 750V ±(1.5%+5d) |
6V/60V/600V ±(0.8%+10d) 750V ±(1.0%+10d) |
6V/60V/600V ±(0.8%+10d) 750V ±(1.0%+6d) |
| DC current, A | 4mA/400mA ±(1.2%+3d) 10A ±(2.0%+8d) |
600μA/6000μA ±(1.0%+10d) 60mA/600mA ±(1.0%+10d) 6A/10A ±(1.2%+10d) |
60mA/600mA ±(1.0%+10d) 6A/10A ±(1.2%+10d) |
| AC current, A | 4mA/400mA ±(1.5%+8d) 10A ±(3.0%+8d) |
600μA/6000μA ±(1.5%+10d) 60mA/600mA ±(1.5%+10d) 6A/10A ±(2.0%+15d) |
60mA/600mA ±(1.5%+10d) 6A/10A ±(2.5%+15d) |
| Resistance, Ω | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±(1.2%+3d) 40MΩ ±(3.0%+5d) |
600Ω ±(0.8%+5d) 6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+4d) 60MΩ ±(1.2%+10d) |
|
| Special Function | transistor test | key touching | |
| Frequency, Hz | - | 100Hz/1000Hz/10kHz/ /100kHz/1MHz/20MHz ±(0.5%+4d) |
10Hz/100Hz/1000Hz/10kHz/ /100kHz/1MHz/20MHz ±(0.3%+2d) |
| Capacitance, F | 40nF/400nF ±(4.0%+5d) | 40nF ±(5.0%+30d) 400nF/4μF/40μF ±(3.5%+8d) 200μF ±(5.0%+10d) |
|
| Temperature, ºC | 0~400ºC ±(3.0%+3d) 400~750ºC ±(3.0%+5d) |
-20~400ºC ±(1.0%+5d) 400~1000ºC ±(1.5%+15d) |
|
| Battery | 6F22(9V) (not included) | AAA 1.5V × 2 (not included) | |
| Size (D × W × H), mm | 186 × 78 × 35 | 192 × 95 × 48 | 185 × 91 × 49 |
| Weight, g | 910 | 390 (including batteries) | 410 (including batteries) |
Pro'sKit MT-1860 Digital Multimeter Package contains
- Digital multimeter
- Test leads
- K-thermocouple
- USB cable
- Software disc
- Holster
- User manual
Download Pro'sKit MT-1860 Digital Multimeter User Manual (English version)
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Frequency |
|
| NCV |
|
| Battery Testing |
|
