Digital Oscilloscope FNIRSI 1013D

id: 897750
Bestseller
2 kg
Availability in stock: HK
Warranty: 6 month (s)
Dual-channel oscilloscope with up to 100 MHz bandwidth, 1 GSa/s sampling rate, 240 KB storage depth, and 7'' TFT touchscreen (800 × 480).
USD 139.00
Add to cart
USD 139.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

FNIRSI 1013D is a portable dual-channel oscilloscope with bandwidth up to 100 MHz. The oscilloscope is equipped with a 7-inch color display and a built-in lithium battery which provides up to 4 hours of continuous operation. Vertical resolution is 8 bit, and the real-time sampling rate is 1 GS/s.

The internal memory of the device is 1 GB, and it is enough to store 1000 signals. FNIRSI 1013D also has a micro USB interface for connecting to a computer. The oscilloscope is designed for diagnostics and tuning of radio and electronic equipment.

Features

  • Compact and functional oscilloscope.
  • Large touchscreen 7-inch TFT display (800 × 480 pixels).
  • High voltage protection: built-in module provides protection up to 400 V.
  • Equipped with a built-in 1 kHz generator with the ability to calibrate probes.
  • Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
  • Automatic measurement function.
  • Roll function.
  •  Lissajous figures graphic display function.
  • Screen brightness adjustment function.

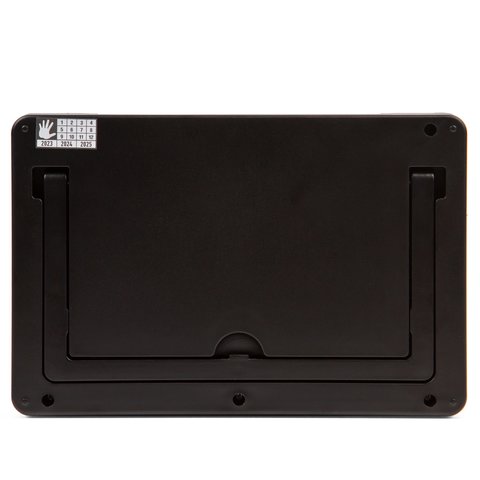

  • Equipped with a stand for desktop use.

Technical Specifications

Channels 2
Bandwidth 100 MHz
Real-time Sample Rate 1 GS/s
Storage Depth 240 KB
Input
Input Coupling DC, AC
Input impedance 1 Ω
Probe Attenuator 1 X, 10 X
Highest Test Voltage 40 V (1 X), 400 V (10 X)
Horizontal System
Time Base Scale 50 s / div  - 10 ns / div
Vertical System
Time base scale 50 mV / div - 500 V / div
Rise time < 3 ns
Vertical Resolution 8 bit
Voltage Accuracy ± 2%
Frequency Accuracy ± 0,01%
Trigger System
Trigger Mode Auto, Normal, Single
Trigger Type Rising/Falling edge
Measuring System
Automatic Measurements VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period
Cursor Measurements XY, Y trigger
General Specifications
Display color TFT display, 7 inches, 800 × 480 pixels
Power built-in 6000 mAh lithium battery, up to 4 hours of continuous work, 5 hours of charging
Interface USB (5 V / 2 A)
Built-in Memory 1 GB
Waveform Storage 1000 picture + 1000 waveform
Dimensions 184 × 124 × 50 mm
Net Weight 650 g

Package Contents

  • Digital Oscilloscope FNIRSI 1013D — 1 pc.
  • Oscilloscope Probe — 2 pcs.
  • USB Cable — 1 pc.
  • User Manual — 1 pc.
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • portable
  • touch
Sample Rate
  • 1 GS/s
Storage Capacity
  • 240 KB
