Overview
0.4 kg Warranty: 6 months
Universal two-channel digital oscilloscope with multimeter and signal generator functions, equipped with a 4.3-inch IPS touch screen and a 4000 mAh lithium battery that provides up to 4 hours of battery life Read more
Price coming soon
Description

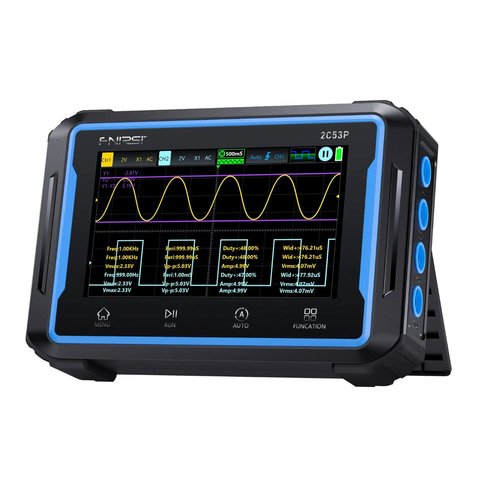

FNIRSI 2C53P is a two-channel digital oscilloscope that combines the functions of an oscilloscope, a multimeter, and a signal generator, making it a powerful tool for diagnosing and testing electronic circuits. This device is equipped with a 4.3-inch IPS touch display that allows you to conveniently view measurements. Thanks to the built-in 4000 mAh lithium battery, it can be used for up to 4 hours without connecting to the power supply.
Features
- 3 in 1 device: oscilloscope, multimeter and signal generator.
- Supports measurements of alternating and direct current (AC/DC), mathematical operations and saving screenshots.
- Generates 12 types of signals with a frequency of up to 10 MHz.
- A convenient color IPS display with touch controls.
- It has a compact design.
Technical characteristics
| Display size and resolution | 4.3 inches (480×272 pixels) | ||
| Display Material | Tempered glass + touch screen + color IPS display | ||
| Backlight | Backlight brightness can be set | ||
| Power Supply | TYPE-C (5V/2A) | ||
| Battery | Lithium battery 4000 mAh | ||
| Dimensions | ≈145 mm × 98 mm × 35 mm | ||
| Weight | ≈360 g | ||
| Oscilloscope parameters | |||
|---|---|---|---|
| Number of channels | 2 | ||
| Bandwidth | 50 MHz | ||
| Real-time sample rate | 250 Mbps | ||
| Storage depth | Up to 64 kB | ||
| Input Impedance | 1 MΩ | ||
| Time Range | 10 ns/div - 10 s/div | ||
| Vertical sensitivity | 10 mV/div - 10 V/div | ||
| Maximum measured voltage | ±400 V | ||
| Vertical resolution | 8 bits | ||
| Probe | 1x/10x | ||
| Storage Space | 13 MB | ||
| Bandwidth limit | 20 MHz limit support | ||
| Trigger Mode | AUTO / Normal / Disposable | ||
| Trigger Type | Rise/Fall | ||
| Trigger Level | 8 div (positive/negative) | ||
| Waveform display mode | XY / YT / Scroll | ||
| Input coupling | Alternating Current (AC) / Direct Current (DC) | ||
| Measured data | Prd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid- | ||
| Mathematical calculations | 1+2, 1-2, 1×2, 1/2, -1, -2 | ||
| Save waveform screenshot | Yes | ||
| USB data transfer to computer | Yes | ||
| Multimeter parameters | |||
| Function | Range | Accuracy | |
| DC Voltage | 1.9999 V / 19.999 V / 199.99 V / 1000.0 V | ±(0.5%+3) | |
| AC Voltage | 1.9999 V / 19.999 V / 199.99 V / 760.0 V | ±(1%+3) | |
| DC Current | 19.999 mA / 199.99 mA / 1.9999 A / 9.999 A | ±(1.2%+3) | |
| AC Current | 19.999 mA / 199.99 mA / 1.9999 A / 9.999 A | ±(1.5%+3) | |
| Resistance | 1) 19.999 MΩ / 1.9999 MΩ / 199.99 kΩ / 19.999 kΩ 2) 1.9999 kOhm / 199.99 Ohm |
1) ±(1.5%+3) 2) ±(0.5%+3) |
|
| Capacity | 1) 999.9 µF / 99.99 µF / 9.999 µF / 999.9 nF / 99.99 nF / 9.999 nF 2) 9.999 mF / 99.99 mF |
1) ±(2.0%+5) 2) ±(5.0%+20) |
|
| Temperature | -55 - 1300 °C / -67 - 2372 °F | ±(2.5%+5) | |
| Diode testing | Yes | ||
| Continuity Test | Yes | ||
| Signal generator parameters | |||
| Number of channels | 1 | ||
| Frequency | 0-10 MHz (sine wave); other waveforms: 5 MHz | ||
| Amplitude | 0.1-3.0 V | ||
| Square waveform duty cycle | 0-100% | ||
| Signal type | sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse | ||
Package Contents
- Digital oscilloscope FNIRSI 2C53P — 1 pc.
- Alligator clip probe — 1 pc.
- P6100 — 2 pcs.
- Product manual — 1 pc.
- Multimeter probe — 1 pc.
- Data cable — 1 pc.
