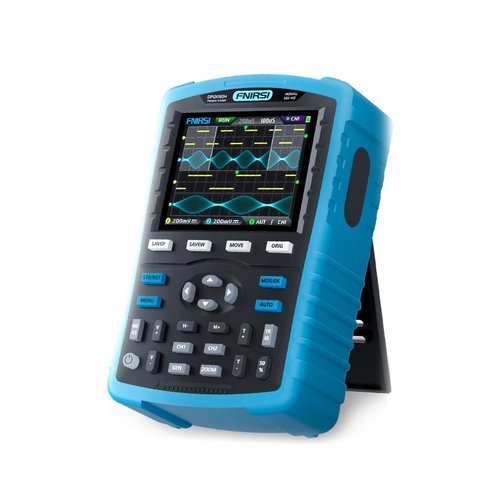

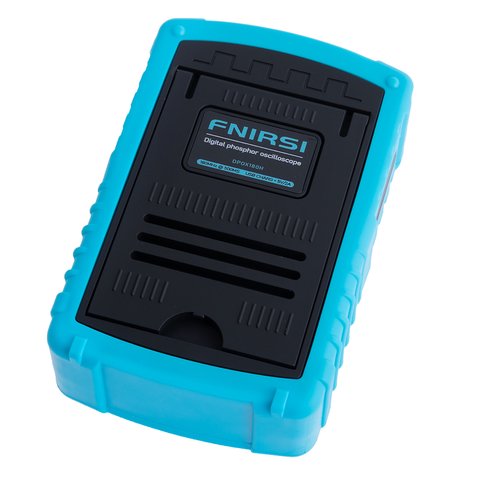

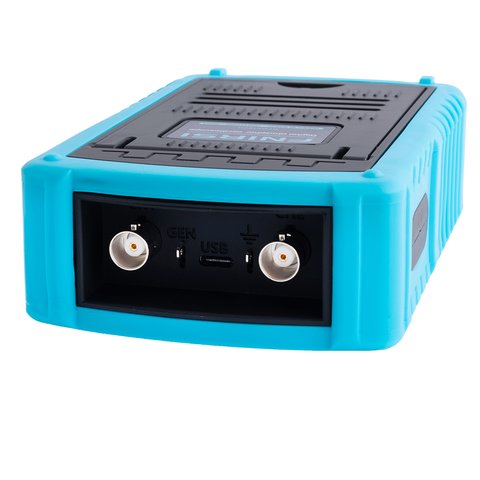

FNIRSI DPOX180H is a portable two-channel digital oscilloscope with a bandwidth of each channel up to 180 MHz and a sampling rate of up to 500 MSa/s. It features a built-in generator offering 14 standard waveforms including sine, square wave, triangle, pulse, saw, constant voltage, etc. Moreover, it incorporates fluorescence technology to emulate the waveform appearance of analog CRT oscilloscopes.
Features
- High sensitivity from 5 mV/div enables analysis of low-level signals
- Trigger time ranges from 5 ns to 50 s, facilitating examination of both fast and slow changes in detail
- Waveform refresh rate of up to 50000 wfm/s significantly enhances the likelihood of capturing one-time bursts and non-periodic signals
- Digital phosphor technology utilizes a color gradient to convey waveform repetition rate
- The built-in generator offers 14 standard waveforms and the ability to replicate oscillograms (output voltage: 1 V, frequency: 20 MHz for sine, 10 MHz for other waveforms)
- Equipped with a 2.8-inch IPS display with a resolution of 320×240
- Real-time waveform capture modes include auto, single, and normal; with rising and falling trigger edge options
- ZOOM function provides a convenient tool for detailed analysis, offering magnification ranging from 2 to 1000
- Bandwidth limitation feature restricts bandwidth to 20 MHz to filter out high-frequency interference when necessary
- Clone function - allows you to generate a signal captured by an oscilloscope
- A built-in 3000 mAh battery offers up to 3.5 hours of autonomy
- Fast auto-tuning function automatically configures settings for most periodic signals
- Frequency Domain Analysis FFT facilitates quick signal analysis
- Built-in 120 MB memory for storing up to 250 waveforms or 90 screenshots for viewing and analysis
Technical Specifications
| Channels | 2 |
| Analog Bandwidth | 180 MHz (can be limited to 20 MHz) |
| Rise Time | 2.5 ns |
| Maximum Sampling Rate | 500 MSa/s |
| Input Coupling | DC/AC |
| Input Impedance | 1 MΩ |
| Input Capacity | 18 pF |
| Storage Depth | 120 Kpts |
| Vertical Sensitivity | 5 mV/div to 10 V/div (1X), accuracy: ±2% |
| Trigger Time | 5 ns/div to 50 s/div, 0.01% accuracy with ZOOM function |
| Measuring Range | 40mV ~ 80V (1X) |
| Trigger Mode | auto / single / normal |
| Trigger Edge | Rising/Falling |
| Cursor Measurement | Frequency/Period/Amplitude |
| ZOOM Scaling Time Base | available |
| Digital Phosphor Technology | available |
| Adjustable Automatic Bandwidth Limitation | available |
| Color Temperature Display | available |
| Roll Mode | available |
| Screenshot Storage | 90 |
| Waveform Storage | 250 groups |
| Capture Signal | 500 |
| Waveform Manager | available |
| Waveform Output | available |
| X-Y Mode | available |
| FFT | available |
| High-voltage Burnout Protection | available |
| Charging/Data Interface | USB |
| Auto Power-off | between 5 minutes and 2 hours |
| Max. Input Voltage | 400 V |
| Display | 2.8-inch, 320 × 240 pixels, sensor type: IPS |
| Firmware Ipdate | available |
| Built-in Battery | 3000 mAh (up to 3.5 hours of standby time) |
| Automatic Measurements | 12 kinds |
| Built-in Signal Generator | 14 standard function signals |
| Dimensions | 135 mm × 90 mm × 40 mm |
| Weight | 680 g |

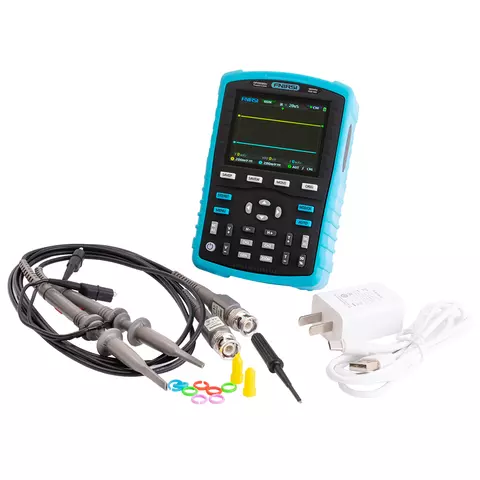

Package Contents
- Digital Oscilloscope FNIRSI DPOX180H — 1 pc.
- High-frequency 200 MHz Probe (1X and 10X) — 2 pcs.
- Power Adapter 5V 2A — 1 pc.
- USB Charging/Data Cable — 1 pc.
- User Manual — 1 pc.
