Overview
0.3 kg Warranty: 12 months
Portable, single-channel oscilloscope with 2.5 MSa/s real-time sampling rate, 200 kHz analog bandwidth and complete trigger functions (single, normal, and automatic) Read more
Price coming soon
Description

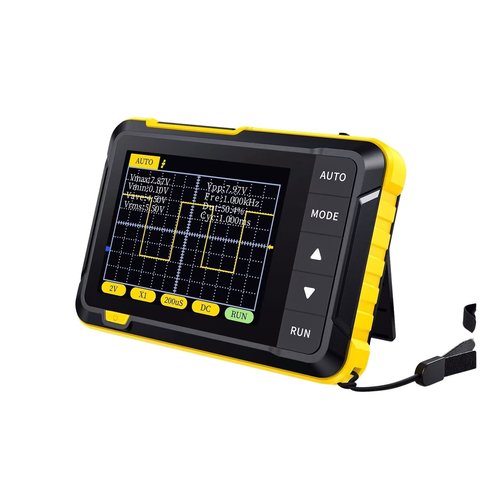

FNIRSI DSO152is a highly practical and cost-effective handheld single-channel oscilloscope with a real-time sampling rate of 2.5 MS/s, an analog bandwidth of 200 kHz, and complete trigger functions (single, normal, and automatic). It can be utilized for both periodic analog signals and non-periodic digital signals and is capable of measuring voltages up to ±400V. Equipped with an efficient one-key AUTO function, it can display the measured waveform without requiring cumbersome adjustments.

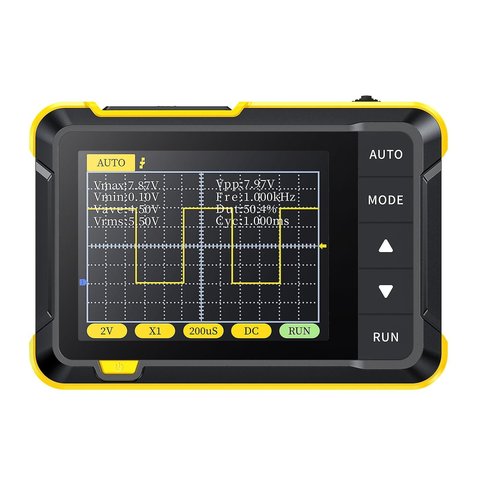

The FNIRSI DSO152 features a 2.8-inch 320×240 resolution high-definition LCD. It is powered by a built-in 1000 mAh high-quality lithium battery, providing approximately 4 hours of continuous usage on a full charge.
Features
- Ergonomically designed and portable
- Intelligent overload protection
- Efficient and precise
- Built-in high quality 1000mAh lithium battery
- Supports 8 kinds of automatic measurements
- Automatic adjustment
- Firmware update

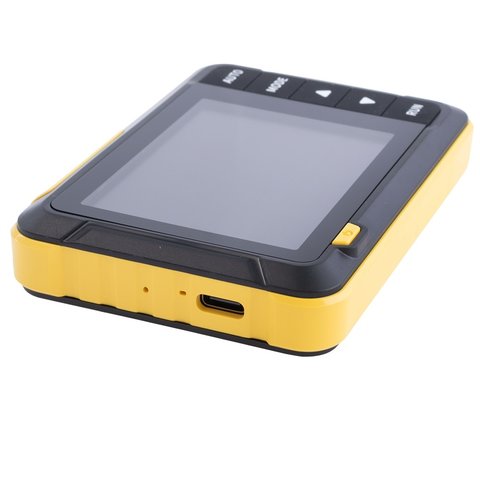

- Type-C charging port
Technical Specifications
| Number of Channels | 1 |
| Bandwidth | 200 kHz |
| Sampling Rate | 2.5 MS/s |
| Voltage Range | X1: ±40 V (Vpp: 80 V) X10: ±400 V (Vpp: 800 V) |
| Input | |
|---|---|
| Coupling Methods | AC/DC |
| Input Impedance | 1 MΩ, 25 pF |
| Time Base Range | 10 µs/div - 500 s/div (progress according to the 1-2-5 way) |
| Vertical Sensitivity | 10 mV/div - 20 V/div (progress according to the 1-2-5 way) |
| Trigger Types | Auto/Normal/Single |
| Automatic Measurements | 8 parameters (frequency, peak-to-peak, duty cycle, amplitude, maximum, minimum, period, RMS, average) |
| Signal Generator | frequency 1 kHz duty cycle 50% |
| General Specifications | |
| Display | 2.8" color LCD, 320×240 pixels |
| Power | built-in 1000 mAh lithium battery, up to 4 hours of continuous operation |
| USB | 5V/1A Type-C charging |
| Dimensions | 99 mm × 68.3 mm × 19.5 mm |
| Net Weight | 100 g |
User Manual
Download FNIRSI DSO152 user manual.

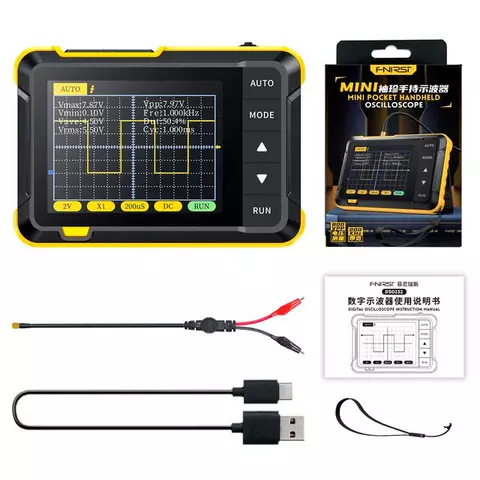

Package Contents
- Digital Oscilloscope FNIRSI DSO152 — 1 pc.
- Packaging Box — 1 pc.
- Alligator Clip Probe — 1 pc.
- USB Cable — 1 pc.
- Lanyard — 1 pc.
- User Manual — 1 pc.
Specifications
| Screen Size |
|
| Number of channels |
|
| Type |
|
| Bandwidth |
|
| Sample Rate |
|
