Digital Oscilloscope RIGOL DS1104Z-S

id: 844218

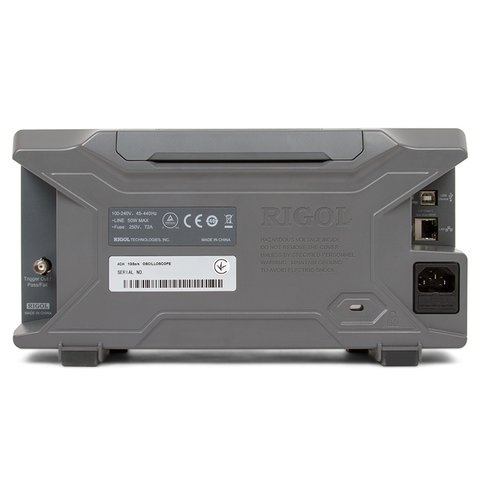

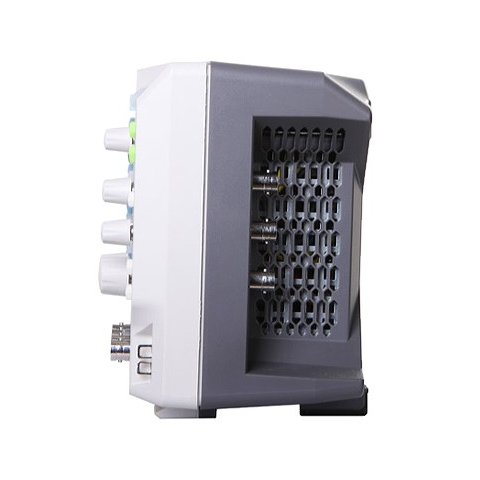

Digital Oscilloscope RIGOL DS1104Z-S
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued

Overview

7.5 kg 110, 220 V Warranty: 36 months
Four-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display, up to 30,000 waveforms/sec capture rate and 2-channels 25 MHz waveform generator. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope RIGOL DHO914
ID: 915164

Digital Oscilloscope RIGOL DHO914

USD 579.00
4-channel oscilloscope with a 125 MHz bandwidth, 1.25 GSa/s sample rate, 12-bit A/D converter, 50 Mpts memory depth, and a 17.8 cm touch display (1024x600 pixels)
Availability in stock: HK
Shipping cost
ID: 915164 3 kg

Description

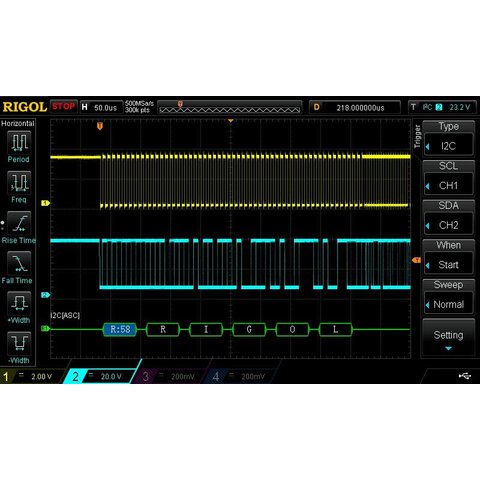

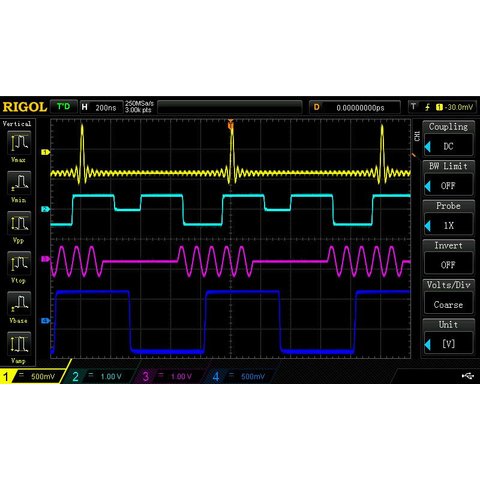

RIGOL DS1104Z-S digital oscilloscope is the new economic level four-channel oscilloscope (100 MHz) with dual-channel 25 MHz waveform generator. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1104Z-S provides up to 30 000 wfms/s waveform acquisition rate.

RIGOL DS1104Z-S digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 100 MHz.
  • 4 channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory depth: 12 Mpts.
  • Built in 2-channel 25 MHz waveform generator
  • Innovative UltraVision technology.
  • Waveform acquisition rate up to 30,000 wfms/s.
  • Low noise floor, dynamic Range: 1mV/div to 10V/div
  • 7-inch color LCD.
  • Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
  • Compact design, small dimensions, light weight.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Bandwidth 100 MHz
Channels 4
Real time sample rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel)
Waveform generator 2 channels, 25 MHz
Memory depth 12 Mpts, 24 Mpts (opt.)
Waveform acquisition rate 30,000 wfms/s (Max. )
Vertical sensitivity range 1 mV/div - 10 V/div
Offset range 1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V
Vertical resolution 8 bit
Math Add, Subtract, Multiply, Divide, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Display 7" color LCD (800×480)
Weight 3.8 kg (± 0.5 kg)
Dimensions 313.1 × 160.8 × 122.4 mm

Additional Information

Download RIGOL DS1104Z-S Data Sheet.

Download RIGOL DS1104Z-S User Manual.

Package Contents

  • RIGOL DS1104Z-S digital oscilloscope (1 pc.)
  • Passive probes (4 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)

Specifications

Screen Size
  • 7.0" TFT display
Number of channels
  • 4-channel
Bandwidth
  • 100 MHz
Type
  • desktop
  • with built-in generator
Sample Rate
  • 1 GS/s
Storage Capacity
  • 12 MB
