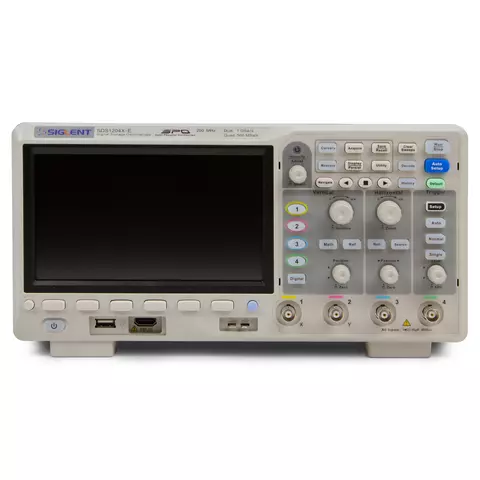

Super Phosphor Oscilloscope SIGLENT SDS1204X-E
id: 876393
Super Phosphor Oscilloscope SIGLENT SDS1204X-E
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 667.92
Overview
Video
Video
Video
Video
Bestseller
6 kg
Availability in stock:
HK
Warranty: 36 months 4-channel phosphor oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate. Read more
USD 667.92
You may also like
4-channel oscilloscope with a 200 MHz bandwidth, 2 GSa/s sampling rate, 100 Mpts memory depth, featuring enhanced math/measurement functions, and a 17.78 cm LCD (1024 x 600)
Availability in stock:
HK
ID: 917571 5.5 kg
4CH oscilloscope with 200 MHz bandwidth, 2 GSa/s sampling rate, and 100 Mpts memory depth with enhanced math and measurement functions, and a 25.7 cm LCD (1024 x 600 pixels)
Availability in stock:
HK
ID: 917688 13.5 kg
Frequently bought together
2 channel waveform generator with a frequency range of 1 µHz to 200 MHz with 2.4 GSa/s sampling rate (16 bit) and 20 Mpts memory. Bandwidth: 200 MHz.
Availability in stock:
HK
ID: 873661 6 kg 110, 220
Dual-channel function/arbitary waveform generator with 120 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Availability in stock:
HK
ID: 862793 6 kg 110, 220
Dual-channel function/arbitary waveform generator with 80 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Availability in stock:
HK
ID: 862792 6 kg 110, 220
Dual-channel function/arbitary waveform generator with 60 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
Availability in stock:
HK
ID: 869148 6 kg 110, 220
Dual-channel function/arbitary waveform generator with 40 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Availability in stock:
HK
ID: 862791 6 kg 110, 220
Output Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms. Used with the four channel SDS1000X-E and SDS5000X oscilloscopes.
Availability in stock:
HK
ID: 887331 0.49 kg
Bestseller
ID: 887349
Logic Analyzer Probe SIGLENT SLA1016 for SIGLENT SDS1104X-E, SDS1204X-E
USD 339.00
16-channel logic analyzer for 4-channel SIGLENT SDS1000X-E scopes.
Availability in stock:
HK
ID: 887349 0.55 kg
Description
SIGLENT SDS1204X-E is a dual-channel Super Phosphor Oscilloscope with 200 MHz bandwidth, 1 GSa/s sample rate, and a standard record length of 14 Mpts.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology
- Low background noise, supports 500 μV/div to 10 V/div voltage scales
- 38 automatic measurement functions
- Supports Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement
- Waveform math functions (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
- High Speed hardware based Pass/Fail function
- Large 7-inch TFT LCD display with 800×480 resolution
- Abundant interfaces: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger
- Supports multi-language display and embedded online help
Technical Specifications
| SDS1072X-E | SDS1102X-E | SDS1202X-E | SDS1104X-E | SDS1204X-E | |
|---|---|---|---|---|---|
| Bandwidth | 70 MHz | 100 MHz | 200 MHz | 100 MHz | 200 MHz |
| Channels | 2 + 1 EXT | 2 + 1 EXT | 2 + 1 EXT | 4 | 4 |
| Real-time sampling rate | 1 GSa/s | ||||
| Memory depth | 14 Mpts/CH (Single-Channel); 7 Mpts/CH (Dual-Channel) | ||||
| Waveform capture rate | 400,000 wfms/s (Sequence Mode) | ||||
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern, Video | ||||
| Vertical resolution | 500 μV/div to 10 V/div | ||||
| Math Operators | Addition, subtraction, multiplication, division, FFT, differential, integral, square root | ||||
| FFT processing | 1 Mpts | ||||
| Auto measurements | 38 types: Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement | ||||
| Decoding | I2C, SPI, UART/RS232, CAN and LIN | ||||
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger | ||||
| Display | 7'' display (800×480 pixels) | ||||
| Power | AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max | ||||
Functions Overview
Quick Start Guide
Download SIGLENT SDS1000X-E Series Quick Start Guide.
User Manual
Download SIGLENT SDS1000X-E Series User Manual.
Programming Guide
Download SIGLENT SDS1000X-E Series Programming Guide.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- SIGLENT SDS1204X-E Super Phosphor Oscilloscope — 1 pc.
- Passive Probe 1x 10x — 4 pcs.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
- Software CD — 1 pc.
Specifications
