Digital Oscilloscope RIGOL DS1202Z-E
id: 894828
Digital Oscilloscope RIGOL DS1202Z-E
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 426.66
USD 358.39
Add to cart
Overview
Video
Bestseller
7.5 kg 110, 220 V
Availability in stock:
HK
Warranty: 36 months Dual-channel digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate. Read more
Description

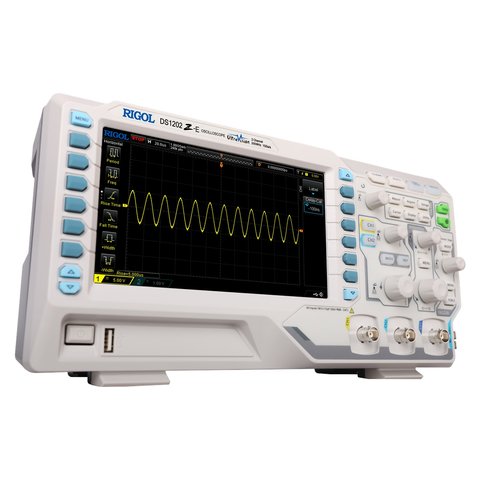

RIGOL DS1202Z-E is a high quality dual-channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 200 MHz. The device provides up to 30 000 wfms/s waveform acquisition rate, and 7-inch color oscilloscope's LCD provides a bright and clear waveforms display.
RIGOL DS1202Z-E digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Analog channel bandwidth: 200 MHz.
- 2 analog channels.
- Real-time sample rate up to 1 GSa/s.
- Memory depth up to 24 Mpts.
- Up to 30,000 wfms/s waveform capture rate.
- Up to 60,000 frames hardware real-time waveform recording and playback functions.
- Innovative "UltraVision" technology.
- Various trigger and bus decoding functions.
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div.

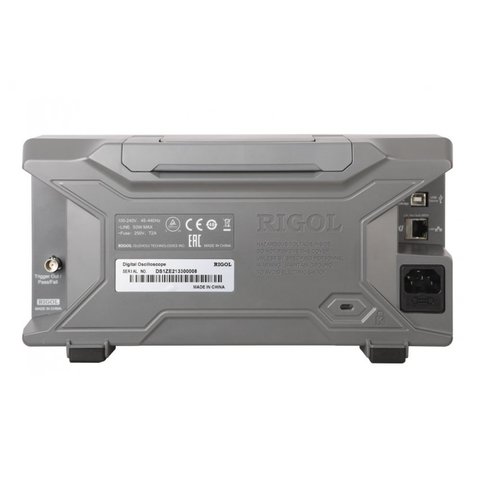

- Various interfaces: USB Host&Device, LAN (LXI), AUX.
- Compact size, light weight, easy to use.
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display.
Technical Specifications
| Bandwidth | 200 MHz |
| Channels | 2 |
| Real-time Sample Rate | 1 GSa/s (single-channel), 500 MSa/s (dual-channel) |
| Memory Depth | standard 24 Mpts (single-channel), 12 Mpts (dual-channel) |
| Waveform Capture Rate | 30 000 wfms/s |
| Vertical Sensitivity Range | 1 mV/div - 10 V/div |
| Offset Range | 1 mV/div to 499 mV/div: ±2 V; 500 mV/div to 10 V/div: ±100 V |
| Vertical Resolution | 8 bit |
| Math | A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, Filter |
| Output Voltage | ~ 3 V, peak-peak |
| Frequency | 1 kHz |
| Power | 50 W (max.) |
| Power Voltage | 100 V-240 V, 45 Hz-440 Hz |
| Cooling Method | Fan |
| Temperature Range | Operation: 0°C to +50°C Non-operation: -40°C to +60°C |
| Display | 7" color LCD (800×480) |
| Weight | Without Package 2.9 kg ± 0.2 kg; With Package 3.5 kg ± 0.5 kg |
| Dimensions | 313.1 mm × 160.8 mm × 122.4 mm |
Video
User Manual
Download RIGOL DS1202Z-E User Manual.
Programming Manual
Download RIGOL DS1202Z-E Programming Manual.
Service Manual
Download RIGOL DS1202Z-E Service Manual.
Datasheet
Download RIGOL DS1202Z-E Datasheet.
Package Contents

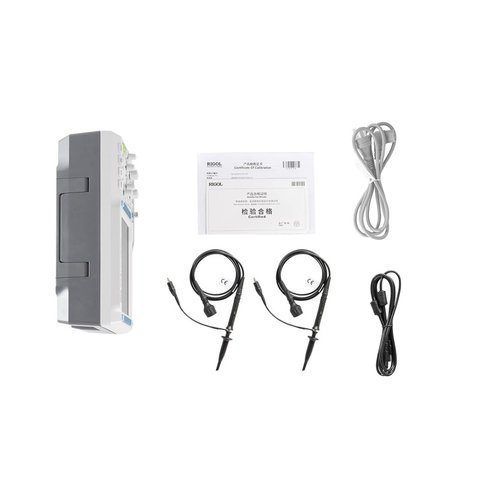

- Digital Oscilloscope RIGOL DS1202Z-E — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- Passive Probes — 2 pcs.
- User Manual — 1 pc.
