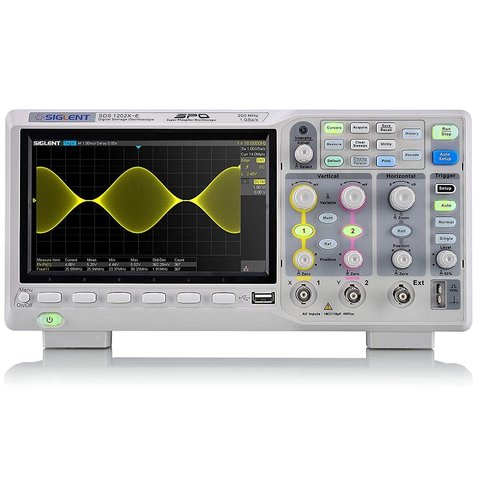

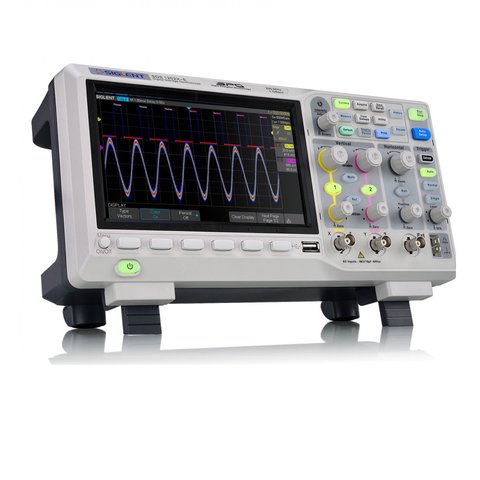

Super Phosphor Oscilloscope SIGLENT SDS1202X-E

No results found for your request.
ID: 870200 7.5 kg
Availability in stock: HK
Warranty: 24 month (s)
BestsellerNew

USD 379.00
In stock
Add to cart
+ Gift

Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
  • Overview
  • Specifications
  • Video
  • Delivery
  • Payment
  • Warranty

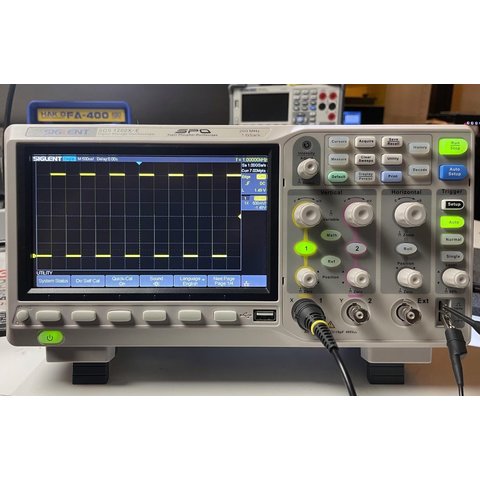

Overview

SIGLENT SDS1202X-E is a dual-channel Super Phosphor Oscilloscope with 200 MHz bandwidth, 1 GSa/s sample rate, and a standard record length of 14 Mpts.

Features

  • New generation of SPO (Super Phosphor Oscilloscope) technology
  • Low background noise, supports 500 μV/div to 10 V/div voltage scales
  • 38 automatic measurement functions
  • Supports Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • High Speed hardware based Pass/Fail function
  • Large 7-inch TFT LCD display with 800×480 resolution
  • Abundant interfaces: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger
  • Supports multi-language display and embedded online help

Technical Specifications

  SDS1072X-E SDS1102X-E SDS1202X-E
Bandwidth 70 MHz 100 MHz 200 MHz
Channels 2 + 1 EXT 2 + 1 EXT 2 + 1 EXT
Real-time sampling rate 1 GSa/s
Memory depth 14 Mpts/CH (Single-Channel); 7 Mpts/CH (Dual-Channel)
Waveform capture rate 400,000 wfms/s (Sequence Mode)
Trigger types Edge, Slope, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern, Video
Vertical resolution 500 μV/div to 10 V/div
Math Operators Addition, subtraction, multiplication, division, FFT, differential, integral, square root
FFT processing 1 Mpts
Auto measurements 38 types: Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement
Decoding I2C, SPI, UART/RS232, CAN and LIN
Interfaces USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger
Display 7'' display (800×480 pixels)
Power AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max

Functions Overview

Oscilloscope SIGLENT Function 1

Oscilloscope SIGLENT Function 2

Oscilloscope SIGLENT Function 3

Oscilloscope SIGLENT Function 4

Oscilloscope SIGLENT Function 5

Oscilloscope SIGLENT Function 6

Oscilloscope SIGLENT Function 7

Oscilloscope SIGLENT Function 8

Oscilloscope SIGLENT Function 9

Oscilloscope SIGLENT Function 10

Oscilloscope SIGLENT Function 11

Data Sheet

PDF  Download SIGLENT SDS1000X-E Series Quick Start Guide.

User Manual

PDF  Download SIGLENT SDS1000X-E Series User Manual.

Programming Guide

PDF  Download SIGLENT SDS1000X-E Series Programming Guide.

Video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

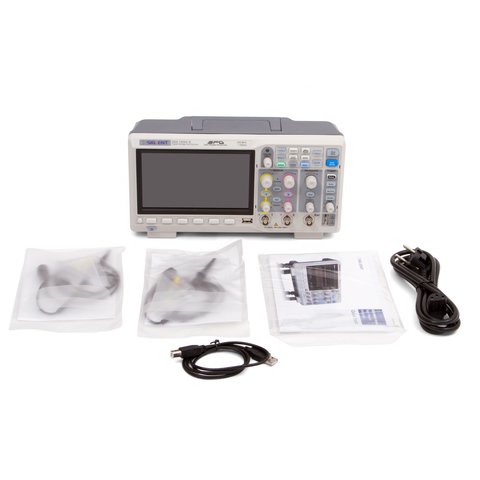

  • SIGLENT SDS1202X-E Super Phosphor Oscilloscope — 1 pc.
  • Passive Probe 1x 10x — 2 pcs.
  • USB Cable — 1 pc.
  • Power Cord — 1 pc.
