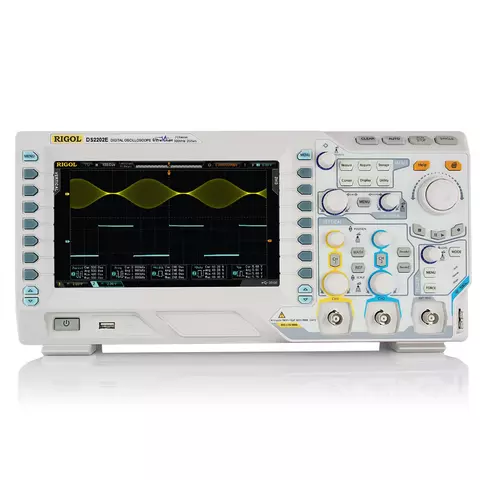

RIGOL DS2202E digital oscilloscope is a new high-quality dual-channel oscilloscope (200 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS2202E provides up to 50 000 wfms/s waveform acquisition rate.

RIGOL DS2202E digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 200 MHz.
  • 2 channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory depth: 28 Mpts.
  • Innovative UltraVision technology.
  • Vertical sensitivity: 500 μV/div – 10 V/div.
  • Waveform acquisition rate up to 50,000 wfms/s.
  • 8-inch color LCD.
  • Standard interface: USB host & device, LAN, AUX.
  • The recommended calibration interval period is one year.
  • Real-time waveform recording, waveform playback, and waveform analysis.
  • Compact design, small dimensions, light weight.

Technical Specifications

Bandwidth 200 MHz
Channels 2
Real time sample rate 1 GSa/s (2 channels)
Memory depth 28 Mpts (2 channels)
Waveform acquisition rate 50,000 wfms/s (Max. )
Vertical sensitivity range Input impedance is 50 Ω: 500 μV/div – 1 V/div
Input impedance is 1 MΩ: 500 μV/div – 10 V/div
Offset range Input impedance is 50 Ω:
500 μV/div – 50 mV/div (± 2 V)
51 mV/div – 200 mV/div (± 10 V)
205 mV/div – 1 V/div (± 12 V)
Input impedance is 1 MΩ:
500 μV/div – 50 mV/div (± 2 V)
51 mV/div – 200 mV/div (± 10 V)
205 mV/div – 2 V/div (± 50 V)
2.05 V/div – 10 V/div (± 100 V)
Vertical resolution 8 bits
Math Add, Subtract, Multiply, Divide, FFT, Digital Filter, Editable Advanced Operation, Logic Operations
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Trigger modes Auto, Normal, Single
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -40°C to +70°C
Cooling method Fan
Standard Ports USB host (supports USB-GPIB), USB device, LAN, Aux (TrigOut/PassFail)
Display 8" WVGA color LCD (800×480)
Weight 3.9 kg (± 0.2 kg)
Dimensions 361.6 × 179.6 × 130.8 mm

Data Sheet

PDF  Download RIGOL DS2202E Data Sheet.

Video

Youtube video

Youtube video

Youtube video

Youtube video

Package Contents

  • RIGOL DS2202E digital oscilloscope — 1 pc.
  • Passive probes — 2 pcs.
  • Power cable — 1 pc.
  • USB data cable — 1 pc.
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 200 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 28 MB
