Digital Oscilloscope RIGOL MHO954

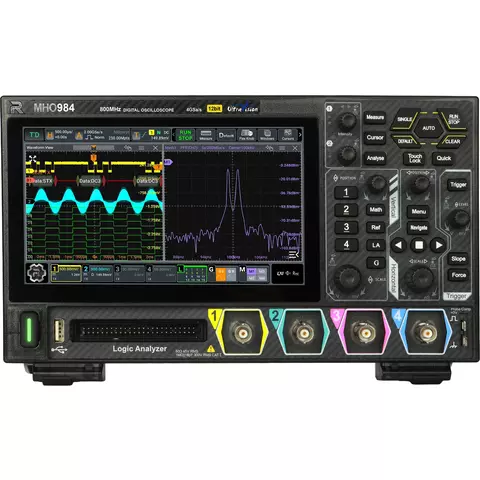

RIGOL MHO954 is a digital oscilloscope that impresses with its high performance, compact design, and outstanding price-to-performance ratio. Thanks to its 12-bit resolution, it delivers exceptionally precise and detailed signal representation. With a maximum analog bandwidth of up to 500 MHz and 4 analog channels, the device is perfectly suited for demanding measurement tasks in development, research, and education.

With a sampling rate of up to 4 GSa/s and a maximum memory depth of 100 Mpts (500 Mpts available as an option), the RIGOL MHO954 enables seamless acquisition of even the fastest signal transitions. Its vertical sensitivity from 200 µV/div to 10 V/div and a maximum waveform capture rate of 1 Mwfms/s ensure high precision and reliable measurement results, even for weak signals. Measurements can be intuitively controlled via the 7-inch HD touchscreen (1024 × 600 pixels), while the practical Flex Knob provides comfortable operation and fast navigation.

For comprehensive analysis tasks, an integrated 2-channel function/arbitrary waveform generator (up to 100 MHz) is included, which also supports Bode plot analysis. In addition, the device can be upgraded with 16 digital channels and optional 200 MHz PLA2216 logic analyzer probe, allowing simultaneous acquisition and analysis of both analog and digital signals.

Features

• 12-bit vertical resolution with 4096 levels of quantization – 16 times the resolution of 8-bit systems– ideal for small signal testing
• Max. 500 MHz analog bandwidth, 4 analog channels
• Real-time sample rate: up to 4 GSa/s
• Max. memory depth of 100 Mpts (500 Mpts as an option)
• Vertical sensitivity: 200 μV/div to 10 V/div
• Max. waveform capture rate: 1,000,000 wfms/s helps detect signal anomalies quickly
• Smooth workflows – even with measurement, spectrum, math, or long acquisitions
• Digital phosphor display with real-time 256-level intensity grading
• Standard 2-channel, 100 MHz Function/Arbitrary Waveform Generator (Bode plot supported)
• Supports histogram and digital signal analysis, among others
• Supports waveform search and navigation functions, capable of debugging signal anomalies faster
• 7" (1024×600) high-definition touchscreen for more convenient human–machine interaction
• Flex Knob for a more user-friendly experience
• Standard USB 2.0 Device & Host, LAN (100M), and HDMI interfaces
• Innovative and refined industrial design, easy to operate
• Supports online software upgrades
• Designed with a Type-C power interface – can be powered by a portable power source, enabling on-site testing
• Compact form factor; supports use with a standard monitor stand, effectively reducing desktop footprint and providing more workspace
• MHO900-BND will be sent via e-mail after shipment.

Technical Specifications

Data Sheet

  Download RIGOL MHO954 Data Sheet.

User Manual

  Download RIGOL MHO954 User Manual.

Package Contents

• Digital Oscilloscope RIGOL MHO954 — 1 pc.
• Power Adapter — 1 pc.
• Ground Cable — 1 pc.
• USB Cable — 1 pc.
• Passive HighZ Probes (500 MHz) — 4 pc.
• Portable Instrument Bag — 1 pc.
