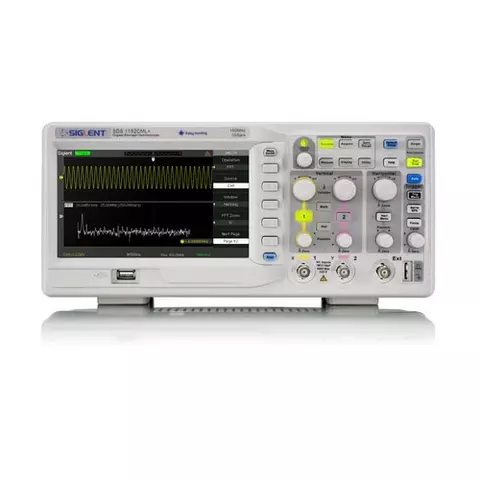

Digital Oscilloscope SIGLENT SDS1052DL+
Overview
Description
SIGLENT SDS1052DL+ digital oscilloscope is a desktop dual-channel digital oscilloscope with a 50 MHz bandwidth. 7-inch color LCD of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. SIGLENT SDS1052DL+ has a multi-language user interface and online help.
SIGLENT SDS1052DL+ digital oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.
Features
- Bandwidth: 50 MHz
- 2 channels + 1 external triggering channel
- Real-time sample rate: 500 MSa/s
- Equivalent sample rate: 50 GSa/s
- Memory depth: 32 Kpts
- Vertical sensitivity range: 2 mV/div – 10 V/div
- Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate
- 7" TFT color LCD
- Backlit buttons
- Unique digital filter and data recorder function
- USB host, USB device, LAN
- Pass/Fail Output
- Multi-language menu (12 languages)
- Online help
- Compact design for saving desktop space.
Technical Specifications
| Model | SDS1052DL+ | SDS1072CML+ | SDS1102CML+ | SDS1152CML+ |
|---|---|---|---|---|
| Bandwidth | 50 MHz | 70 MHz | 100 MHz | 150 MHz |
| Channels | 2 + 1 external triggering channel | |||
| Real time sample rate | 500 MSa/s (single channel) 250 MSa/s (dual channel) |
1 GSa/s (single channel) 500 MSa/s (dual channel) |
||
| Equivalent sample rate | 50 GSa/s | |||
| Memory depth | 32 Kpts | 2 Mpts | ||
| Vertical sensitivity range | 2 mV/div – 10 V/div | |||
| Vertical resolution | 8 bits | |||
| Rise time | ≤7 ns | |||
| Time base range | 10 ns/div – 50 s/div | |||
| Input impedance | 1 MΩ || 17 pF | |||
| Cursor measurements | Manual, Track, Auto measure | |||
| Math | Add, Subtract, Multiply, Divide, FFT | |||
| Trigger types | Edge, Pulse, Video, Slope, Alternate | |||
| Input coupling | DC, AC, GND | |||
| General Characteristics | ||||
| Display | 7" TFT color LCD (800×480) | |||
| Interface | USB host, USB device, LAN, P/F output | |||
| Power source | AC 100 ~ 240 V, 47 ~ 440 Hz, 50 VA Max | |||
| Max. input voltage | 1 MΩ 17 pF 400 V (DC + PK-PK) CATI, CATII | |||
| Dimensions | 305 × 133 × 154 mm | |||
| Weight | 2.5 kg | |||
Video
We introduce the video review of SIGLENT SDS1000 series of oscilloscopes on the example of SIGLENT SDS1102CML Digital Oscilloscope.
You'll find even more video reviews in the Video tab. Go and check it out!
Data Sheet
Download SIGLENT SDS1052DL+ Data Sheet.
User Manual
Download SIGLENT SDS1052DL+ User Manual.
Package Contents
- SDS1052DL+ digital oscilloscope — 1 pc.
- Probes — 1 pair
- Power cable — 1 pc.
