Digital Oscilloscope SIGLENT SDS1102DL+
id: 891797
Bestseller
6 kg
Availability in stock:
HK
Warranty: 36 months 2-channel digital oscilloscope with 100 MHz bandwidth, 500 MSa/s real-time sample rate, and 50 GSa/s equivalent sample rate, 32 K memory, LAN interface. Read more
Buy wholesale and save

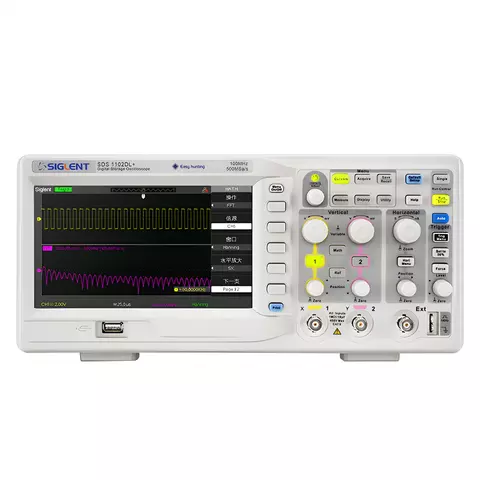

SIGLENT SDS1102DL+ is a desktop dual-channel digital oscilloscope with a 100 MHz bandwidth. 7-inch color LCD of the oscilloscope ensures bright and vivid waveform representation. SIGLENT SDS1102DL+ has a multi-language user interface and online help.
Features
- Bandwidth: 100 MHz.
- 2 channels.
- Real-time sample rate: 500 MSa/s.
- Equivalent sample rate: 50 GSa/s.
- Memory depth: 32 Kpts.
- Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate
- 7" TFT color LCD.
- Built-in digital frequency counter.
- 32 automatic measurement functions; 5 measurements may be displayed on the screen.
- Zoom function.
- Interface: USB host, USB device, LAN.
- Pass/Fail Output.
- Multi-language menu (12 languages).
- Online help.
- Digital filter and waveform recorder function.
- Digital recorder (7 M memory, USB flash drive support).
- Compact design for saving desktop space.
Technical Specifications
Bandwidth | 100 MHz |
Channels | 2 |
Real time sample rate | 500 MSa/s |
Equivalent sample rate | 50 GSa/s |
Memory depth | 32 Kpts |
Math | Add, Subtract, Multiply, Divide, FFT |
Trigger types | Edge, Pulse, Video, Slope, Alternate |
Display | 7" TFT color LCD (800×480) |
Interface | USB host, USB device (USBTMC), LAN (VXI-11), Pass/Fail |
Package Contents
- Digital Oscilloscope SIGLENT SDS1102DL+ — 1 pc.
- Passive Probes — 1 set
- Power Cord — 1 pc.
- Cable USB — 1 pc.
- User Manual — 1 pc.
