Digital Oscilloscope UNI-T UTD2052CEX
id: 867052

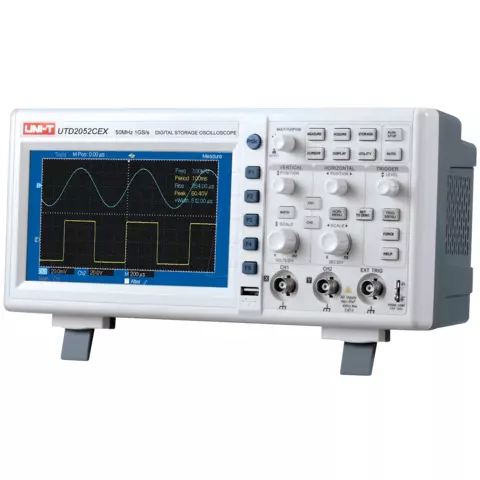

Digital Oscilloscope UNI-T UTD2052CEX
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 250.00
Overview
7 kg 110, 220 V Warranty: 24 months
2-channel digital oscilloscope with 50 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 2,000 waveforms/sec capture rate. Read more
USD 250.00
Buy wholesale and save
You may also like
Four-channel digital oscilloscope with 50 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Availability in stock:
HK
ID: 854402 7 kg 110, 220
Description
UNI-T UTD2052CEX Digital Oscilloscope features the bandwidth of 50 MHz, rise time of ≥7 ns and it also includes the ability to accurately measure two channels at the same time with dedicated inputs for each. The knobs and dials on the front of the device allow fine adjustments to be made during testing, including vertical/horizontal scaling, vertical/horizontal positioning and trigger level. The rest of the buttons on the front of the tester are clearly labelled, so using the device's interface is quick and easy. It also includes a large, high-quality 7 inch colour TFT LCD screen, with both channels represented by different-coloured waveforms on the front of the device.
Features
- Dual-channel 50 MHz DSO.
- Memory depth: 25 kpts.
- Automatic measurements of 28 waveforms.
- Popup menu for utilizing 14 horizontal divisions.
- Large 7" Colour TFT LCD display (800 × 480 resolution).
- Print screen and USB waveform storage.
- Multi-language user interface including French and Spanish.
Technical Specifications
| Model | UTD2052CEX | UTD2102CEX |
|---|---|---|
| Bandwidth | 50 MHz | 100 MHz |
| Channels | 2 | |
| Sample Rate | 1 GSa/s | |
| Memory Depth | 25 kpts | |
| Rise Time | ≤7 ns | ≤3.5 ns |
| Waveform Acquisition Rate | ≥2000 wfms/s | |
| Vertical Sensitivity | 1 mV/div - 20 V/div | |
| Timebase Range | 2 ns/div - 50 s/div | |
| Trigger Modes | Edge, Pulse, Alternate, Video, Slope | |
| Storage | Setup, Wave, Bitmap | |
| Display | 7" 64k colour TFT LCD, 800 × 480 resolution | |
| Interface | USB OTG | |
| Dimensions | 306 × 147 × 122 mm (12 × 5.8 × 4.8") | |
| Weight | 2.2 kg (4.8 lbs) | |
User Manual
Download UNI-T UTD2052CEX User Manual.
Video
Package Contents
- UNI-T UT2052CEX Digital Oscilloscope — 1 pc.
- Probes (1x, 10x Switchable) — 2 pcs.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- PC Software CD — 1 pc.
