Digital Storage Oscilloscope ATTEN ADS1022C+

id: 833983
Digital Storage Oscilloscope ATTEN ADS1022C+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 259.00

Overview

5.7 kg 110, 220 V Warranty: 24 months
Dual-channel oscilloscope with the bandwidth of 25 MHz, sampling frequency of 500 Ms/s and internal memory of up to 32 K. Read more
USD 259.00
USD 259.00
Impossible to estimate the shipping cost

Description

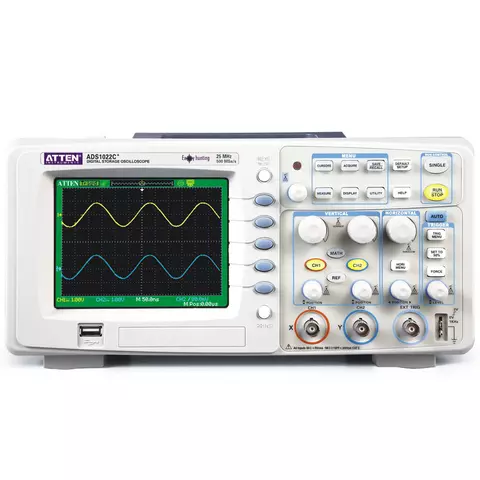

ATTEN ADS1022C+ Digital Storage Oscilloscope is produced on the same platform as the WaveAce oscilloscopes from the world-known manufacturer LeCroy.

ATTEN ADS1022C+ is a 2-channel oscilloscope with the bandwidth of 25MHz, sampling frequency of 500 Ms/s and internal memory of up to 32 K.

32 built-in automatic measurement functions, such as signal time gaps measurement, phase measurements etc. Also it enables user to understand and analyze input waveforms. Additional functions of access control, user-defined digital filters and more make calibration process much easier for user.

User-friendly interface. 11 different menu languages.

Built-in USB-host allows connection of external data storage devices. USB slot on the rear panel allows direct connection of printer or PC/ Usage of EasyScope Computer Software System allows remote operation of the oscilloscope via virtual control panel and provides the possibility of saving waveform data as arrays or images directly to PC.

Features

  • 2 channels Bandwidth - 25 MHz
  • Compact design saves space and allows a comfortable outdoor work.
  • 5.7” Color LCD screen (320x234) Clear and stable waveform display.
  • Sampling rate - 500 MS/s
  • Equivalent sampling rate - 50 GS/s
  • Internal memory - 32K
  • Advanced start functions: frontal, video, pulse length, pulse delay
  • Built-in USB-host, USB-slot for PC connection
  • Digital filter and recorder functions.
  • "Good/bad" mode
  • 32 automatic measurements
  • Pointer measurement modes: manual, tracking and automatic
  • 5 mathematic functions: adding, subtraction, multiplying, division, FFT if memory length = 1K, digital filters (HF, LF, linear, elimination)
  • Frame waveform registering mode (up to 2500 frames, recording and replaying)

Comparative Specifications

Model ADS1152CM ADS1102CM ADS1062CM ADS1042CM ADS1022C
Bandwidth 150 MHz 100 MHz 60 MHz 40 MHz 25 MHz
Sampling Rate 1 GSa/s 500MSa/s
Equivalent Sampling Rate 50 GSa/s
Memory Depth Single Channel: 40Kpts/2Mpts; Double Channels: 20Kpts/1Mpts 4Kpts
Rise Time <2.3ns <3.5ns <5.8ns   <14ns
Input Impedance 1MΩ || 13pF
Sec/div Range 2.5ns/div-50s/div 5ns/div-50s/div   25ns/div-50s/div
Scan: 100ms-50s/div
Display Color LCD (320×234)5.7" LCD

Technical Specifications

Model ADS1022C
Channels: 2 channels
Bandwidth 25 MHz
Sampling rate 500 MS/s
Equivalent sampling rate 50 GS/s
Memory 32K points
Building-up time <14ns
Input impedance 1MOm 13pF
Horizontal sweep time 25 ns/dgt -50 ns/dgt
Display 5.7” Color LCD screen (320x234)
Vertical sensitivity 2 mV/dgt - 5 V/dgt (1-2-5 Sequence)
Vertical resolution 8 bit
A1 and A2 input modes DC, AC, ground
Max. input voltage 400 V( DC + AC, (1MOm input impedance 10X),
5 V(50Om input impedance, BNC )
Launch modes frontal, video, pulse length, pulse delay
Sweep launch modes Auto, normal, singular
Sync sources

CH1, CH2, Ext, Ext/5, AC Line

Store/Recall Up to 20 waveforms and up to 20 control settings profiles High capacity devises can be connected to USB-slot on the osciloscope front panel.
Automatic measurements Vpp, Vamp, Vmax, Vmin, Vup, Vdn, Vavg, Vrms, Negative peak, Positive peak, frequency, period, building-up time, fall time, positive legth, negative length, positive load coefficient, negative load coefficient, delay
Pointer measurements Modes manual, tracking and automatic
Mathematic functions Adding, subtracting, multiplying, dividing, FFT
FFT Windows: Hanning, Hamming, Blackman, Square
XY modes Phase error ±3
Interface themes Clssic, modern, traditional, minimal
Languages Simplified Chinese, Traditional Chinese, English, Arab, French, German, Russian, Spanish, Portuguese, Japanese, Korean
Power supply 100-240V, 40-440Hz CAT II. 50W max
Measurements 305mmx154mmx133m
Weight 2.3kg
USB-host External data storage support
USB Direct PictBridge printing support;
PC control

Package Contents

  • 2 probes 10:1
  • EasyScope computer software system
  • Power cord
  • USB-cable
  • User guide

Specifications

Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 4 kB
Bandwidth
  • 25 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
