Fiber Optic Cleaver FC-6S
id: 848322
Fiber Optic Cleaver FC-6S
Overview
Description
Delivery
Payment
Warranty
USD 56.00
Overview
0.6 kg Warranty: 12 months
Precision tool for single fiber cleaving. Cleaving in 2 steps. Blade lifetime: 36000 operations. Read more
Buy wholesale and save
You may also like
Description

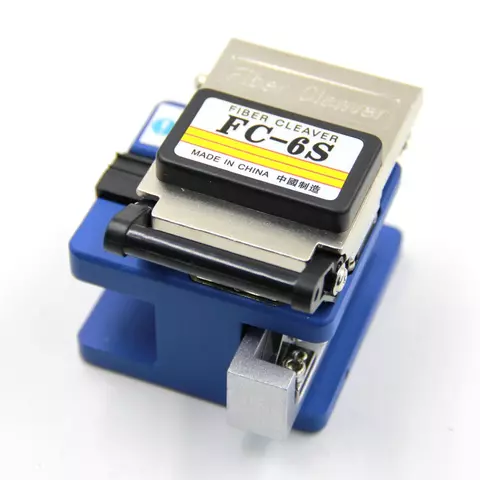

FC-6S is a precision tool for single fiber cleaving.
Features
- Cleaving in 2 steps.
- Blade adjustments: rotation & height.
- Blade lifetime – 36 000 operations.
- Optional fiber scrap collector available.
- Compact and lightweight.
Manuals
Download FC-6 Operation ManualTechnical Specifications
| Applicable fibers | Conventional single fiber |
| Fiber coating diameter | 250 – 900 µm |
| Cladding diameter | 125 µm |
| Fiber cleaving length | 9 mm - 16 mm (Single Fiber - 0.25 mm coating) 10 mm - 16 mm (Single Fiber - 0.9 mm coating) |
| Cleaving angle | 0,5° (for single fiber) |
| Typical blade lifetime | 36 000 operations |
| Dimensions | 63 × 65 × 63 mm |
| Weight | 430 g (without scrap collector); 475 g (with scrap collector) |
Package Contents
Standard Package
- Fiber Optic Cleaver FC-6S — 1 pc.
- Carrying Case — 1 pc.
- Operation Manual — 1 pc.
Optional Accessories
- Fiber cut-off collector CU-FC6
- Replacement blade FCP-20BL
