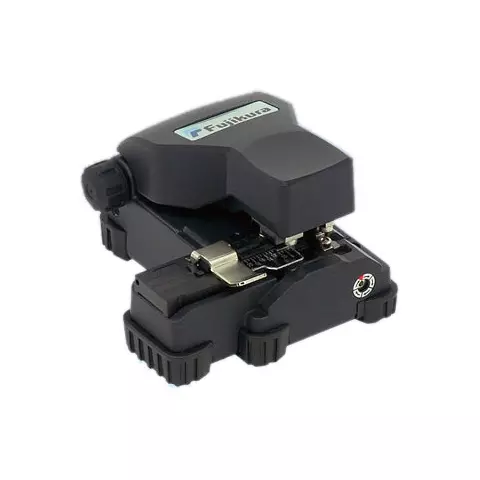

Fiber Optic Cleaver Fujikura CT-10A

id: 835615
Fiber Optic Cleaver Fujikura CT-10A
Overview
Description
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
0.5 kg Warranty: 12 months
Semiautomatic precision fiber optic cleaver for one-step single fiber cleaving.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

Fujikura CT-10A semiautomatic fiber optic cleaver is a multipurpose precision cleaver for single fiber cleavering. The device performs cleaving in one step.

Fujikura CT-10A cleaves fiber using a special CB-02 diamond blade. Each blade position is meant for performing at least 4000 cleaving operations. The blade may be rotated and fixed in 16 different positions. Thus, overall blade lifetime is 64 000 operations. It may be replaced in case of need.

Fujikura CT-10A precision fiber optic cleaver is suitable for operation under restricted space conditions, as it requires no flat surface placement, which enables operation while holding the device in ones hands.

Features

Read more
Description

Fujikura CT-10A semiautomatic fiber optic cleaver is a multipurpose precision cleaver for single fiber cleavering. The device performs cleaving in one step.

Fujikura CT-10A cleaves fiber using a special CB-02 diamond blade. Each blade position is meant for performing at least 4000 cleaving operations. The blade may be rotated and fixed in 16 different positions. Thus, overall blade lifetime is 64 000 operations. It may be replaced in case of need.

Fujikura CT-10A precision fiber optic cleaver is suitable for operation under restricted space conditions, as it requires no flat surface placement, which enables operation while holding the device in ones hands.

Features

  • Applicable for operation with all types of splicers.
  • Minimum actions: cleavering in one step.
  • Highly durable diamond blade.
  • Blade lifetime – 64 000 operations.
  • Compact and lightweight.
  • Requires no flat surface.

Technical Specifications

Applicable fibers Conventional silica single fiber
Fiber diameter 125 µm
Fiber coating diameter 250 & 900 µm
Cleaving angle 0,5° (for single fiber)
Min. blade lifetime 64 000 operations (4000 fibers × 16 positions)
Fiber cleaving length 6-20 mm (coating = 250 µm)
8-20 mm (coating > 250 µm)
Dimensions 115 × 88 × 48 mm
Weight 295 g

Package Contents

  • Fujikura CT-10A Fiber Optic Cleaver Unit (1 pc.)
  • Fiber plate AD-10 (1 pc.)
  • Mini hexagonal wrench (1 pc.)
  • Case CC-25 (1 pc.)
  • User manual (1 pc.)

More Information

Fujikura Fiber Optic Fusion Splicers
