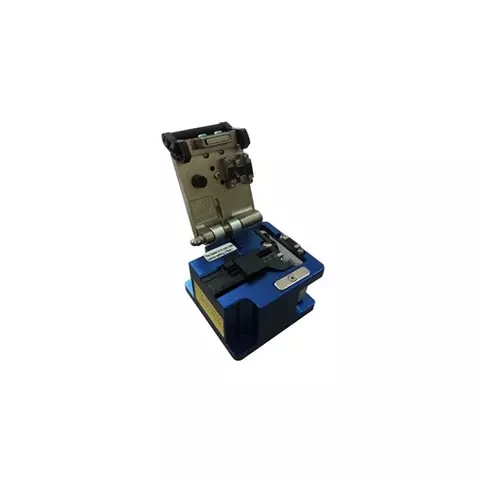

Fiber Optic Cleaver Senter ST3110B

id: 840603
Fiber Optic Cleaver Senter ST3110B
Overview
Description
Video
Delivery
Payment
Warranty
USD 215.00
Notify
when in stock
Overview
0.4 kg Warranty: 12 months
Precision fiber optic cleaver for one-step single fiber cleavering.
USD 215.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 215.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

Senter ST3110B is a precision fiber optic cleaver for one-step single fiber cleavering. Overall blade lifetime is 36 000 operations. Senter ST3110B performs cleavering in one step and it is compatible with Senter ST3100 fusion splicer.

Senter ST3110 Fiber Optic Cleaver Features

  • Applicable for operation with single fiber.
  • Cleavering in one step.
  • Blade lifetime – 36 000 operations.
  • Optional fiber off-cuts collector.
  • Replacement blade.

Video

Youtube video

Senter ST3110 Fiber Optic Cleaver Technical Specifications

Applicable fibers single fiber
Fiber diameter 125 µm
Fiber coating diameter 250 µm
900 µm
Fiber cleaving length (for single fiber) 9 ~ 16 mm (coating 250 µm)
10 ~ 16 mm (coating 900 µm)
Cleaving angle 0.5°
Blade lifetime 36 000 operations
Dimensions 63 × 76 × 63 mm
Weight 380 g

Senter ST3110 Fiber Optic Cleaver Package Contents

  • Senter ST3110B fiber optic cleaver (1 pc.)
  • Carrying case (1 pc.)
  • Operation manual (1 pc.)
Read more
Description

Senter ST3110B is a precision fiber optic cleaver for one-step single fiber cleavering. Overall blade lifetime is 36 000 operations. Senter ST3110B performs cleavering in one step and it is compatible with Senter ST3100 fusion splicer.

Senter ST3110 Fiber Optic Cleaver Features

  • Applicable for operation with single fiber.
  • Cleavering in one step.
  • Blade lifetime – 36 000 operations.
  • Optional fiber off-cuts collector.
  • Replacement blade.

Video

Youtube video

Senter ST3110 Fiber Optic Cleaver Technical Specifications

Applicable fibers single fiber
Fiber diameter 125 µm
Fiber coating diameter 250 µm
900 µm
Fiber cleaving length (for single fiber) 9 ~ 16 mm (coating 250 µm)
10 ~ 16 mm (coating 900 µm)
Cleaving angle 0.5°
Blade lifetime 36 000 operations
Dimensions 63 × 76 × 63 mm
Weight 380 g

Senter ST3110 Fiber Optic Cleaver Package Contents

  • Senter ST3110B fiber optic cleaver (1 pc.)
  • Carrying case (1 pc.)
  • Operation manual (1 pc.)
