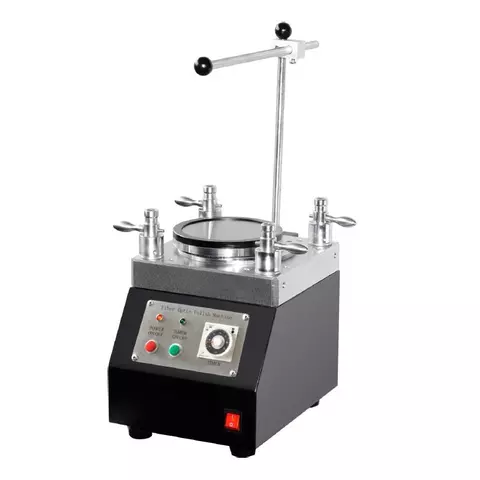

Fiber Optic Connector Polishing Machine Fibretool HW-550C

id: 870302
30 kg Warranty: 12 month (s)
Corner pressure polishing machine for fiber connectors (Ø2.5 mm PC, APC / Ø12.5 mm PC, APC / MT, mini-MT).
USD 1100.00
Notify
when in stock
USD 1100.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

Fibretool HW-550C corner pressure polishing machine for fiber connectors.

Features

  • Polishing jig is fixed with 4 points
  • Polishing pressure is determined by coil spring and elastic cushion
  • May be used with most types of connectors
  • The polisher is made of high quality stainless steel with heat treatment
  • Centering accuracy
  • Quick jigs changing

Technical Specifications

Polishing Capacity (max) 20 connectors for FC, SC and ST / 24 connectors for MU/LC
Application Ø2.5 mm PC, APC / Ø12.5 mm PC, APC / MT, mini-MT
Input Voltage 100-120 V AC, 50/60 Hz or 220-240 V AC, 50/60 Hz
Dimensions 230 x 255 x 230 mm
Weight 27.5 kg
