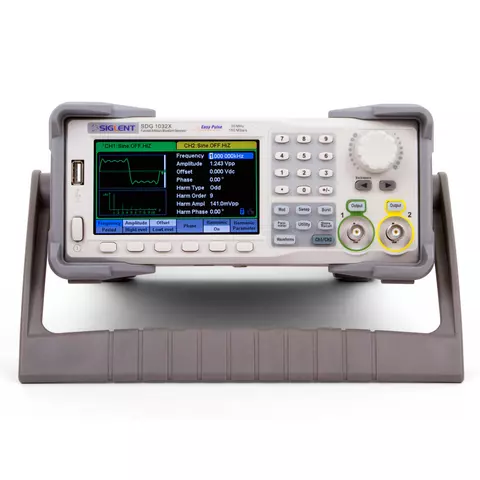

Function/Arbitrary Waveform Generator SIGLENT SDG1032X

No results found for your request.
ID: 868138 5.5 kg
Availability in stock: HK
Warranty: 36 month (s)
Bestseller

USD 399.00
Note! This item is shipped within 7 working days.
In stock
Add to cart
+ Gift

Dual-channel function/arbitary waveform generator with 30 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
  • Overview
  • Specifications
  • Video
  • Delivery
  • Payment
  • Warranty

Overview

SIGLENT SDG1032X is a device of SDG1000X series of dual-channel function/arbitrary waveform generators. SDG1000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Features

  • Dual-channel, 30 MHz bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range.
  • High-performance sampling system with 150 MSa/s sampling rate and 14-bit vertical resolution.
  • Innovative TrueArb technology prevents the occurrence of noise and interference.
  • Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
  • 30 MHz square wave generator with jitter of less than 300 ps + 0.000005
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PWM, PSK.
  • Sweep and Burst functions.
  • High precision Frequency Counter.
  • Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11). Optional interface: GPIB.
  • 4.3” touch screen display for convenient control.

Technical Specifications

Maximum bandwidth 30 MHz
Number of channels 2
Sampling rate 150 MSa/s
Wavelength 14 Kpts
Frequency resolution 1 μHz
Vertical resolution 14 bit
Interfaces USB Host, USB Device (USBTMC), LAN (VXI-11)
Dimensions, W×H×D 260.3 mm × 107.2 mm × 295.7 mm
Weight 3.43 kg

Video

Package Contents

  • Siglent SDG1032X Function/Arbitrary Waveform Generator — 1 pc.
  • Power cable — 1 pc.
  • USB cable — 1 pc.
  • Warranty — 1 pc.

Specifications

Channels
  • dual channel
Max. signal frequency
  • 30 MHz
