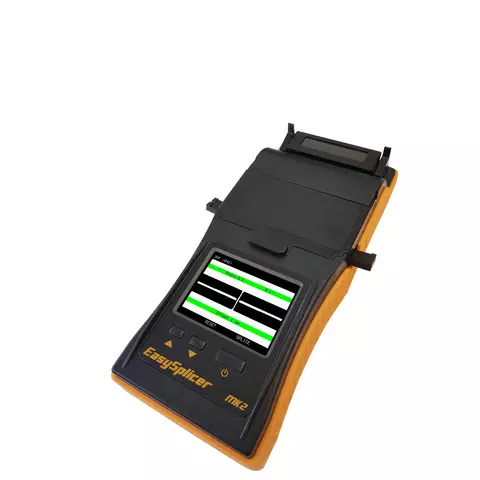

Fusion Splicer EasySplicer Mark 2

id: 865120
Fusion Splicer EasySplicer Mark 2
Overview
Description
Video
Delivery
Payment
Warranty
USD 1380.00
Notify
when in stock
Overview
New
2.66 kg 110, 220 V Warranty: 24 months
V-groove cladding alignment fusion splicer for SM and MM optical fibers. Splice time: 7 sec, heating time: 35 sec. 2,8-inch color LCD.
USD 1380.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 1380.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Fusion Splicer DVP 740
Add to wishlist
Fusion Splicer DVP-740
USD 994.01
USD 899.00
Add to wishlist
Add to cart
Core-to-core alignment system fusion splicer for SM, MM, DS, NZDS(G655), EDF and other fibers. Splicing time: 8 s, heating time: 35 s.
Availability in stock: HK
Shipping cost
ID: 861732 10 kg 110, 220
Handheld Fusion Splicer Jilong KL 510E
Add to wishlist
Handheld Fusion Splicer Jilong KL-510E
USD 1250.00
Add to wishlist
Add to cart
Compact device weighing 1.1 kg. 9 seconds splice time and 30 seconds heat time. Core-core or clad-clad alignment Designed for splicing SM, MM, NZDS optical fibers.
Availability in stock: HK
Shipping cost
ID: 894446 8 kg
Description

Fusion Splicer EasySplicer Mark 2 is a small and handy fiber optic fusion splicer designed for working daily with fiber optic installations. It has a rugged design and may be used for outdoor applications. EasySplicer was designed for all the newcomers in the business: installers of FTTH, electricians (who are getting more and more fiber jobs to do) and TV-installers (merging from Digital-TV to fiber).

EasySplicer Mark 2 operates with three buttons only and mostly the user only have to use the main button to perform the splicing. Still, the precision of the unit is extremely high. It makes typical splicing with a loss of 0,03 dB (Single mode). After splicing it pull tests the splice and makes a loss estimation of the splice were it also tells if something is wrong. Such information is also provided before splicing (Bad fiber, Dirty fiber and Too much offset).

The battery-pack inside the unit is small but very powerful. The unit can perform some 60 splices before it needs to be recharged. Extra battery-packs can also be sold separately (and easily be exchanged in the unit by the installer).

EasySplicer Mark 2 is constantly calibrating itself for environment changes (like; moisture, air pressure and temperature). This can also be done manually, for ex. when starting the work of the day. Calibration is very easily performed (within seconds) and makes sure that the splicing is made perfect.

Read more
Description

Fusion Splicer EasySplicer Mark 2 is a small and handy fiber optic fusion splicer designed for working daily with fiber optic installations. It has a rugged design and may be used for outdoor applications. EasySplicer was designed for all the newcomers in the business: installers of FTTH, electricians (who are getting more and more fiber jobs to do) and TV-installers (merging from Digital-TV to fiber).

EasySplicer Mark 2 operates with three buttons only and mostly the user only have to use the main button to perform the splicing. Still, the precision of the unit is extremely high. It makes typical splicing with a loss of 0,03 dB (Single mode). After splicing it pull tests the splice and makes a loss estimation of the splice were it also tells if something is wrong. Such information is also provided before splicing (Bad fiber, Dirty fiber and Too much offset).

The battery-pack inside the unit is small but very powerful. The unit can perform some 60 splices before it needs to be recharged. Extra battery-packs can also be sold separately (and easily be exchanged in the unit by the installer).

EasySplicer Mark 2 is constantly calibrating itself for environment changes (like; moisture, air pressure and temperature). This can also be done manually, for ex. when starting the work of the day. Calibration is very easily performed (within seconds) and makes sure that the splicing is made perfect.

EasySplicer Mark 2 is using the V-grove method for splicing (same as Ribbon-splicers are using) which has made it possible to keep the size small of the unit. It is easy to service and maintain (even by the user). In all it makes this unit extremely cost effective.

EasySplicer Mark 2 is one of the most inexpensive splicers on the market, yet with a performance of 3-4 times more expensive units. The model is upgraded with a ceramic/teflon-heater which lso is ready for SOC-connectors (Splice on Connectors).

Features

  • Used for singlemode and multimode fibers.
  • Less than 7 seconds splicing time.
  • Operates with three buttons only.
  • Built in oven.
  • Loss estimation.
  • Fiber fault detection.
  • SD-card for logging.
  • Easy to use and to carry along.
  • Perfect for FTTH installation.

Video

Youtube video

Technical Specifications

Splicing method V-grove (cladding alignment)
Fiber Types SMF,MMF 50/125 and 62.5/125 um fiber, 250 um primary and 900 um secondary coated fiber
Fiber Handling Fiber holders, 3 pairs (250, 900 and Loose tube)
Splice Programs 3 pre-defined. SMF, MMF, OM1
Typical Splice Loss 0.03 dB SMF, 0.01 dB MMF
Altitude Compensation Automatic up to 4100 meters altitude with compensation for moisture and temperature
Typical Cycle Time 7 s + 35 s (splice cycle + oven cycle)
Sleeve Dimensions Max 64 mm length, 2-7 mm diameter supported by oven
Communication USB, mini USB plug
Memory Internal: 1 MB
External: SD-Card
Display LCD, color, 2,8", 320×240 pixels
Oven Ceramic/teflon-type. 40 mm sleeves in about 35 sec
Magnification Camera 140x
Operating Environment 0-40°C, max 95% RH, non-condensing
Power Sources External power supply, 6 V, 1.25 A, 100-240 V AC 50-60 Hz
Built-in 3400 mAh Li-Ion battery pack
Splicing Capacity 60 splicing + oven cycles
Dimensions 230 × 98 × 53 mm
Weight 800 g

Data Sheet

PDF  Download EasySplicer Mark 2 Data Sheet.

Package Contents

  • Fusion Splicer EasySplicer Mark 2 — 1 pc.
  • Oven (built in)— 1 pc.
  • Fiber holders (250 μm, 900 μm and loose tube) — 3 pairs
  • Fiber cleaver — 1 pc.
  • Fiber stripper — 1 pc.
  • Rechargeable battery pack (built in) — 1 pc.
  • Power supply adapter — 1 pc.
  • Carrying case — 1 pc.
