Overview
10 kg Warranty: 24 months
Core-to-core alignment single fiber splicer designed for splicing single-count optical fibers. Splicing time: 5 s, heating time: 15 s.
USD 1100.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 1100.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Fusion Splicer DVP 740
Add to wishlist
Fusion Splicer DVP-740
USD 994.01
USD 899.00
Add to wishlist
Add to cart
Core-to-core alignment system fusion splicer for SM, MM, DS, NZDS(G655), EDF and other fibers. Splicing time: 8 s, heating time: 35 s.
Availability in stock: HK
Shipping cost
ID: 861732 10 kg 110, 220
Description

Signalfire AI-9 is an optical fiber fusion splicer with the latest core alignment technology with auto focus and six motors. Unlike previous models, AI-9 has build-in power meter and visual fault locator. The device is equipped with an industrial quad-core CPU and a large color screen. Screen brightness can be adjusted for ease of use under intense sunlight. AI-9 has an intuitive interface with up to 300 times focus magnifications, which simplifies observation of the welding process.

Splicing time 5 s, heating time 15 s. Large capacity lithium battery, a fully charged state can splice & heat 240 fibers, also the splicer machine can charge the phone. Signalfire AI-9 comes in a sturdy box with a toolbox and a detachable element that can be used as a small table or stool. Built-in lighting system guarantees the comfort of use during the night construction or repair.

The core parts are made of high quality materials: the stepping motor is manufactured by Siemens (Germany), the linear guides are Roth ROUST (Germany), the body is made of aviation metal, and the lithium battery is manufactured by Sanyo (Japan).

The combination of advanced technology and design ensures reliability, efficiency and convenience.

Read more
Description

Signalfire AI-9 is an optical fiber fusion splicer with the latest core alignment technology with auto focus and six motors. Unlike previous models, AI-9 has build-in power meter and visual fault locator. The device is equipped with an industrial quad-core CPU and a large color screen. Screen brightness can be adjusted for ease of use under intense sunlight. AI-9 has an intuitive interface with up to 300 times focus magnifications, which simplifies observation of the welding process.

Splicing time 5 s, heating time 15 s. Large capacity lithium battery, a fully charged state can splice & heat 240 fibers, also the splicer machine can charge the phone. Signalfire AI-9 comes in a sturdy box with a toolbox and a detachable element that can be used as a small table or stool. Built-in lighting system guarantees the comfort of use during the night construction or repair.

The core parts are made of high quality materials: the stepping motor is manufactured by Siemens (Germany), the linear guides are Roth ROUST (Germany), the body is made of aviation metal, and the lithium battery is manufactured by Sanyo (Japan).

The combination of advanced technology and design ensures reliability, efficiency and convenience.

Features

  • Core alignment technology.
  • Build-in power meter (wavelenght: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm; measuring range: -70 dBm...+6 dBm; measurement error: < 0,3 dB).
  • Build-in visual fault locator (wavelenght: 650 nm; power: 15 mW; modes: constant or 2 Hz tone).
  • Six motors.
  • Quad-core CPU.
  • Large color screen.
  • 300 times focus magnifications.
  • Splicing time 5 s, heating time 15 s.
  • A fully charged state can splice & heat 240 fibers.
  • Comes with a toolbox and a detachable element that can be used as a stool or small table.
  • Compact design and high-quality materials.

Technical Specifications

Model Signalfire AI-9 Signalfire AI-8 Signalfire AI-7
Typical Splicing Time 5 s 6 s 8 s
Typical Heating Time 15 s 15 s 18 s
Applicable Fibers SM (G.652&G.657), MM (G.651), DS (G.657), NZDS (G.655)
Splice Loss SM: 0.025 dB, MM: 0.01 dB, DS/NZDS: 0.04 dB
Focus Mode autofocus
Fiber Alignment core/cladding alignment; manual alignment
Control Technology real-time control and calibration of fusion ARC
Return Loss >> 60 dB
Fiber Diameter cladding diameter 80-150 μm; coating diameter 100-1000 μm
Fiber Cleave Length 8 ~ 16 mm (coverage up to 250-1000 μm)
Heat Shrinkable Tube 60 mm, 40 mm
Tension Test standard 2N
Fiber Holders multi function holders
Display 5.1 inch TFT color display
Software Upgrade mobile APP update, turn on Bluetooth sync to the machine
Splicing Mode normal / high precision splicing
Splicing Record Storage synchronize to the phone, the server to cloud storage unlimited
Built-in Battery 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours
Power Supply input AC100-240 V 50 / 60 HZ, output DC13.5 V / 4 A
Operating Conditions temperature -15 ~ +50 ℃
humidity <95%
working altitude: 0 ~ 5000 m
max. wind speed: ≤ 15 m/s
Dimensions fusion splicer 130 × 122 × 148 mm
carrying case 270 × 237 × 293 mm
Weight fusion splicer with battery 2.08 kg
whole kit 7.1 kg

Video

Youtube video

User Manual

PDF  Download Signalfire AI-9 user manual.

Package Contents

  • Fusion Splicer Kit Signalfire AI-9 — 1 pc.
  • Spare Electrodes — 1 set.

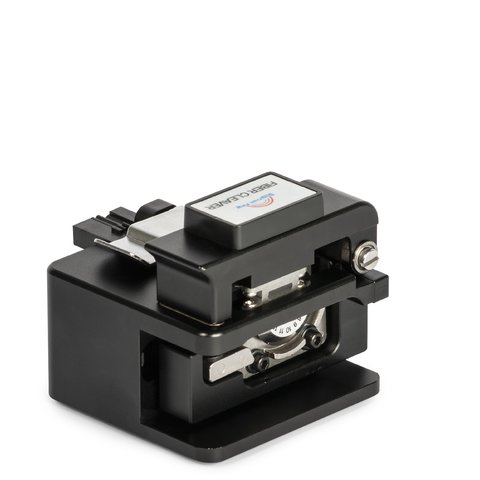

  • Fiber Cleaver — 1 pc.
  • Fiber Optic Stripper — 1 pc.
  • Wire Stripper — 1 pc.
  • Hex Key — 1 set.
  • Alcohol Bottle — 1 pc.
  • Brush — 1 pc.
  • Fiber for ARC Calibration — 1 set.
  • Strap — 1 pc.

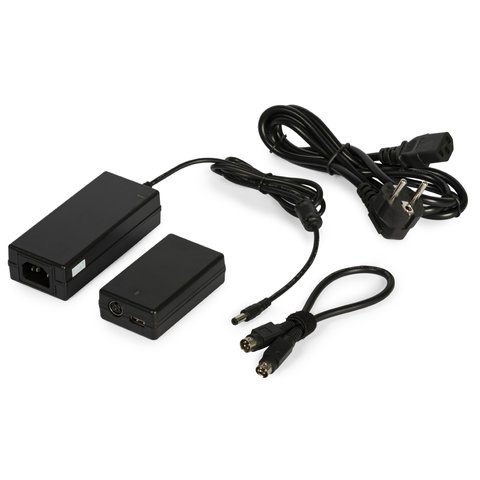

  • Power Adapter — 1 pc.
  • Carrying Case — 1 pc.
  • User Manual — 1 pc.
  • Warranty Card — 1 pc.
