Handheld Digital Oscilloscope Hantek DSO8060
id: 821426
Handheld Digital Oscilloscope Hantek DSO8060
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 540.00
Overview
3 kg 110, 220 V Warranty: 12 months

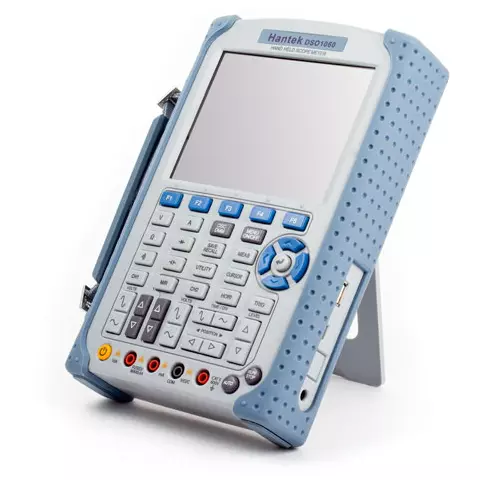

Hantek DSO8060 is the double-channel digital oscilloscope with installed multimeter and signal source. Bandwidth 60MHz. Real-time sampling rate 250MSa/s. Frequency range 1-25MHz. Read more
Buy wholesale and save
Description
Hantek DSO8060 Handheld Digital Oscilloscope is the double-channel digital oscilloscope with installed multimeter and signal source. Bandwidth is 60MHz. Real-time sampling rate is 250MSa/s. Frequency range is 1-25MHz. Multimeter mode allows user to measure AC/DC current and voltage, resistance, capacitance, continuity and test diodes.
This handheld digital oscilloscope is ideal for production test, field service, research, design, education and training involving applications of analog circuit tests and troubleshooting.
Features
- Large 5.7" TFT color LCD display with backlight.
- USB Host/Device 2.0 full-speed interface with removable disk support. RS-232/LAN optional. Easy to control with PC or at long-distance.
- Bandwidth 60MHz
- Functions of high precision digital multimeter(6000 counts).
- AC/DC voltage
- AC/DC current
- Resistance
- Capacitance
- Continuity
- Diode test
- High refresh rate. High real-time sample rate 250MSa/s, 50GSa/s equivalent-time sample rate.
- Math: FFT , + , - , * , / ,X-Y. Pass/Fail function. 22 automatic measurements.
- Multiform trigger mode, 2 separate time base in ALT trigger mode. Easy to see 2 signal with different frequencies.
- 1000 waveform records.
- Installed battery: 6 hours work time.
- Saving waveforms in .jpg/.bmp format, MS excel/word files.
- Labview\VB\VC second design instance.
- Software compatible with: Windows NT, Windows 2000, Windows XP ,VISTA
Manuals
Download Hantek DSO8060 Handheld Digital Oscilloscope User Manual
Articles & Reviews
Hantek DSO8060 Digital Oscilloscope Overview
Technical Specifications
| Vertical | |||||
|---|---|---|---|---|---|
| Channels | 2 | ||||
| Bandwidth, MHz | 60 | ||||
| Rise Time, ns | 5.8 | ||||
| Input Sensitivity | 10mV/div to 5V/div | ||||
| Input Impedance | Resistance 1M | ||||
| Capacitance 15 pF | |||||
| Input Coupling | AC, DC and GND | ||||
| Vertical Resolution | 8 bits | ||||
| Maximum Input | 300V (DC+AC Peak) | ||||
| Horizontal | |||||
| Real-Time Sampling Rate | 250MSa/s | ||||
| Equivalent Sampling Rate | 50GSa/S | ||||
| Time Base Range | 5ns/div~1000s/div | ||||
| Memory Depth | 32k at Single Channel, 16k at Dual Channel | ||||
| Time Base Precision | ±50ppm | ||||
| Trigger | |||||
| Source | CH1, CH2 | ||||
| Mode | Edge, Video, Pulse Width, Alternative | ||||
| X-Y Mode | |||||
| X-Axis Input | Channel 1 | ||||
| Y-Axis Input | Channel 2 | ||||
| Phase Shift | Max.3 degree | ||||
| Cursors and Measurement | |||||
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot | ||||
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | ||||
| Delay Measurement | Delay time from ch1 rising edge to ch2 rising edge, Delay time from ch1 falling edge to ch2 falling edge | ||||
| Cursors Measurement | Manual, Track, Auto Measure Modes | ||||
| Multimeter Mode | |||||
| Maximum Resolution | 6,000 Counts | ||||
| Testing Modes | Ac/DC voltage, AC/DC current, resistance, capacitance, diode test, continuity | ||||
| Maximum Input Voltage | AC: 600V, DC: 800V | ||||
| Maximum Input Current | AC: 10A, DC: 10A | ||||
| Input Impedance | 10 MΩ | ||||
| Signal Source Mode | |||||
| Waveform Frequency | DC~25MHz | ||||
| DAC Clock | 2K~200MHz adjustable | ||||
| Frequency Resolution | 0.1% | ||||
| Channel count | 1CH waveform output | ||||
| Waveform Deepth | 4KSa | ||||
| Vertical Resolution | 12 | ||||
| Frequency Stability | <30ppm | ||||
| Waveform Range | ±3.5V Max. | ||||
| Output Impedance | 50Ω | ||||
| Output Current | 50mA Ipeak=50mA | ||||
| System BW | 25M | ||||
| Harmonic Distortion | -50dBc(1KHz), -40dBc(10KHz) | ||||
| Measure Frequncy Channel | |||||
| Frequency Range | DC~60MHz | ||||
| Input Range | 400mVpp~18Vpp | ||||
| Coupling Mode | DC | ||||
| Frequency Measurement Accuracy | ±Time Base Error ±1 Count | ||||
| Input Impedance | > 100KΩ | ||||
| General information | |||||
| Waveform Signal Process | CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert | ||||
| Storage | 15 Waveforms and Setups | ||||
| Display | TFT LCD Type 5.7 Inch with LED Backlight Display | ||||
| Display Resolution | 240 (Vertical) x 320 (Horizontal) Dots | ||||
| USB | USB Host / Device 2.0 Full Speed Supported | ||||
| Optional | RS232, LAN | ||||
| Power Source | AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA, Battery Power (Installed) 6 Hours (Li-ion Battery) | ||||
| Dimension | 245 x 163 x 52 mm | ||||
| Weight | 1.2kg | ||||
Hantek DSO8060 Handheld Digital Oscilloscope Package Content
- Hantek DSO8060 Digital Oscilloscope
- Box (1pc.)
- Carrying bag (1pc.)
- User manual (1pc.)
- Disc with software (1pc.)
- Multimeter test leads (2pcs.)
- Oscilloscope probes (2pcs.)
- USB (1pc.)
- Power adapter (1pc.)
 |
 |
| Hantek DSO8060 can be connected to a PC | MATH, REF |
 |
 |
| Multimeter mode | ALT MAG, easy to search for signal |
 |
 |
| The cursor function | 22 automatic measurements |
 |
 |
| X-Y mode | FFT |
 |
 |
| ALT trigger mode, dual time base, easy to observe two signals of different frequency | Built-in help system |
 |
 |
| Test signal more than 100MHz by ETS mode | Document management, and convenient file storage and management |
