Handheld Digital Oscilloscope OWON HDS242S
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 111.19
Overview
1.2 kg Warranty: 12 months
Handled dual-channel oscilloscope/multimeter with a built-in waveform generator, 40 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5-inch LCD display Read more
USD 111.19
Description

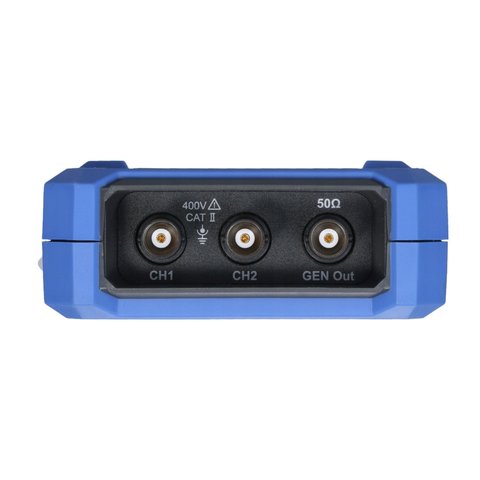

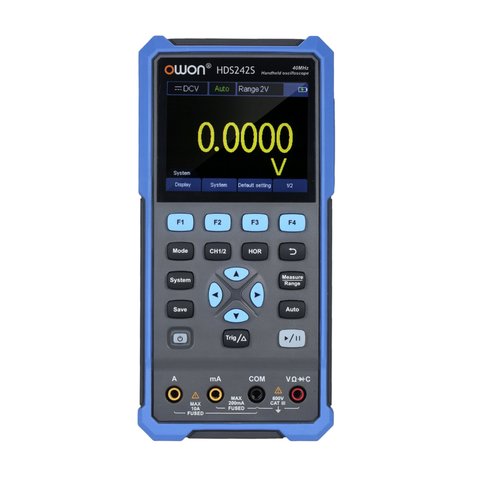

OWON HDS242S is a handled dual channel oscilloscope with a built-in waveform generator, 40 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5" LCD. The OWON HDS242S comes equipped with a built-in 20,000-count multimeter, measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD allows using the oscilloscope in field conditions.
Features
- Dual channel capability
- 40 MHz bandwidth, 250 MSa/s sampling rate
- 3 in 1 device: oscilloscope + built-in arbitrary waveform generator + multimeter
- Multimeter testing modes: voltage, current, resistance, capacitance, diode, and continuity test
- 3.5" high contrast color LCD with high resolution
- Rechargeable 18650 battery with ≤3W of power consumption provides up to 6 hours of continuous use
- USB Type-C interface, SCPI command support
- Self-calibration function
Technical Specifications
| Oscilloscope | ||
|---|---|---|
| Channels | 2 | |
| Bandwidth | 40 MHz | |
| Sample Rate | 250 MSa/s (single channel) | |
| 125 MSa/s (dual channel) | ||
| Acquisition Mode | Normal, Peak detect | |
| Record Length | 8K | |
| Waveform Refresh Rate | 10,000 wfrms/s | |
| Input Coupling | DC, AC, and Ground | |
| Input Impedance | 1 MΩ±2%, in parallel with 16pF±10pF | |
| Probe Attenuation Factors | 1X,10X,100X,1000X,10000X | |
| Max. input Voltage | 400V (DC+AC, PK-PK, 1 MΩ input impedance) (10:1 probe attenuation) | |
| Bandwidth Limit (typical) | 20 MHz | |
| Horizontal Scale | 5 ns/div - 1000 s/div, step by 1 - 2 - 5 | |
| Vertical Sensitivity | 10 mV/div - 10 V/div | |
| Vertical Resolution | 8 bits | |
| Trigger Type | Edge | |
| Trigger Modes | Auto, Normal, Single | |
| Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min | |
| Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |
| Multimeter | ||
| Max. Resolution | 20,000 counts | |
| Testing Mode | DC voltage | 0.01 mV - 1000 V (±0.5% + 5) |
| AC voltage | 0.01 mV - 750 V (±0.8% + 5) | |
| DC current | 10 μA - 10 A (±0.8% + 2) | |
| AC current | 10 μA - 10 A (±1% + 5) | |
| Resistance | 0.01 Ω - 100 MΩ (±0.8% + 3) | |
| Capacitance | 1 pF - 2 mF (±3% + 10) | |
| Diode testing | 0-2 V | |
| Continuity | ||
| Input Impedance | 10 MΩ | |
| Max Input Voltage | AC 750 V, DC 1000 V | |
| Max Input Current | DC: 10 A; AC: 10 A | |
| Arbitrary Waveform Generator | ||
| Waveform frequency | Sine | 0.1 Hz ~ 25 MHz |
| Square | 0.1 Hz ~ 5 MHz | |
| Ramp | 0.1 Hz ~ 1 MHz | |
| Pulse | 0.1 Hz ~ 5 MHz | |
| EXP | 0.1 Hz ~ 5 MHz | |
| Sampling | 125 MSa/s | |
| Amplitude | 0.01 Vpp ~ 2.5 Vpp (50 Ω) | |
| DC offset (High Z) | ±(2.5V – Amplitude Vpp/2) | |
| Frequency resolution | 0.01% | |
| Channels | 1 | |
| Waveform depth | 8 k | |
| Vertical resolution | 14 bit | |
| Output impedance | 50 Ω | |
| General Specifications | ||
| Display | 3.5" LCD | |
| Interface | USB Type-C | |
| Dimensions | 195 mm × 95 mm × 38 mm | |
| Weight | 505 g | |
User Manual
Download OWON HDS200 Series Oscilloscope User Manual.
Package Contents
- Handheld Digital Oscilloscope OWON HDS242S — 1 pc.
- Oscilloscope Measuring Probes — 1 set
- Multimeter Measuring Probes — 1 set
- USB Cable — 1 pc.
- Adapter — 1 pc.
- Power Supply — 1 pc.
- Storage/Carrying Bag — 1 pc.
- User Manual — 1 pc.
- Spare fuse 2.5A, 250V — 1 pc.
- Safety instructions — 1 pc.
