Handheld Digital Oscilloscope SIGLENT SHS1062 with Insulated Channels

id: 837927
Handheld Digital Oscilloscope SIGLENT SHS1062 with Insulated Channels
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
7.5 kg 110, 220 V Warranty: 36 months
Handheld 60 MHz digital oscilloscope with dual insulated channels (1 GS/s, 5,6" TFT LCD), a 6000 count digital multimeter, and a trend recorder.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

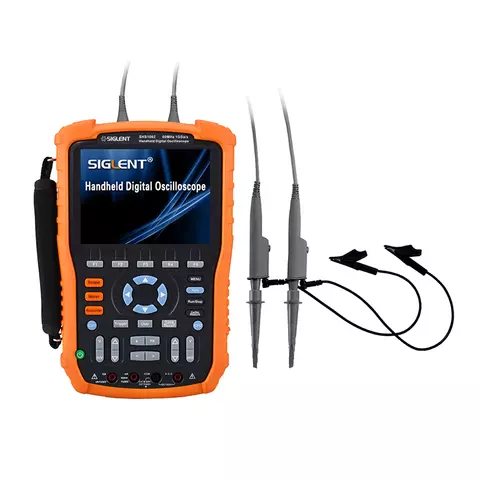

SIGLENT SHS1062 is a handheld dual-channel digital oscilloscope with the functions of digital multimeter and a trend recorder. It is characterized by fully insulated inputs allowing to perform operations under high voltage (up to 1000 V). The device may be used for industrial purposes, for maintenance as well as in education and training.

SIGLENT SHS1062 Features

  • Acts as a 2-channel 60 MHz oscilloscope, a 6000 count digital multimeter, and a trend recorder.
  • Insulated inputs.
  • 32 automatic waveform measurements.
  • 3 cursor measure modes.
  • Math functions: adding, subtraction, multiplying, division, FFT.
  • Digital multimeter measurings:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Capacitance
    • Diode test
    • Continuity test
  • Color LCD.
  • Battery power supply.
  • Safety standard: EN 61010-031.
  • Compact and lightweight.

SIGLENT SHS1062 Technical Specifications

Oscilloscope Specifications
Bandwidth 60 MHz
Rise Time ≤ 5.8 ns
Sample Rate Real-time sample rate: 1 GS/s;
Equivalent sample rate: 50 GS/s
Vertical Sensitivity 5 mV ~ 100 V/div
Memory Depth 2M
Scanning Speed 5 ns ~50 s/div, Scan: 100 ms ~ 50 s/div
Trigger Type Edge, Pulse, Video, Alternate, Slope
Vertical Resolution 8 bit
Interface USB Device, USB Host
Waveform Math +, -, *, /, FFT
Display Type 5,6" color TFT LCD, 320×234
Multimeter Specifications
Resistance measurement Range: 600 Ω – 60 MΩ
Accuracy: ±0.5% ±5 digits
Direct Voltage Measurement Range: 60 mV – 1000 V
Accuracy: ±0.5% ±5 digits
Alternating Voltage Measurement Range: 60 mV – 750 V
Accuracy: ±1% ±5 digits
Direct Current Measurement Range: 60 mV – 10 A
Accuracy: ±1% ±5 digits
Alternating Current Measurement Range: 60 mV – 10 A
Accuracy: ±1% ±5 digits
Capacitance Measurement 40.00 nF (±3% ±1 digit)
400.0 nF– 400.0 µ F (±1% ±digit)
On-off Test < 30 Ω
Diode Test 0 V ~ 2.0 V
Tendency Chart Function 1.6 M Points
Deep Memory Waveform Records 7 M Points
Measurement Pattern Automatic / Manual
Max. Display Digits 6000
Isolation Level
Input Port Directly 300 V CAT II
10:1 Probe Input 1000 V CAT II, 600 V CAT III
METER Maximum Input 1000 V CAT II
Oscilloscope BNC Reference to the Ground 1000 V CAT II, 600 V CAT III
Between Channels 1000 V CAT II, 600 V CAT III
Multimeter To The Ground To COM 600 V CAT II, 300 V CAT III
Multimeter Maximum Input Voltage DC 1000 V, AC 750 V
General Characteristics
Power Supply Built-in rechargeable Lithium battery: 7.4 V, 4500 mAh (> 3 hours operation)
External DC Adapter, Input: 100-240 V, 50/60 Hz, Output: 9 V, 2.8 A
Display Type color, TFT-LCD, 320×234
Weight 1.5 kg
Dimensions 163.2 × 259.5 × 53.3 mm

Additional Information

Download SIGLENT SHS1062 Data Sheet.

SIGLENT SHS1062 Package Contents

  • Handheld Digital Oscilloscope SIGLENT SHS1062 (1 pc.)
  • Passive probes (2 pcs.)
  • Power Cord (1 pc.)
  • DC Adapter (1 pc.)
  • Multimeter Pen (1 pc.)
Read more
Description

SIGLENT SHS1062 is a handheld dual-channel digital oscilloscope with the functions of digital multimeter and a trend recorder. It is characterized by fully insulated inputs allowing to perform operations under high voltage (up to 1000 V). The device may be used for industrial purposes, for maintenance as well as in education and training.

SIGLENT SHS1062 Features

  • Acts as a 2-channel 60 MHz oscilloscope, a 6000 count digital multimeter, and a trend recorder.
  • Insulated inputs.
  • 32 automatic waveform measurements.
  • 3 cursor measure modes.
  • Math functions: adding, subtraction, multiplying, division, FFT.
  • Digital multimeter measurings:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Capacitance
    • Diode test
    • Continuity test
  • Color LCD.
  • Battery power supply.
  • Safety standard: EN 61010-031.
  • Compact and lightweight.

SIGLENT SHS1062 Technical Specifications

Oscilloscope Specifications
Bandwidth 60 MHz
Rise Time ≤ 5.8 ns
Sample Rate Real-time sample rate: 1 GS/s;
Equivalent sample rate: 50 GS/s
Vertical Sensitivity 5 mV ~ 100 V/div
Memory Depth 2M
Scanning Speed 5 ns ~50 s/div, Scan: 100 ms ~ 50 s/div
Trigger Type Edge, Pulse, Video, Alternate, Slope
Vertical Resolution 8 bit
Interface USB Device, USB Host
Waveform Math +, -, *, /, FFT
Display Type 5,6" color TFT LCD, 320×234
Multimeter Specifications
Resistance measurement Range: 600 Ω – 60 MΩ
Accuracy: ±0.5% ±5 digits
Direct Voltage Measurement Range: 60 mV – 1000 V
Accuracy: ±0.5% ±5 digits
Alternating Voltage Measurement Range: 60 mV – 750 V
Accuracy: ±1% ±5 digits
Direct Current Measurement Range: 60 mV – 10 A
Accuracy: ±1% ±5 digits
Alternating Current Measurement Range: 60 mV – 10 A
Accuracy: ±1% ±5 digits
Capacitance Measurement 40.00 nF (±3% ±1 digit)
400.0 nF– 400.0 µ F (±1% ±digit)
On-off Test < 30 Ω
Diode Test 0 V ~ 2.0 V
Tendency Chart Function 1.6 M Points
Deep Memory Waveform Records 7 M Points
Measurement Pattern Automatic / Manual
Max. Display Digits 6000
Isolation Level
Input Port Directly 300 V CAT II
10:1 Probe Input 1000 V CAT II, 600 V CAT III
METER Maximum Input 1000 V CAT II
Oscilloscope BNC Reference to the Ground 1000 V CAT II, 600 V CAT III
Between Channels 1000 V CAT II, 600 V CAT III
Multimeter To The Ground To COM 600 V CAT II, 300 V CAT III
Multimeter Maximum Input Voltage DC 1000 V, AC 750 V
General Characteristics
Power Supply Built-in rechargeable Lithium battery: 7.4 V, 4500 mAh (> 3 hours operation)
External DC Adapter, Input: 100-240 V, 50/60 Hz, Output: 9 V, 2.8 A
Display Type color, TFT-LCD, 320×234
Weight 1.5 kg
Dimensions 163.2 × 259.5 × 53.3 mm

Additional Information

Download SIGLENT SHS1062 Data Sheet.

SIGLENT SHS1062 Package Contents

  • Handheld Digital Oscilloscope SIGLENT SHS1062 (1 pc.)
  • Passive probes (2 pcs.)
  • Power Cord (1 pc.)
  • DC Adapter (1 pc.)
  • Multimeter Pen (1 pc.)
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 2 MB
Bandwidth
  • 60 MHz
Type
  • portable
  • multimeter
  • with insulated channels
Sample Rate
  • 1 GS/s
