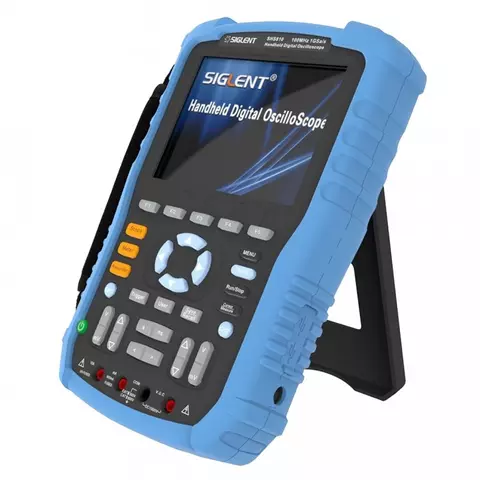

SIGLENT SHS815 is SHS800 series dual channel handheld oscilloscope with 150 MHz bandwidth, 1 GS/s sample rate and 2 M memory depth. SIGLENT SHS815 handheld digital oscilloscope also performs multimeter functions measuring AC/DC voltage and current, resistance, capacity and performing diode and continuity check.

Features

  • Dual channel bandwidth 150 MHz
  • Sampling rate 1 GS/s
  • Equivalent sampling rate 50 GS/s
  • 5 mathematic functions: adding, subtraction, multiplying, division, FFT
  • Multimeter functions:
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
    • Continuity check
    • Diode check
  • Memory depth 2 M
  • 32 types of automatic weveform measurements, 3 types of cursor measure modes
  • 5.7” color LCD screen
  • Built-in rechargeable battery

Video

Youtube video

Technical Specifications

Bandwidth 150 MHz
Rise time ≤ 2.3 ns
Real-time sampling rate 1 Ch: 1 GSa/s
2 Ch: 500 MSa/s
Equivalent sampling range 50 GS/s
Vertical sensitivity 2 mV/div ~ 100 V/div
Memory depth 2 M
Scan time base 2.5 ns ~ 50 s/div
Trigger type Edge, Pulse, Video, Slope and Alternative
Frequency counter 6 digits frequency counter
Maths functions Add, Subtract, Multiply, Divide, FFT
Multimeter
DC voltage 60 mV / 600 mV - 1000 V: ±(1% + 5 digits)
AC voltage 60 mV / 600 mV - 750 V: ±(1% + 5 digits)
DC current 60.00 mA - 600 mA / 6 A - 10 A: ±(1.5% + 5 digits)
AC current 60.00 mA - 600 mA / 6 A - 10 A: ±(1.5% + 5 digits)
Resistance 600 Ω - 60 MΩ: ±(1% + 5 digits)
Capacitance 40 nF / 400 nF - 400 μF: ±(4% + 5 digits)
Diode 0 - 2 V
Continuity < 50 Ω buzzer sounds
General characteristics
Max. display 6000
LCD size 5.7" (320 × 234)
Ports USB interface, USB host
Power Lithium battery: 7.4 V, 5000 mAh
DC adapter: 100 - 240 V, 50/60 Hz, 9 V 4 A output
Dimensions 163.2 × 259.5 × 53.3 mm
Weight 1.5 kg

Additional Information

Download SIGLENT SHS810 Data Sheet.
