Handheld Digital Oscilloscope SIGLENT SHS820

id: 869147
7.5 kg 110, 220 V Warranty: 36 month (s)
200 MHz bandwidth model of the SHS800 series of devices, with 2 channels and three main functions such as oscilloscope, multimeter and waveform recorder.
USD 648.00
Contact
sales team
USD 648.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

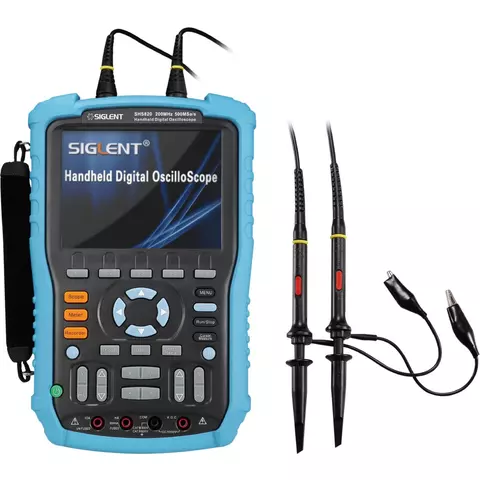

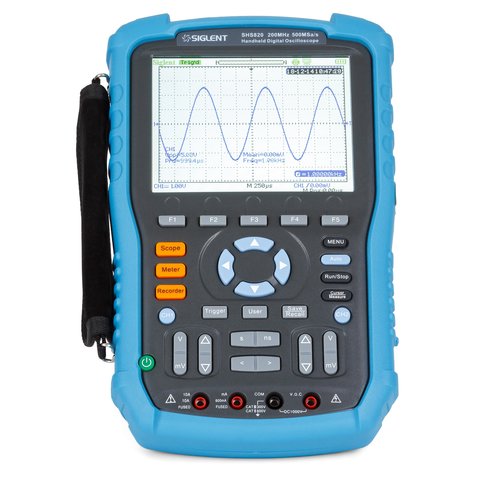

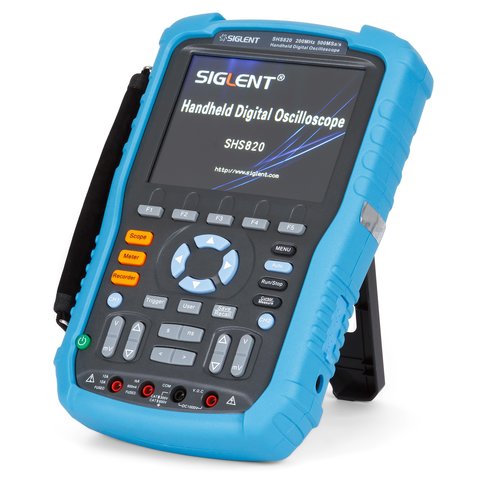

SIGLENT SHS820 is SHS800 series dual channel handheld oscilloscope with 200 MHz bandwidth, 500 MS/s sample rate and 32 k memory depth. SIGLENT SHS820 handheld digital oscilloscope also performs multimeter functions measuring AC/DC voltage and current, resistance, capacity and performing diode and continuity check.

Features

  • Dual channel bandwidth 200 MHz
  • Sampling rate 500 MS/s
  • Equivalent sampling rate 50 GS/s
  • 5 mathematic functions: adding, subtraction, multiplying, division, FFT
  • Multimeter functions:
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
    • Continuity check
    • Diode check
  • Memory depth 32 k
  • 32 types of automatic weveform measurements, 3 types of cursor measure modes
  • 5.7” color LCD screen
  • Built-in rechargeable battery

Technical Specifications

Bandwidth 200 MHz
Rise time ≤ 3.5 ns
Real-time sampling rate 1 Ch: 500 MS/s
2 Ch: 500 MSa/s
Equivalent sampling range 50 GS/s
Vertical sensitivity 2 mV/div ~ 100 V/div
Memory depth 32 k
Scan time base 2.5 ns ~ 50 s/div
Trigger type Edge, Pulse, Video, Slope and Alternative
Frequency counter 6 digits frequency counter
Maths functions Add, Subtract, Multiply, Divide, FFT
Multimeter
DC voltage 60 mV / 600 mV - 1000 V: ±(1% + 5 digits)
AC voltage 60 mV / 600 mV - 750 V: ±(1% + 5 digits)
DC current 60.00 mA - 600 mA / 6 A - 10 A: ±(1.5% + 5 digits)
AC current 60.00 mA - 600 mA / 6 A - 10 A: ±(1.5% + 5 digits)
Resistance 600 Ω - 60 MΩ: ±(1% + 5 digits)
Capacitance 40 nF / 400 nF - 400 μF: ±(4% + 5 digits)
Diode 0 - 2 V
Continuity < 50 Ω buzzer sounds
General characteristics
Max. display 6000
LCD size 5.7" (320 × 234)
Ports USB interface, USB host
Power Lithium battery: 7.4 V, 5000 mAh
DC adapter: 100 - 240 V, 50/60 Hz, 9 V 4 A output
Dimensions 163.2 × 259.5 × 53.3 mm
Weight 1.5 kg

Video

Youtube video

Data Sheet

PDF  Download SIGLENT SHS820 Data Sheet.

User Manual

PDF  Download SIGLENT SHS820 User Manual.

Package Contents

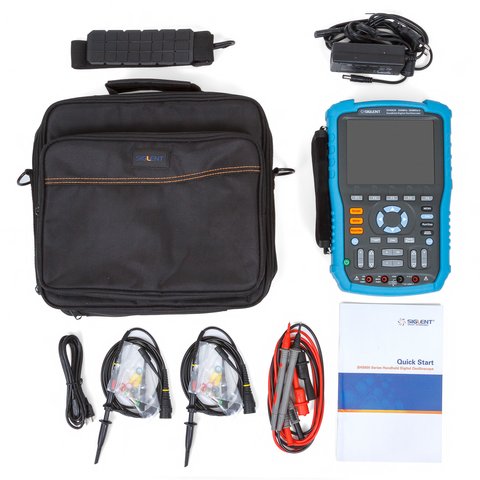

  • Digital oscilloscope SIGLENT SHS820 — 1 pc.
  • Passive probe — 2 pcs.
    • 1:1
    • 1:10
  • Power cord — 1 pc.
  • DC power adapter — 1 pc.
  • Multimeter test leads — 2 pcs.
  • Probe calibrator accessory — 1 pc.
  • USB cable — 1 pc.
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 32 kB
Bandwidth
  • 200 MHz
Type
  • portable
  • multimeter
Sample Rate
  • 1 GS/s
Video
Youtube video
