Hot Air Rework Station AOYUE 6031 Sirocco
sales team

You may also like

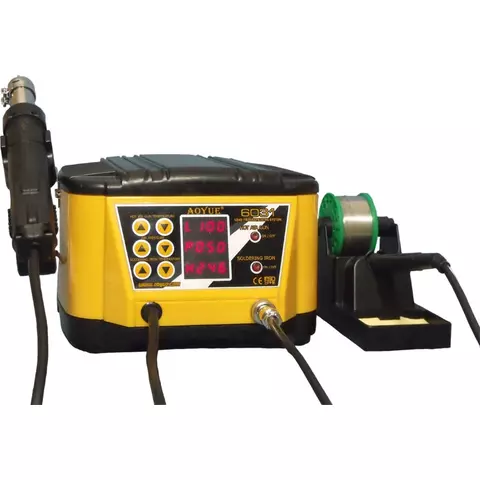

AOYUE 6031 Multifunctional Station is a microprocessor-controlled ESD safe equipment for lead-free soldering and reworking. Functions of a hot air gun and a soldering iron are combined in one device. The device has an easy-grip hand piece of unique design with an integrated low-noise fan. The built-in auto-cooling process, which protects the system and its components from excessive heat, prolongs the lifespan. Suitable for various SMD and BGA reworking tasks. Excellent for reworking components made of plastic materials.
Features:
AOYUE 6031 Multifunctional Station is a microprocessor-controlled ESD safe equipment for lead-free soldering and reworking. Functions of a hot air gun and a soldering iron are combined in one device. The device has an easy-grip hand piece of unique design with an integrated low-noise fan. The built-in auto-cooling process, which protects the system and its components from excessive heat, prolongs the lifespan. Suitable for various SMD and BGA reworking tasks. Excellent for reworking components made of plastic materials.
Features:
- Provides snug-fit clasp for easy control over hot air direction.
- Digital offset for easy digital temperature calibration from 0 to +70 degrees.
- Sirocco-type fan providing seamless airflow and circuit protection.
- Compound tip consists of the ceramic heating element and sensor in a single component.
- Replaceable tips easy to slip in/out; compatible with many types of tips for 24 V soldering iron.
- User programmable 1 to 30-minute idle to auto sleep mode of hot air gun (with 5 minutes as default) switches OFF fan and heating element when device is not in use for a long period.
- Built-in user programmable auto-sleep mode for soldering iron.
- Convection style heating with the hot air gun allows low hot air pressure to pass on target device/s and concentrate on the solder joints. Usable as a heat reflow device.
- Compatibile with various kinds of soldering tips.
- Compatibile with air nozzles of various types.
Specifications:
Thermofan |
|
---|---|
Power |
600 W |
Temperature range |
100 – 480 °C |
Soldering gun |
|
Power |
60 W |
Temperature range |
200 – 480 °C |
|
Compatible Soldering Tips
![]() |
||
Conical Soldering Tips | ||
---|---|---|
![]() AOYUE WQ-LI |
![]() AOYUE WQ-I |
![]() AOYUE WQ-LB |
![]() AOYUE WQ-B |
![]() AOYUE WQ-2B |
|
Bevel Type Soldering Tips | ||
![]() AOYUE WQ-1BC |
![]() AOYUE WQ-2BC |
![]() AOYUE WQ-3BC |
![]() AOYUE WQ-1C |
![]() AOYUE WQ-4C |
|
Chisel Type Soldering Tips | ||
![]() AOYUE WQ-08D |
![]() AOYUE WQ-12D |
![]() AOYUE WQ-16D |
![]() AOYUE WQ-24D |
![]() AOYUE WQ-4D |
![]() AOYUE WQ-52D |
![]() AOYUE WQ-08LD |
![]() AOYUE WQ-12LD |
|
Bent Type Soldering Tips | ||
![]() AOYUE WQ-02J |
||
Knife Type Soldering Tips | ||
![]() AOYUE WQ-K |
![]() AOYUE WQ-KL |
![]() AOYUE WQ-KU |
Microwave Type Soldering Tips | ||
![]() AOYUE WQ-2BCM |
![]() AOYUE WQ-3BCM |
|
Tunnel Type Soldering Tips | ||
![]() AOYUE WQ-1401 |
![]() AOYUE WQ-1402 |
![]() AOYUE WQ-1403 |
![]() AOYUE WQ-1404 |
Pump type |
|
Design type |
|
Vacuum pick-up tool |
|
Desoldering Pump |
|
Power Supply |
|
Soldering Iron Power |
|
Hot Air Gun Power |
|
Desoldering Gun |
|
