Multipurpose repair kit designed specially for recovery of huge circuit boards such as motherboards. Power: 2500 W.
Availability in stock:
HK
ID: 820237 41.33 kg 220

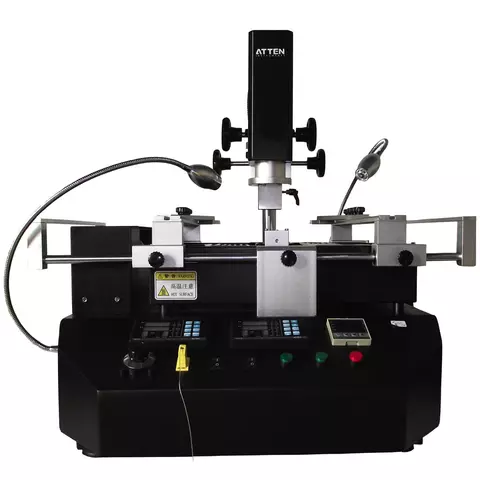

ATTEN AT8235 Hot Air Rework Station with Infrared Preheater for lead and lead-free soldering is all-purpose repair kit, designed specially for recovery of huge circuit plates such as motherboards. ATTEN AT8235 Hot Air Rework Station with Infrared Preheater is used for recovering CBGA, CCGA, CSP, QFN, MLF, PGA components and other BGA-chips, as well as replacement of specific components (protective metal shield and plastic connectors). ATTEN AT8235 easily manages to (un)install chipsets on laptop motherboards, even difficult to repair ACER ones.
Circuit plates dimensions, mm | 85 × 85 mm (min) 550 × 375 mm (max) |
Size of weldable chips, mm | 5 × 5 mm (min) 45 × 45 mm (max) |
Power of the hot air on the top heater | 750 W |
Power of the hot air on the bottom heater | 750 W |
Preheating rated power | 2000 W |
Temperature range | 0°C to 400°C |
Power Input | 220 V 50/60 Hz |
Dimensions, mm | 600 × 620 × 600 |
Weight, kg | 45 |
Bottom heater size |
|
Total power |
|
Control type |
|
Upper heater type |
|
Bottom heater type |
|
Upper heater power |
|
