Hot Air Soldering Station AOYUE 2738A+

id: 813096
Hot Air Soldering Station AOYUE 2738A+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 199.00
Notify
when in stock
Overview
6.4 kg 220 V Warranty: 12 months
3 in 1 multifunctional repairing system. Combines functions of a hot air gun, a soldering iron and a smoke absorber.
USD 199.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 199.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Hot Air Rework Station Accta 401
Bestseller
Add to wishlist
Hot Air Rework Station Accta 401
USD 169.00
Add to wishlist
Add to cart
Soldering station for operation with soldering tips of Hakko T12 standard. Soldering iron power: 70 W, heat gun power: 350 W. The package includes one original Hakko tip.
Bestseller
Made in Ukraine
Availability in stock: HK
Shipping cost
ID: 4040 3 kg 220
Hot Air Rework Station Accta 501
Bestseller
Add to wishlist
Hot Air Rework Station Accta 501
USD 219.00
Add to wishlist
Add to cart
Temperature display, hot air gun auto switch-off, 72 W soldering iron, 350 W hot air gun, soldering iron and hot air gun temperature range: 80-480°C.
Bestseller
Made in Ukraine
Availability in stock: HK
Shipping cost
ID: 5050 4 kg
Description

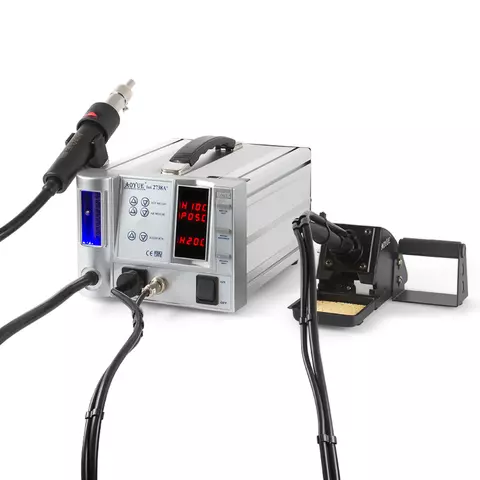

AOYUE 2738A+ is a 3-in-1 multifunctional repairing system for lead free and smoke free operation. Combines functions of a hot air gun, a soldering iron and a smoke absorber. Microprocessor controlled ESD safe unit with digital display with touch panel controls of hot air temperature, soldering iron temperature and air pressure. Unique feature: 15-minute standby auto sleep mode. Returns to previous setting when the handle is held up again. Programmable reworking time from 20 to 9999 seconds. Auto cooling feature. When the unit is turned off, it starts to blow cold air until the device reaches a safe temperature of 85°C. This ensures safety and prolongs operation life of the heating element. Efficient compound tip design allows to connect the ceramic heater, sensor, control unit and tip as a single unit. Tip replacement with an easy slip in/out method. Built-in smoke extractor that absorbs the fumes produced by the device. Eliminates the view hindering smoke thus creating healthier working environment. Compatible with various types of air nozzles and soldering tips.

Technical Specifications

Main Station
Power input 220 V
Dimensions 188(W) × 126(H) × 250(D) mm
Soldering Iron
Power consumption 70 W
Temperature range 250-480°C
Heating element ceramic heater
Output voltage 24 V
Hot Air Gun
Power consumption 500 W
Temperature range 100-480°C
Heating element metal heating core
Pump/motor type diaphragm pump
Air capacity 23 l/min (max)
Smoke Absorber
Vacuum pressure 600 mm Hg
Read more
Description

AOYUE 2738A+ is a 3-in-1 multifunctional repairing system for lead free and smoke free operation. Combines functions of a hot air gun, a soldering iron and a smoke absorber. Microprocessor controlled ESD safe unit with digital display with touch panel controls of hot air temperature, soldering iron temperature and air pressure. Unique feature: 15-minute standby auto sleep mode. Returns to previous setting when the handle is held up again. Programmable reworking time from 20 to 9999 seconds. Auto cooling feature. When the unit is turned off, it starts to blow cold air until the device reaches a safe temperature of 85°C. This ensures safety and prolongs operation life of the heating element. Efficient compound tip design allows to connect the ceramic heater, sensor, control unit and tip as a single unit. Tip replacement with an easy slip in/out method. Built-in smoke extractor that absorbs the fumes produced by the device. Eliminates the view hindering smoke thus creating healthier working environment. Compatible with various types of air nozzles and soldering tips.

Technical Specifications

Main Station
Power input 220 V
Dimensions 188(W) × 126(H) × 250(D) mm
Soldering Iron
Power consumption 70 W
Temperature range 250-480°C
Heating element ceramic heater
Output voltage 24 V
Hot Air Gun
Power consumption 500 W
Temperature range 100-480°C
Heating element metal heating core
Pump/motor type diaphragm pump
Air capacity 23 l/min (max)
Smoke Absorber
Vacuum pressure 600 mm Hg

Package Contents

  • Main station with a hot air gun — 1 pc.
  • Replaceable air nozzles (1124, 1130,1197, 1313, 1919) — 5 pcs.
  • Z003 hot air gun holder — 1 pc.
  • Soldering iron with built in smoke absorber — 1 pc.
  • Soldering iron holder with solder wire stand — 1 pc.
  • Tip with heater cartridge — 1 pc.
  • 10094 spare heating element — 1 pc.
  • Vacuum suction pen — 1 pc.
  • Filter pads — 2 pcs.
  • G001 IC popper — 1 pc.
  • Power cord — 1 pc.

Compatible Soldering Tips

Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Available
Power Supply
  • Non-available
Soldering Iron Power
  • 70 W
Hot Air Gun Power
  • 500 W
Desoldering Gun
  • Non-available
