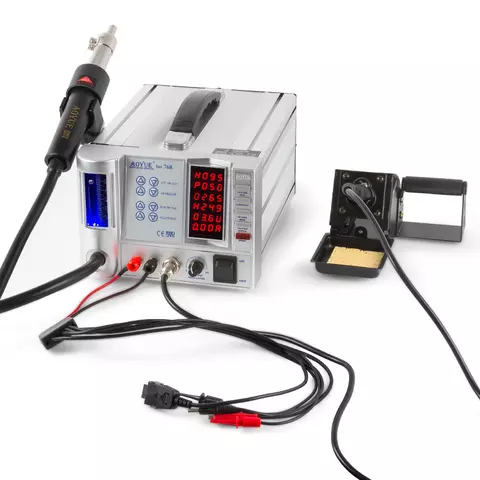

Hot Air Soldering Station AOYUE 768 + Soldering Iron + Power Supply (110V)

id: 814122
Hot Air Soldering Station AOYUE 768 + Soldering Iron + Power Supply (110V)
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 199.00
Notify
when in stock
Overview
6.55 kg 110 V Warranty: 12 months
Microprocessor controlled ESD safe unit. All digital display of hot air temperature, soldering iron temperature and air pressure with touch type panel controls.
USD 199.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 199.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

Hot Air Rework Station Accta 301A 110 V
Add to wishlist
Hot Air Rework Station Accta 301A (110 V)
USD 129.00
Add to wishlist
Add to cart
Accta 301 offers compact design, temperature display, hot air gun auto switch-off, 50 W soldering iron, 350 W hot air gun, soldering iron and hot air gun temperature range: 80-480°C.
Availability in stock: HK
Shipping cost
ID: 4061 2.75 kg 110
Description

AOYUE 768 combines the function of a Hot Air Gun, a Soldering Iron and Electric Source. AOYUE 768 is a sufficient system to perform various reworking tasks.

Features

  • Digital display of hot air gun and soldering iron temperature
  • Touch type panel controls
  • Stable power supply of 1.5A / 0-15V
  • Programmable auto reworking time from 20 to 9999 seconds
  • Automatic cooling function
  • Compatible with various type of air nozzles
  • Compatible with different soldering iron tips

Technical Specifications

General Specifications
Power Input 110 V /  50 Hz
Main Station Dimensions 188 x 126 x 250 mm
Soldering Iron Specifications
Power Consumption 45 W
Temperature Range 200 °C - 480 °C
Heating Element ceramic heater
Hot Air Gun Specifications
Power Consumption 550 W
Temperature Range 100 °C - 480 °C
Heating Element metal heating core
Pump Type diaphragm pump
Air capacity 23 L/min (max)
Power Supply Specifications
Total Current 1.5 A
DC Output Voltage 0-15 V

User Manual

PDF  Download AOYUE 768 User Manual.

Application

  • Complete range of rework applications in medium and large scale service centers
  • Mobile and radio systems devices repair
  • Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair
  • LAN, network nodes, and military communications systems equipment repair
  • AOYUE 768 main module (1 pc.)
  • Hot air gun (1 pc.)
  • Air nozzles (1124, 1130, 1197, 1313, 1818)
  • Hot air gun holder (1 pc.)
  • Soldering iron (1 pc.)
  • Soldering iron holder (1 pc.)
  • Spare soldering iron heating element (1 pc.)
  • Vacuum suction pen (1 pc.)
  • IC extractor (1 pc.)
  • Power cord (1 pc.)

Compatible Replacement Air Nozzles

Compatible Soldering Tips

Read more
Description

AOYUE 768 combines the function of a Hot Air Gun, a Soldering Iron and Electric Source. AOYUE 768 is a sufficient system to perform various reworking tasks.

Features

  • Digital display of hot air gun and soldering iron temperature
  • Touch type panel controls
  • Stable power supply of 1.5A / 0-15V
  • Programmable auto reworking time from 20 to 9999 seconds
  • Automatic cooling function
  • Compatible with various type of air nozzles
  • Compatible with different soldering iron tips

Technical Specifications

General Specifications
Power Input 110 V /  50 Hz
Main Station Dimensions 188 x 126 x 250 mm
Soldering Iron Specifications
Power Consumption 45 W
Temperature Range 200 °C - 480 °C
Heating Element ceramic heater
Hot Air Gun Specifications
Power Consumption 550 W
Temperature Range 100 °C - 480 °C
Heating Element metal heating core
Pump Type diaphragm pump
Air capacity 23 L/min (max)
Power Supply Specifications
Total Current 1.5 A
DC Output Voltage 0-15 V

User Manual

PDF  Download AOYUE 768 User Manual.

Application

  • Complete range of rework applications in medium and large scale service centers
  • Mobile and radio systems devices repair
  • Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair
  • LAN, network nodes, and military communications systems equipment repair
  • AOYUE 768 main module (1 pc.)
  • Hot air gun (1 pc.)
  • Air nozzles (1124, 1130, 1197, 1313, 1818)
  • Hot air gun holder (1 pc.)
  • Soldering iron (1 pc.)
  • Soldering iron holder (1 pc.)
  • Spare soldering iron heating element (1 pc.)
  • Vacuum suction pen (1 pc.)
  • IC extractor (1 pc.)
  • Power cord (1 pc.)

Compatible Replacement Air Nozzles

Compatible Soldering Tips

Specifications
Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Available
Soldering Iron Power
  • 45 W
Hot Air Gun Power
  • 550 W
Desoldering Gun
  • Non-available
