Air Nozzles Set AOYUE PLCC

Name: Air Nozzles Set AOYUE PLCC
Brand: AOYUE
SKU: 8412
Price: 87.00 USD
Availability: OutOfStock

id: 8412

Overview

Description

Specifications

Delivery

Payment

Warranty

USD 87.00

Overview

Brand:

A set consists of 9 air nozzles of different size for soldering PLCC ICs. Compatible with AOYUE 2702, 2702A+, 2738, 2738A+, 6028 Sirocco, 6031 Sirocco, 738, 768, 8032A++, 852A+, 852A++, 857A++, 899A+, 906, 906C, 908+, 909, 968, Pro'sKit SS-601F, SUNKKO 850A, 850D. Read more

USD 87.00

Buy wholesale and save

USD 87.00

Impossible to estimate the shipping cost

Description

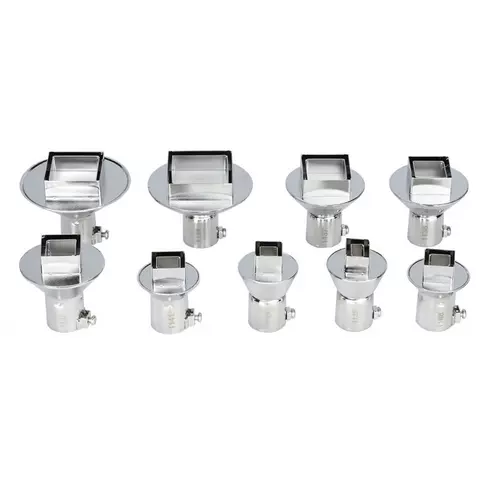

AOYUE PLCC Air Nozzles Set is a set of 9 air nozzles of different size for soldering PLCC ICs. Compatible with a wide range of AOYUE, Pro'sKit, SUNKKO soldering stations.

AOYUE PLCC Air Nozzles Set Technical Specifications

PLCC air nozzles

Air nozzle model	IC type and dimensions (mm)	Air nozzle dimensions (mm)
Air nozzle model	IC type and dimensions (mm)	A	B	C	D
1135	PLCC 17.5x17.5 (44 pins)	18.5	18.5	15	15
1136	PLCC 20x20 (52 pins)	21	21	19	19
1137	PLCC 25x25 (68 pins)	26	26	24	24
1138	PLCC 30x30 (84 pins)	31	31	29	29
1139	PLCC 7.3x12.5 (18 pins)	9	14	69	69
1140	PLCC 11.5x11.5 (28 pins)	13	13	15	10
1141	PLCC 11.5x14 (32 pins)	15	13	15	10
1188	PLCC 9 x9 (20 pins)	11	11	10	10
1189	PLCC 34x34 (100 pins)	36.5	36.5	33.5	33.5

AOYUE PLCC Air Nozzles Set Compatibility

Specifications

Replacement Air Nozzle is compatible with the following models of Hot Air Soldering Stations	AOYUE 8032A++ AOYUE 738 AOYUE 906 AOYUE 2702 AOYUE 908+ AOYUE 768 AOYUE 2738A+ AOYUE 2702A+ AOYUE 2702A+ AOYUE 909 AOYUE 768 AOYUE 852A+ AOYUE 2738 AOYUE 899A+ AOYUE 852A++ AOYUE 968 AOYUE 968 AOYUE 906C AOYUE 6028 Sirocco AOYUE 857A++ AOYUE 6031 Sirocco AOYUE 909 SUNKKO 850D SUNKKO 850A Pro'sKit SS-601F
Type	PLCC
