Overview
Brand: Jovy Systems
36.4 kg 220 V Warranty: 12 months

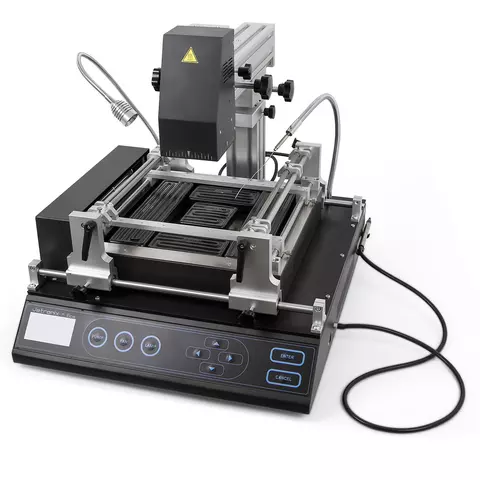

Semi-automatic infrared BGA rework system with a ceramic emisor and PC synchronization.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Infrared Soldering Station ACHI IR PRO SC
Bestseller
Add to wishlist
Infrared Soldering Station ACHI IR-PRO-SC
USD 791.03
Add to wishlist
Add to cart
Multipurpose repair kit designed specially for recovery of huge circuit boards such as motherboards. Power: 2500 W.
Bestseller
Availability in stock: HK
Shipping cost
ID: 820237 41.33 kg 220
Infrared BGA Rework Station ACHI IR 6500
Add to wishlist
Infrared BGA Rework Station ACHI IR-6500
USD 790.00
USD 590.00
Add to wishlist
Add to cart
Multi-function semi-automatic infrared BGA rework system with PC synchronization and ceramic emitter for repairing PCBs of Xbox, PS3, laptops, PC motherboards, etc.
Availability in stock: HK
Shipping cost
ID: 841539 21 kg 220
Description

Jovy Systems Jetronix-Eco is a powerful semi-automatic infrared BGA rework system with PC synchronization.

Features

  • High power: max. 3200 W.
  • Three heating zones: reflow zone, inner preheating zone and outer preheating zone.
  • Upper heater can move up/down, in/out and rotate 180°.
  • Large preheating area: up to 245 × 245 mm.
  • Three stages for full process control.
  • Powerful pick-up tool.
  • Wide screen LCD.
  • Safety alarm function to protect PCB or application damage.
  • User friendly software interface via USB 2.0.

Software

Read more
Description

Jovy Systems Jetronix-Eco is a powerful semi-automatic infrared BGA rework system with PC synchronization.

Features

  • High power: max. 3200 W.
  • Three heating zones: reflow zone, inner preheating zone and outer preheating zone.
  • Upper heater can move up/down, in/out and rotate 180°.
  • Large preheating area: up to 245 × 245 mm.
  • Three stages for full process control.
  • Powerful pick-up tool.
  • Wide screen LCD.
  • Safety alarm function to protect PCB or application damage.
  • User friendly software interface via USB 2.0.

Software

Download Jovy Systems Jetronix-Eco Software

Manuals

Download Jovy Systems Jetronix-Eco Operation Manual

Technical Specifications

Power supply 220 V AC, 50/60 Hz
Total heating power 3200 W
Upper heater size 80 mm × 80 mm
Upper heater power 400 W
Bottom heater size 245 mm × 245 mm
Bottom heater power 2800 W
Max board size up to 300 mm × 400 mm
Thermocouple type K-type, built-in flexible
Display type 128×64 graphical LCD
Suction pump 60-90 dpi (lifting power up to 150 g)
Light source 1 Watt LED
Memory up to 50 profiles
Interface USB 2.0
Software Jetronix-Eco Software
Dimensions, L × W × H 450 × 520 × 455 mm
Weight 28 Kg

Package Contents

  • Jovy Systems Jetronix-Eco Infrared BGA Rework Station Unit – 1 pc.
  • Heaters – 3 pcs.
  • USB Cable – 1 pc.
  • Operation Manual – 1 pc.
  • CD with Software and Operational files – 1 pc.

Auxiliary equipment

Jovy Systems JV-PMC Soldering Process Monitoring Camera Soldering-Process-Monitoring-Camera-Jovy-Systems-JV-PMC
ACHI LP-56 BGA Reballing Kit BGA-Reballing-Kit-ACHI-LP-56
Specifications
Upper Heater Size
  • 8x8 cm
Heater Type
  • with ceramic emitter
Bottom heater size
  • 24.5 × 24.5 cm
Control type
  • microcontroller / PC synchronization
Upper heater type
  • ceramic
Bottom heater type
  • ceramic
Upper heater power
  • 400 W
Total power
  • 3400 W
