Infrared BGA Rework Station Scotle IR-PRO-SC + Reballing Accessories Kit

id: 847556
Infrared BGA Rework Station Scotle IR-PRO-SC + Reballing Accessories Kit
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 950.00

Overview

41 kg 220 V Warranty: 6 months
Rework station, designed specially for recovery of huge circuit plates such as motherboards + reballing accessories kit including a reballing station, 10 BGA stencils and solder balls. Read more
USD 950.00
USD 950.00
Impossible to estimate the shipping cost

You may also like

Description

Scotle IR-PRO-SC is a all-purpose rework station, designed specially for recovery of large PCB's such as motherboards. Scotle IR-PRO-SC easily manages to (de)solder chipsets on laptop motherboards, even difficult to repair ACER ones. "Red Ring of Death" - XBOX 360 problem - can be also solved with the help of Scotle IR-PRO-SC.

This infrared soldering station is used for recovering CBGA, CCGA, CSP, QFN, MLF, PGA components and other BGA-chips, as well as replacement of specific components (protective metal shield and plastic connectors).

Features

  • Good quality heater plates.
  • Build-in vacuum suction pen.
  • Upper heater level is adjustable with rotating handle. Big upper infrared heater is used for BGA-chips.
  • Big lower infrared preheater heats circuit plate equally to prevent it's thermal distortion.
  • The linear guide-type bracket can be adjusted by rotating handle and fixes the circuit plate, preventing its destortion.
  • Cooling fan can quickly cool the plate.
  • Independent temperature sensors for upper and lower heaters and automatic temperature stabilization system with feedback and PID-control.
  • IR-PRO-SC can be connected to PC through RS232 serial port. The soldering station can be programmed and controlled via software included in package. 10 temperature curves can be stored at the same time.
  • CE certified

Technical Specifications

Circuit boards dimensions 65 × 65 mm
Lower preheater dimensions 260 × 245 mm
Power consumption 2500 W
Voltage 220 V, 50/60 Hz
Dimensions 475 × 480 × 420 mm
Weight 28 kg

Package Contents

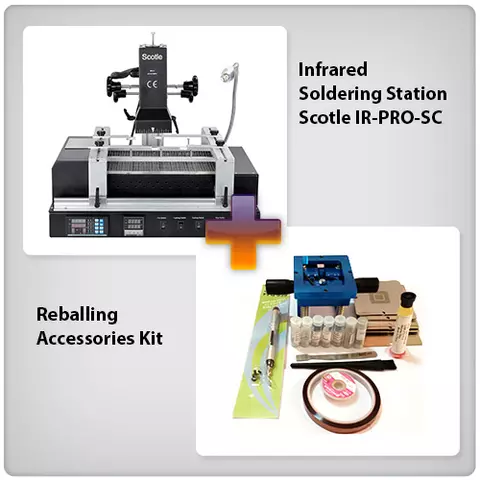

Scotle IR-PRO-SC BGA Rework Station

  • Scotle IR-PRO-SC infrared rework station — 1 pc.
  • Data cable — 1 pc.
  • K-type probe — 1 pc.
  • Vacuum suction pen — 1 pc.
  • User manual — 1 pc.
  • CD with demonstration video — 1 pc.

Reballing Accessories Kit

  • Reballing station — 1 pc.
  • Amtech soldering flux — 1 pc.
  • Solder balls (2500 pcs/pack)
    • 0.3 mm — 1 pc.
    • 0.35 mm — 1 pc.
    • 0.4 mm — 1 pc.
    • 0.45 mm — 1 pc.
    • 0.5 mm — 1 pc.
    • 0.55 mm — 1 pc.
    • 0.6 mm — 1 pc.
    • 0.76 mm — 1 pc.
  • Vacuum pick-up tool — 1 pc.
  • Kapton tape — 1 pc.
  • Goot CP-2015 desoldering wick — 1 pc.
  • Brush — 1 pc.
  • Scraper — 1 pc.
  • BGA stencils — 10 pcs.
    • Universal 0.3 mm
    • Universal 0.35 mm
    • Universal 0.4 mm
    • Universal 0.45 mm
    • Universal 0.5 mm
    • Universal 0.55 mm
    • Universal 0.6 (pitch = 1.0 mm)
    • Universal 0.6 (pitch = 0.9 mm)
    • Universal 0.6 (pitch = 1.1 mm)
    • Universal 0.76 (pitch = 1.27 mm)

Specifications

Bottom heater size
  • 26x24 cm
Total power
  • 2500 W
Control type
  • microcontroller / PC synchronization
Upper heater type
  • ceramic
Bottom heater type
  • ceramic
Upper heater power
  • 400 W
