Overview
37 kg 220 V Warranty: 6 months

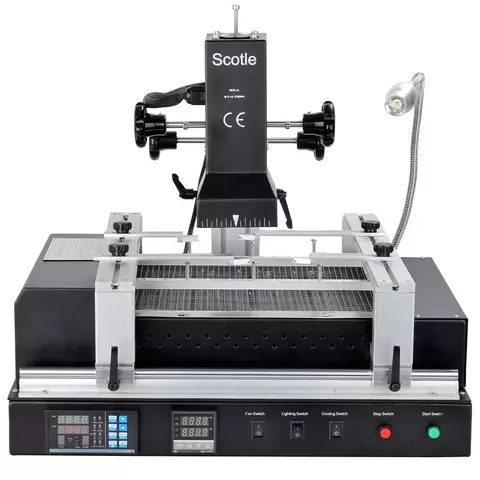

Powerful all-purpose rework station, designed specially for recovery of large PCB's such as motherboards.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Infrared Soldering Station ACHI IR PRO SC
Bestseller
Add to wishlist
Infrared Soldering Station ACHI IR-PRO-SC
USD 791.03
USD 711.93
Add to wishlist
Add to cart
Multipurpose repair kit designed specially for recovery of huge circuit boards such as motherboards. Power: 2500 W.
Bestseller
Availability in stock: HK
Shipping cost
ID: 820237 41.33 kg 220
Description

Scotle IR-PRO-SC is a all-purpose rework station, designed specially for recovery of large PCB's such as motherboards. Scotle IR-PRO-SC easily manages to (de)solder chipsets on laptop motherboards, even difficult to repair ACER ones. "Red Ring of Death" - XBOX 360 problem - can be also solved with the help of Scotle IR-PRO-SC.

This infrared soldering station is used for recovering CBGA, CCGA, CSP, QFN, MLF, PGA components and other BGA-chips, as well as replacement of specific components (protective metal shield and plastic connectors).

Features

  • Good quality heater plates.
  • Build-in vacuum suction pen.
  • Upper heater level is adjustable with rotating handle. Big upper infrared heater is used for BGA-chips.
  • Big lower infrared preheater heats circuit plate equally to prevent it's thermal distortion.
  • The linear guide-type bracket can be adjusted by rotating handle and fixes the circuit plate, preventing its destortion.
  • Cooling fan can quickly cool the plate.
  • Independent temperature sensors for upper and lower heaters and automatic temperature stabilization system with feedback and PID-control.
  • IR-PRO-SC can be connected to PC through RS232 serial port. The soldering station can be programmed and controlled via software included in package. 10 temperature curves can be stored at the same time.
  • CE certified

Technical Specifications

Circuit boards dimensions 65 × 65 mm
Lower preheater dimensions 260 × 245 mm
Power consumption 2500 W
Voltage 220 V, 50/60 Hz
Dimensions 475 × 480 × 420 mm
Weight 28 kg

Package Contents

  • Scotle IR-PRO-SC infrared rework station
  • Data cable
  • K-type probe
  • Vacuum suction pen
  • User manual
  • CD with demonstration video
Read more
Description

Scotle IR-PRO-SC is a all-purpose rework station, designed specially for recovery of large PCB's such as motherboards. Scotle IR-PRO-SC easily manages to (de)solder chipsets on laptop motherboards, even difficult to repair ACER ones. "Red Ring of Death" - XBOX 360 problem - can be also solved with the help of Scotle IR-PRO-SC.

This infrared soldering station is used for recovering CBGA, CCGA, CSP, QFN, MLF, PGA components and other BGA-chips, as well as replacement of specific components (protective metal shield and plastic connectors).

Features

  • Good quality heater plates.
  • Build-in vacuum suction pen.
  • Upper heater level is adjustable with rotating handle. Big upper infrared heater is used for BGA-chips.
  • Big lower infrared preheater heats circuit plate equally to prevent it's thermal distortion.
  • The linear guide-type bracket can be adjusted by rotating handle and fixes the circuit plate, preventing its destortion.
  • Cooling fan can quickly cool the plate.
  • Independent temperature sensors for upper and lower heaters and automatic temperature stabilization system with feedback and PID-control.
  • IR-PRO-SC can be connected to PC through RS232 serial port. The soldering station can be programmed and controlled via software included in package. 10 temperature curves can be stored at the same time.
  • CE certified

Technical Specifications

Circuit boards dimensions 65 × 65 mm
Lower preheater dimensions 260 × 245 mm
Power consumption 2500 W
Voltage 220 V, 50/60 Hz
Dimensions 475 × 480 × 420 mm
Weight 28 kg

Package Contents

  • Scotle IR-PRO-SC infrared rework station
  • Data cable
  • K-type probe
  • Vacuum suction pen
  • User manual
  • CD with demonstration video
Specifications
Upper Heater Size
  • 8x8 cm
Bottom heater size
  • 26x24 cm
Heater Type
  • with ceramic emitter
Total power
  • 2500 W
Control type
  • microcontroller / PC synchronization
Upper heater type
  • ceramic
Bottom heater type
  • ceramic
Upper heater power
  • 400 W
