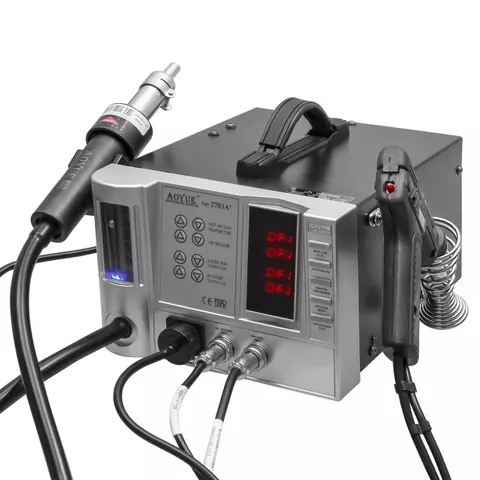

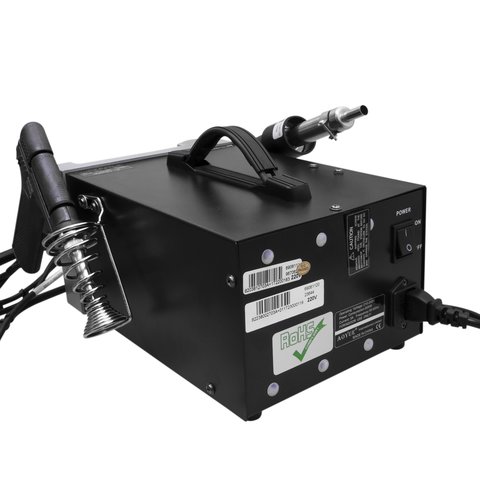

Lead-Free Hot Air Rework Station AOYUE 2703A+

id: 840051
Lead-Free Hot Air Rework Station AOYUE 2703A+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 320.00
Notify
when in stock
Overview
8 kg 220 V Warranty: 12 months
Powerful 3 in 1 lead-free rework station, equipped with a soldering iron, built-in smoke absorber and a desoldering gun.
USD 320.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 320.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

AOYUE 2703A+ is a powerful 3 in 1 lead-free hot air rework station, which is equipped with a soldering iron, a built-in smoke absorber and a desoldering gun, perfectly suitable for workshops and laboratories. AOYUE 2703A+ desoldering station comes with a Dual Port System that allows the user to use simultaneously the lead-free soldering iron as well as the desoldering gun.

Features

  • Microprocessor-controlled ESD safe unit
  • Suited for multi-layered PCB reworking
  • Touch type panel controls
  • Integrated smoke absorber functionality with filter pad
  • Soldering iron ceramic heating element integrated with the temperature sensor
  • Built-in autocooling
  • Large selection of air nozzles
  • Compatibility with different soldering iron tips

Technical Specifications

Main station module
Power input 220 V
Station dimensions 188 × 126 × 250 mm
Weight 5.6 kg
Soldering iron
Temperature range 200 °C to 480 °C
Power consumption 70 W
Output voltage 24 V
Heating element ceramic heater
Hot air gun
Temperature range 100 °C – 480 °C
Power consumption 500 W
Air capacity 23 l /min (max)
Heating element metal heating core
Pump type diaphragm pump
Desoldering gun
Temperature range 200 °C – 480 °C
Power consumption 50 W
Output voltage 24 V
Heating element ceramic heater

Package Contents

  • Rework station unit — 1 pc.
  • Hot air gun — 1 pc.
  • Desoldering gun — 1 pc.
  • Desoldering tips — 2 pcs.

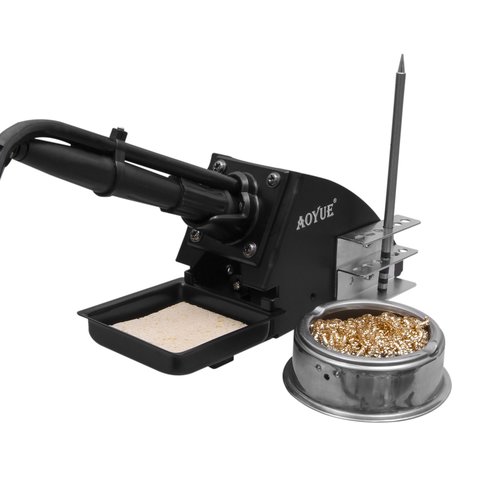

  • Desoldering gun holder — 1 pc.
  • Soldering iron with smoke absorber — 1 pc.
  • Soldering iron holder — 1 pc.
  • Soldering iron tip — 1 pc.
  • Vacuum suction pen — 1 pc.
  • G001 IC tweezers — 1 pc.
  • Air nozzles — 3 pcs.
  • Filter pads — 6 pcs.
  • Nozzle cleaning pin — 1 pc.
  • Power cord — 1 pc.

Compatible Soldering Tips
