Overview
6.5 kg 110, 220 V Warranty: 36 months
2-channel mixed signal oscilloscope with 16-channel logic analyzer. Bandwidth: 50 MHz. Maximum real-time sample rate: 1 GSa/s. Memory depth: 1 Mpts
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

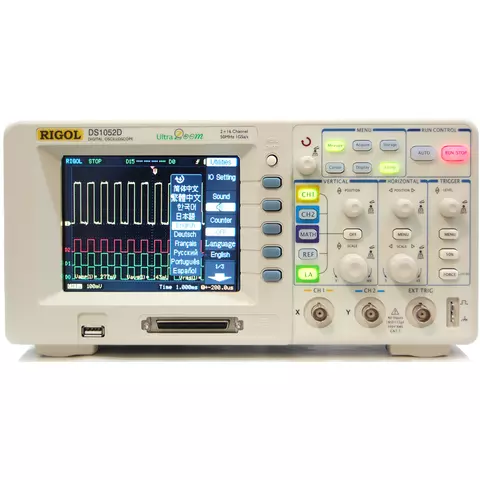

RIGOL DS1052D is a dual-channel true mixed signal oscilloscope with 16 channel logic analyzer. It has a 50 MHz bandwidth, 1 GSa/s maximum real-time sample rate and 1 Mpts memory depth.

Features

  • Compact design to save your desktop space
  • 1 GSa/s maximum real-time sample rate, 10 GSa/s maximum equivalent-time sample rate
  • 1 Mpts long Memory Depth
  • Ultra compact design: 303mm x 154mm x 133mm (WxHxD)
  • 64 k TFT color LCD, bright and vivid waveform display
  • Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure modes
  • Extensive set of trigger modes including: Edge, Video, Pulse Width, Slope, Alternate 5. 64 k TFT Color LCD, bright and vivid waveform display
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions:+, -, x, FFT, Invert
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • Standard interface: USB Device, USB Host, RS-232
  • Standard configuration: Pass/Fail test, effectively avoids electromagnetic interference by using photoelectricity isolation
  • Multi-language user interface, built-in help system
  • Direct print to PictBridge compatible printers via USB Device interface

Technical Specifications

Read more
Description

RIGOL DS1052D is a dual-channel true mixed signal oscilloscope with 16 channel logic analyzer. It has a 50 MHz bandwidth, 1 GSa/s maximum real-time sample rate and 1 Mpts memory depth.

Features

  • Compact design to save your desktop space
  • 1 GSa/s maximum real-time sample rate, 10 GSa/s maximum equivalent-time sample rate
  • 1 Mpts long Memory Depth
  • Ultra compact design: 303mm x 154mm x 133mm (WxHxD)
  • 64 k TFT color LCD, bright and vivid waveform display
  • Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure modes
  • Extensive set of trigger modes including: Edge, Video, Pulse Width, Slope, Alternate 5. 64 k TFT Color LCD, bright and vivid waveform display
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions:+, -, x, FFT, Invert
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • Standard interface: USB Device, USB Host, RS-232
  • Standard configuration: Pass/Fail test, effectively avoids electromagnetic interference by using photoelectricity isolation
  • Multi-language user interface, built-in help system
  • Direct print to PictBridge compatible printers via USB Device interface

Technical Specifications

Model DS1102D DS1052D
Bandwidth 100 MHz 50 MHz
Channels Dual Channels + External Trigger
Real-time Sample Rate 1GS/s
Equivalent Sample Rate 25 GSa/s 10 GSa/s
Memory Depth Channel Mode Sample Rate Normal Memory Long Memory
Single Channel 1 GS/s 16 kpts N/A
Single Channel 500MS/s Or lower 16 kpts 1 Mpts
Dual Channel 500MS/s Or lower 8 kpts 512 kpts
Rise Time 3.5ns 7ns
Time Base Range 2 ns/div to 50 s/div 5 ns/div to 50 s/div
Trigger Modes Edge, Video, Pulse Width, Slope, Alternative
Input Impedance 1 M? || 15 pF
Vertical Sensitivity 2 mV/div to 10 V/div
Vertical Resolution 8 bits
Input Coupling DC, AC, Ground
Maximum Input Voltage 400 V (DC + AC peak)
Roll Range 500 ms/div to 50 s/div
Cursor Measurements Manual, Track and Auto Measure modes
Math Add, Subtract, Multiply, FFT
Storage USB Device, USB Host, RS-232, P/F Out (Isolated)
Display 5.6"TFT (64K, Color LCD), 320 x 234
Power Worldwide Use, 100 – 240 V / 50 VA Max
Weight 2.4 kg

Data Sheet

PDF  Download RIGOL DS1052D Data Sheet.

User Manual

PDF  Download Rigol DS1052D Mixed Signal Oscilloscope User Manual.

Video

Youtube video

Youtube video

Youtube video

Youtube video

Package Contents

  • RIGOL DS1052D Mixed Signal Oscilloscope — 1 pc.
  • Power Cord — 1 pc.
  • Probes — 2 pcs.
  • Logic Analyzer Module — 1 pc.
  • USB Cable — 1 pc.
  • User Manual — 1 pc.
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
  • with 16 channel logic analyzer
Storage Capacity
  • 1 MB
Bandwidth
  • 50 MHz
Type
  • desktop
  • mixed-signal
Sample Rate
  • 1 GS/s
