Overview
8 kg 110, 220 V Warranty: 36 months

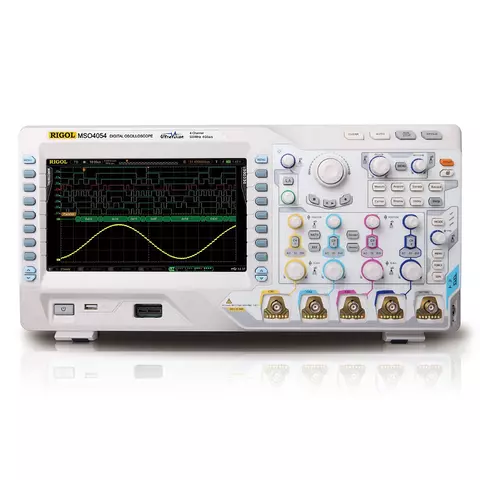

Four-channel mixed signal oscilloscope with 500 MHz bandwidth, 4 GSa/s real-time sample rate, 16-channel Logic Analyzer, 9" display and up to 110,000 waveforms/sec capture rate.
USD 9935.00
Contact
sales team
Add to wishlist
Compare
Compare
USD 9935.00
Contact
sales team
Impossible to estimate the shipping cost
Description

RIGOL MSO4054 is the new four-channel mixed signal oscilloscope (500 MHz) with 16-channel Logic Analyzer. RIGOL MSO4054 provides up to 110,000 wfms/s waveform acquisition rate.

RIGOL MSO4054 digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 500 MHz
  • 4 channels + 16 channels for Logic Analyzer
  • Real-time sample rate: analog channel up to 4 GSa/s, digital channel up to 1 GSa/s
  • Memory depth: analog channel up to 140 Mpts, digital channel up to 28 Mpts
  • Innovative UltraVision technology
  • Waveform acquisition rate up to 110,000 wfms/s
  • Low noise floor, min. vertical sensitivity is 1 mV/div
  • A variety of Trigger functions
  • Real time waveform record, replay and analysis
  • 9-inch color LCD
  • Standard interface: LAN, USB host and device, AUX, VGA, USB-GPIB (opt.)

RIGOL MSO4054 Mixed Signal Oscilloscope Technical Specifications

Bandwidth 500 MHz
Channels 4 + 16
Real time sample rate Analog: max. 4 GSa/s single channel, 2 GSa/s dual channel
Digital: max. 1 GSa/s per channel
Memory depth Analog: up to 140 Mpts single channel, 70 Mpts dual channel
Digital: up to 28 Mpts per channel
Waveform acquisition rate up to 110,000 wfms/s
Real time waveform record, replay and analysis Analog: up to 200,000 frames
Digital: up to 64,000 frames
Vertical sensitivity range 1 mV/div to 5 V/div (1 MΩ)
1 mV/div to 1 V/div (50 Ω)
Offset range 1 mV/div to 124 mV/div: ± 1.2 V (50 Ω)
126 mV/div to 1 V/div: ± 12 V (50 Ω)
1 mV/div to 225 mV/div: ± 2 V (1M Ω)
230 mV/div to 5 V/div: ± 40 V (1M Ω)
Vertical resolution 8 bit (analog)
Math Add, Subtract, Multiply, Divide, FFT, editable, logic operations
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 120 W (max.)
Power voltage 100-240 V, 45-440 Hz
Cooling method Fan
Display 9" color LCD (800×480)
Weight 4.8 kg (± 0.2 kg)
Dimensions 440.0 × 218.0 × 130.0 mm

Additional Information

Download RIGOL MSO4054 Data Sheet.

Download RIGOL MSO4054 User Guide.

Video

Youtube video

Youtube video

Youtube video

Youtube video

RIGOL MSO4054 Mixed Signal Oscilloscope Package Contents

  • RIGOL MSO4054 digital oscilloscope (1 pc.)
  • Passive probes (2 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
  • Front cover (1 pc.)
Read more
Description

RIGOL MSO4054 is the new four-channel mixed signal oscilloscope (500 MHz) with 16-channel Logic Analyzer. RIGOL MSO4054 provides up to 110,000 wfms/s waveform acquisition rate.

RIGOL MSO4054 digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 500 MHz
  • 4 channels + 16 channels for Logic Analyzer
  • Real-time sample rate: analog channel up to 4 GSa/s, digital channel up to 1 GSa/s
  • Memory depth: analog channel up to 140 Mpts, digital channel up to 28 Mpts
  • Innovative UltraVision technology
  • Waveform acquisition rate up to 110,000 wfms/s
  • Low noise floor, min. vertical sensitivity is 1 mV/div
  • A variety of Trigger functions
  • Real time waveform record, replay and analysis
  • 9-inch color LCD
  • Standard interface: LAN, USB host and device, AUX, VGA, USB-GPIB (opt.)

RIGOL MSO4054 Mixed Signal Oscilloscope Technical Specifications

Bandwidth 500 MHz
Channels 4 + 16
Real time sample rate Analog: max. 4 GSa/s single channel, 2 GSa/s dual channel
Digital: max. 1 GSa/s per channel
Memory depth Analog: up to 140 Mpts single channel, 70 Mpts dual channel
Digital: up to 28 Mpts per channel
Waveform acquisition rate up to 110,000 wfms/s
Real time waveform record, replay and analysis Analog: up to 200,000 frames
Digital: up to 64,000 frames
Vertical sensitivity range 1 mV/div to 5 V/div (1 MΩ)
1 mV/div to 1 V/div (50 Ω)
Offset range 1 mV/div to 124 mV/div: ± 1.2 V (50 Ω)
126 mV/div to 1 V/div: ± 12 V (50 Ω)
1 mV/div to 225 mV/div: ± 2 V (1M Ω)
230 mV/div to 5 V/div: ± 40 V (1M Ω)
Vertical resolution 8 bit (analog)
Math Add, Subtract, Multiply, Divide, FFT, editable, logic operations
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 120 W (max.)
Power voltage 100-240 V, 45-440 Hz
Cooling method Fan
Display 9" color LCD (800×480)
Weight 4.8 kg (± 0.2 kg)
Dimensions 440.0 × 218.0 × 130.0 mm

Additional Information

Download RIGOL MSO4054 Data Sheet.

Download RIGOL MSO4054 User Guide.

Video

Youtube video

Youtube video

Youtube video

Youtube video

RIGOL MSO4054 Mixed Signal Oscilloscope Package Contents

  • RIGOL MSO4054 digital oscilloscope (1 pc.)
  • Passive probes (2 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
  • Front cover (1 pc.)
Specifications
Number of channels
  • 4-channel
  • with 16 channel logic analyzer
Type
  • desktop
  • mixed-signal
Sample Rate
  • 4 GSa/s
Bandwidth
  • 500 MHz
Screen Size
  • 9,0" TFT LCD
Storage Capacity
  • 10 MB
