Tester for AC and DC voltage (including the three-phase alternating current) measurements, phase of three-phase AC power indicator, on-off test, RCD test.
Availability in stock:
HK
ID: 864107 0.5 kg

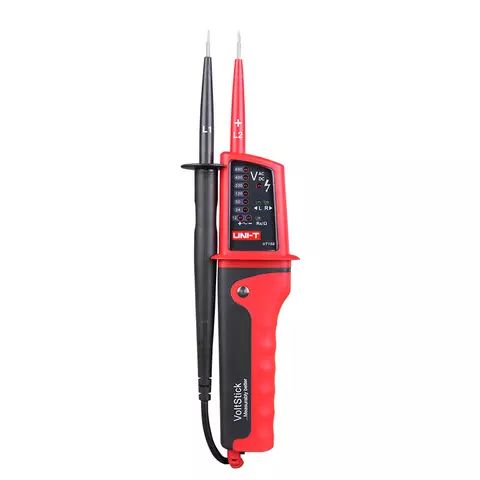

Multifunction Voltage Tester UNI-T UT15B
id: 819432
Multifunction Voltage Tester UNI-T UT15B
Overview
Description
Video
Delivery
Payment
Warranty
USD 23.31
Overview
Video
0.55 kg Warranty: 24 months
A device for AC/DC voltage, continuity and phase rotation tests, for short circuit, positive and negative polarity and single lead (L2) voltage detection. Read more
Buy wholesale and save
You may also like
Description
This device is used for AC/DC voltage, continuity and phase rotation tests, for short circuit, positive and negative polarity and single lead (L2) voltage detection.
Features
- Functions:
- AC/DC voltage measurements
- continuity test
- phase rotation test
- single lead (L2) voltage detection
- short circuit detection
- Autoranging
- Low battery indication
- Positive and negative polarity detection
- Torch
Video
Comparative Specifications
| Model | UT15A | UT15B | UT15C |
|---|---|---|---|
| Short circuit detection | no | yes | yes |
| Display | no | no | LCD (AC/DC), 24V to 690V: ±(3%+5) |
Technical Specifications
| Voltage steps (AC/DC) | 12V: between 0 to 12V LED will illuminate |
| 24V: between 19V ± 2V LED will illuminate | |
| 50V: between 48V ± 6V LED will illuminate | |
| 120V: between 110V ± 20V LED will illuminate | |
| 230V: between 200V ± 20V LED will illuminate | |
| 400V: between 340V ± 30V LED will illuminate | |
| 690V: between 520V ± 30V LED will illuminate | |
| Continuity test | Range 0 to 100kΩ. The continuity LED will illuminate and buzzer will sound. |
| Phase rotation test | 50Hz to 60Hz |
| Single lead (L2) voltage detection | It is intended only as a quick check. 100V to 690V 50Hz to 400Hz |
| Power | 1.5V Battery (AAA) × 2 |
| Dimensions (H × W × D), mm | 275 × 51 × 30 |
| Weight, g | 210 |
Package Contents
- Voltage tester UT15B
- User Manual
Note! Batteries are not included in the package.
