Overview
Made in Japan
2 kg Warranty: 12 months
Fiber identifier that detecs signal in optical fiber with 270 Hz, 1 kHz and 2 kHz frequency, equipped with power meter.
USD 1995.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 1995.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

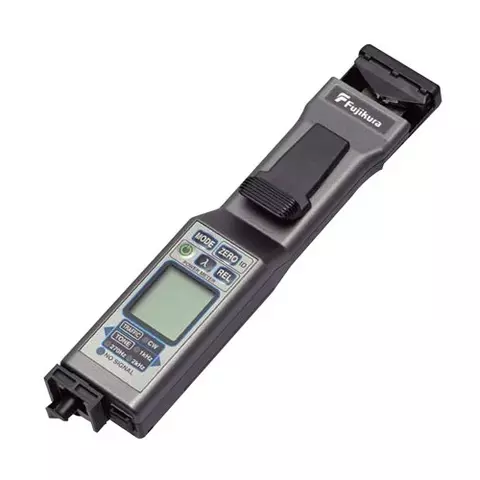

Fujikura FID-25R is a optical fiber identifier that detecs signal in optical fiber with no interruption to signal transmission, with 270 Hz, 1 kHz and 2 kHz frequency. Fujikura FID-25R equipped with optical power meter.

Optical Fiber Identifier Fujikura FID-25R Features

  • Easy access to the target fiber in narrow space
  • Capability for weak tone signal detection over strong traffic signal
  • Wide range optical power meter
  • 15 user-selectable test modes
  • High-sensitive performance for Bend Insensitive Fiber (BIF) identification

Optical Fiber Identifier Fujikura FID-25R Technical Specifications

Applicable fiber
  • single fiber: 0.25 mm
  • ribbon fiber with 2 to 12 fibers
  • optical fiber cord up to 3 mm
Wavelength response 0.9 to 1.7 µm
Power meter - wavelength 1.31 µm, 1.55 µm
Power meter - detectable signal traffic signal, CW light, light signal with modulated tones at 270 Hz, 1 kHz, 2 kHz
Power meter - detectable light power +10 to -60dB at modulated tone
+10 to -40dB at traffic signal and CW light
Power meter - accuracy +/- 0.3 dB at 25 °C
Operating condition -10 to 50 °C, 0 to 95% RH
Power supply 2x AA batteries (1.2 to 1.5 V)
100 to 240 V AC adapter (optional)
Dimensions 40 × 185 × 26 mm
Weight 165 g

Optical Fiber Identifier Fujikura FID-25R Package Contents

  • Fujikura FID-25R optical fiber identifier (1 pc.)
  • Plunger (1 pc.)
  • Protective light shield (1 pc.)
  • Connector head (1 pc.)
  • Soft carrying case (1 pc.)
  • User manual (1 pc.)
Read more
Description

Fujikura FID-25R is a optical fiber identifier that detecs signal in optical fiber with no interruption to signal transmission, with 270 Hz, 1 kHz and 2 kHz frequency. Fujikura FID-25R equipped with optical power meter.

Optical Fiber Identifier Fujikura FID-25R Features

  • Easy access to the target fiber in narrow space
  • Capability for weak tone signal detection over strong traffic signal
  • Wide range optical power meter
  • 15 user-selectable test modes
  • High-sensitive performance for Bend Insensitive Fiber (BIF) identification

Optical Fiber Identifier Fujikura FID-25R Technical Specifications

Applicable fiber
  • single fiber: 0.25 mm
  • ribbon fiber with 2 to 12 fibers
  • optical fiber cord up to 3 mm
Wavelength response 0.9 to 1.7 µm
Power meter - wavelength 1.31 µm, 1.55 µm
Power meter - detectable signal traffic signal, CW light, light signal with modulated tones at 270 Hz, 1 kHz, 2 kHz
Power meter - detectable light power +10 to -60dB at modulated tone
+10 to -40dB at traffic signal and CW light
Power meter - accuracy +/- 0.3 dB at 25 °C
Operating condition -10 to 50 °C, 0 to 95% RH
Power supply 2x AA batteries (1.2 to 1.5 V)
100 to 240 V AC adapter (optional)
Dimensions 40 × 185 × 26 mm
Weight 165 g

Optical Fiber Identifier Fujikura FID-25R Package Contents

  • Fujikura FID-25R optical fiber identifier (1 pc.)
  • Plunger (1 pc.)
  • Protective light shield (1 pc.)
  • Connector head (1 pc.)
  • Soft carrying case (1 pc.)
  • User manual (1 pc.)
