Optical Fiber Identifier Fujikura FID-30R
Overview
Description
Delivery
Payment
Warranty
USD 1950.00
Overview
Made in Japan
2 kg Warranty: 12 months
Device for detecting the presence and direction of traffic without interruption to services. Features an in-built 1310/1490/1550 nm power meter. Read more
USD 1950.00
Buy wholesale and save
Description

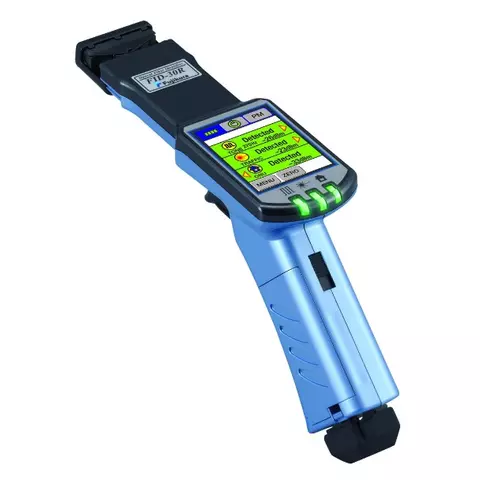

Fujikura FID-30R is an optical fibre identifier (FID) for detecting the presence and direction of traffic without interruption to services. It ensures the correct fibre is disconnected from the network for testing. It is able to detect test tones allowing fibres to be easily identified and traced throughout the network. The FID-30R also features an in-built 1310/1490/1550 nm power meter.
The new identifier series hosts several innovative features such as improved detection sensitivity, colour touchscreen, gigabit passive optical network (GPON) ONU detection and many more.
Features
- World’s highest signal detection sensitivity
- ONU Signal detecting function (requires waveform optimisation)
- Lockable trigger system
- Robust body design
- 2.4" colour touch screen with backlight
Technical Specifications
| Fibre type | Singlemode fibre |
| Sheath / Count | 0.25 mm coating, Ribbon fibre up to 12 fibre, or Fibre cord : 1.1 mm, 1.5 mm, 1.7 mm, 2.0 mm, or 3.0 mm |
| Wavelength range | 900 to 1700 nm |
| Detectable light signals | Traffic signal (CW), Light signal with modulated tones at 270 Hz, 1 kHz, or 2 kHz (square wave 50±10 % duty cycle) |
| Power Meter | |
|---|---|
| Wavelength response | 1310 nm, 1490 nm, 1550 nm |
| Detectable light signals | Traffic signal (CW), Light signal with modulated tones at 270 Hz, 1 kHz, or 2 kHz (square wave 50±10 % duty cycle) |
| Detector Sensitivity | +10 to -60 dBm at modulated tone / +10 to -40 dBm at CW light (traffic signal) |
| Accuracy | Within ± 0.3 dB at room temperature |
| General Specifications | |
| Shock Resistance | 76 cm drop * |
| Operating Conditions | -10 to +50°C , 0 to 95 % RH |
| Storage Conditions | -20 to +60°C , 0 to 95 % RH |
| Power Supply | 1.2 to 1.5 V DC with two AA batteries |
| Battery Life | ~ 8 hours |
| Dimensions, W × H × D | 50 × 115 × 212 mm |
| Weight | 230 g (including battery) |
* Carried out in Fujikura labs in Japan. The test do not guarantee that the product will not be damaged under this condition
Package Contents
- Fujikura FID-30R Optical Fibre Identifier — 1 pc.
- 2.5 mm universal power meter adapter — 1 pc.
- Carrying case — 1 pc.
- Instruction manual (on CD) — 1 pc.
- Quick reference guide — 1 pc.
