Optical Time Domain Reflectometer EXFO MAXTESTER MAX-715B-M2 with IOLM
Overview
Description

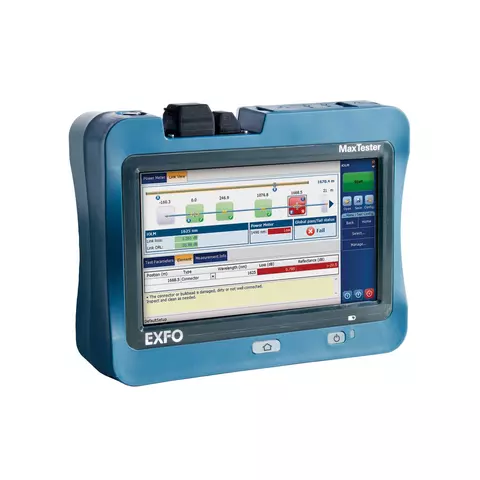

EXFO MAXTESTER MAX-715B-M2 is a rugged, lightweight, and handy OTDR with a 7-inch, outdoor-enhanced touchscreen and tablet-inspired design perfect for singlemode fiber installation. The device is used to determine the signal attenuation in optical fibers, as well as to estimate losses on welded joints, connectors, and macrobends. The OTDR has an intuitive GUI with icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes. The built-in battery provides up to 12 hours of continuous operation.
EXFO MAXTESTER MAX-715B-M2 is iOLM-ready (it is an application designed to simplify OTDR testing by eliminating the need to configure parameters, and/or analyze and interpret multiple complex OTDR traces). Fully featured, entry-level, compact, and lightweight, this device is ideal for optical work in the field.
Features
- Handy, lightweight, powerful, tablet-like device;
- 7-inch outdoor-enhanced touchscreen;
- 12 hour autonomy;
- Dynamic range of 30/28/28 dB;
- Tamper-proof password protection;
- Rugged design built for outside plant;
- iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
Application
- FTTx last-mile installation and troubleshooting.
- Short access network testing.
- FTTA-fiber DAS installations.
- CATV/HFC network testing.
Technical Specifications
| Wavelength | 1310/1550/1625 nm |
| Dynamic range | 30/28 dB 28 dB (1625 nm) |
| Event dead zone | 1 m |
| Attenuation dead zone | 4 m |
| Distance range | 0.1 – 160 km |
| Pulse width | 5 ns – 20 000 ns |
| Linearity | ±0.05 dB |
| Loss threshold | 0.01 dB |
| Loss resolution | 0.001 dB |
| Sampling resolution | 0.04 – 5 m |
| Sampling points | up to 256 000 |
| Distance uncertainty | ±(0.75 + 0.005 % × distance + sampling resolution) |
| Measurement time | user-defined |
| Reflectance accuracy | ±2 dB |
| Typical real-time refresh | 3 Hz |
| Interfaces | two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
| Display | 7-in (178 mm) outdoor-enhanced touchscreen, 800 × 480 TFT |
| Storage | 2 GB internal memory (20 000 OTDR traces, typical) |
| Batteries | rechargeable lithium-polymer (12 hours of operation) |
| Power supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 W minimum |
| Dimensions | 155 mm × 200 mm × 68 mm |
| Weight | 1.3 kg |
User Manual
Download EXFO MAX-715B-M2 user manual.
Package Contents
- Optical Time Domain Reflectometer EXFO MAXTESTER MAX-715B-M2 — 1 pc.
- Battery GP-2209 — 1 pc.
- Power adapter/charger GP-2146 — 1 pc.
- User Manual — 1 pc.
